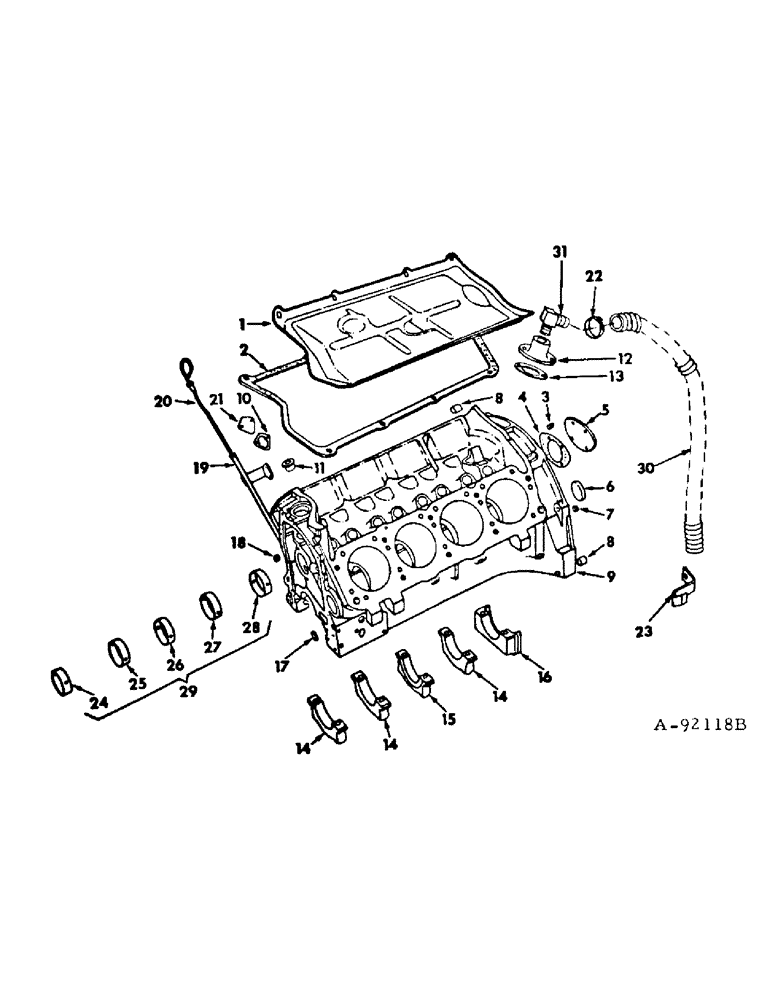

Запчасти Case IH V-392 (C-08) - CRANKCASE AND RELATED PARTS

1

151100R12

COVER ASSY, tappet

1шт.

282245C1

SCREW

BOLT, tappet cover

8шт.

131042H

WASHER

steel

8шт.

2

384711C2

GASKET

tappet cover

1шт.

3

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

2шт.

4

151064R4

GASKET

cover

1шт.

5

151065R1

COVER, camshaft rear bearing

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

70128R1

PLUG,Cup, 1 5/8"

expansion

4шт.

7

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto. sq-soc drain

1шт.

8

133452R1

SLEEVE

DOWEL, sleeve

6шт.

9

151339R61

CRANKCASE ASSY, engines with serial no. 1015242 and below

1шт.

Composed of (1) ball 220274R1, (1) bearing 217081R1, bushing (NSS), bushing (NSS), bushing (NSS), bushing (NSS), bushing (NSS), (3) cap 151028R1, (1) cap 151029R1, (1) cap 151340R1, (1) cover 151065R1, (1) crankcase (NSS), (4) dowel 133452R1, (1) gasket 151064R4, (6) plug (NSS), (1) plug 172531, (4) plug 379279C1, (4) plug 444571, (2) plug 444576, (2) plug 444776, (1) plug 444782, (4) screw 179816, (10) screw 151036R1, (4) washer 114605, (1) washer 151341R1

1шт.

379279C1

PLUG

water jacket core

4шт.

172531

PLUG,Exp, 3/4"

main oil gallery F

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 znp auto. sq-hd pipe

4шт.

220274R1

BALL, lead

1шт.

444619

PIPE CLAMP

PLUG, 1/4-18 znd auto. hex-hd drain and filler

2шт.

9

436782C92

CRANKCASE ASSY, engines with serial no. 1015243 and above

1шт.

Composed of (1) ball 220274R1, (1) bearing 217081R1, (1) bushing 151031R1 (NSS), (1) bushing 151032R2 (NSS), (1) bushing 151033R2 (NSS), (1) bushing 151034R2 (NSS), (1) bushing 151035R2 (NSS), (3) cap 309203C1, (1) cap 309204C1, (1) cap 309205C1, (1) cover 151065R1, (1) crankcase 434507C2 (NSS), (4) dowel 133452R1, (1) gasket 151064R4, (1) plug 173531, (6) plug 379278C1 (NSS), (4) plug 379279C1, (4) plug 444571, (2) plug 444576, (2) plug 444776, (1) plug 444782, (1) rivet 359182C1 (NSS), (4) screw 179816, (

1шт.

379279C1

PLUG

water jacket core

4шт.

172531

PLUG,Exp, 3/4"

main oil gallery

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 znp auto. sq-hd pipe

4шт.

220274R1

BALL, lead

1шт.

444619

PIPE CLAMP

PLUG, 1/4-18 znd auto. hex-hd drain and filler

2шт.

10

128868H

GASKET

pump mounting cover

1шт.

11

217081R1

BEARING, distributor thrust

1шт.

12

544715R1

TUBE ASSY, crankcase ventilation, replaces 533841R1 and nipple 171822R1

1шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 C-z hex-hd cap

2шт.

13

151794R1

GASKET

vent tube flange

1шт.

14

151028R1

CAP, main bearing, partially finished see service manual, engines with serial no. 1015242 and below

3шт.

14

309203C1

CAP, main bearing, partially finished see service manual, engines with serial no. 1015243 and above

3шт.

151036R1

SCREW,Hex, 1/2" - 13 x 3.062"

cap bearing cap

6шт.

151541R1

WASHER, bearing cap screw

6шт.

15

151340R1

CAP, main bearing thrust #3, partially finished see service manual, engines with serial no. 1015242 and below

1шт.

15

309204C1

CAP, main bearing thrust #3, partially finished see service manual, engines with serial no. 1015243 and above

1шт.

151036R1

SCREW,Hex, 1/2" - 13 x 3.062"

cap bearing cap

2шт.

151541R1

WASHER, bearing cap screw

2шт.

16

151029R1

CAP, rear main bearing, partially finished see service manual, engines with serial no. 1015242 and below

1шт.

16

309205C1

CAP, rear main bearing, partially finished see service manual, engines with serial no. 1015243 and above

1шт.

151036R1

SCREW,Hex, 1/2" - 13 x 3.062"

cap bearing cap

2шт.

151541R1

WASHER, bearing cap screw

2шт.

17

172531

PLUG,Exp, 3/4"

3/4 expansion

1шт.

18

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto. sq-soc drain

2шт.

19

151329R12

TUBE ASSY, oil level gauge

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

403513R1

DIPSTICK

GAUGE ASSY, oil level

1шт.

21

266199R1

COVER, fuel pump mounting

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

313317R1

HOSE CLAMP,#12, 3/4", Spring

CLAMP, hose

1шт.

23

394271R1

CLIP

hose

1шт.

24

151660R1

BUSHING, camshaft front

1шт.

25

151661R2

BUSHING, camshaft 2nd

1шт.

26

151662R2

BUSHING, camshaft 3rd

1шт.

27

151663R2

BUSHING, camshaft 4th

1шт.

28

151664R2

BUSHING, camshaft rear

1шт.

29

151665R93

BRACKET

SET, camshaft bushing

1шт.

30

HOSE, ventilation, use 48 inches of 3/4 ID x 1-1/8 OD heater hose from a 50 ft roll marked, 364360C1

1шт.

31

171822R1

NIPPLE, LUBE

NIPPLE, vent hose

1шт.
