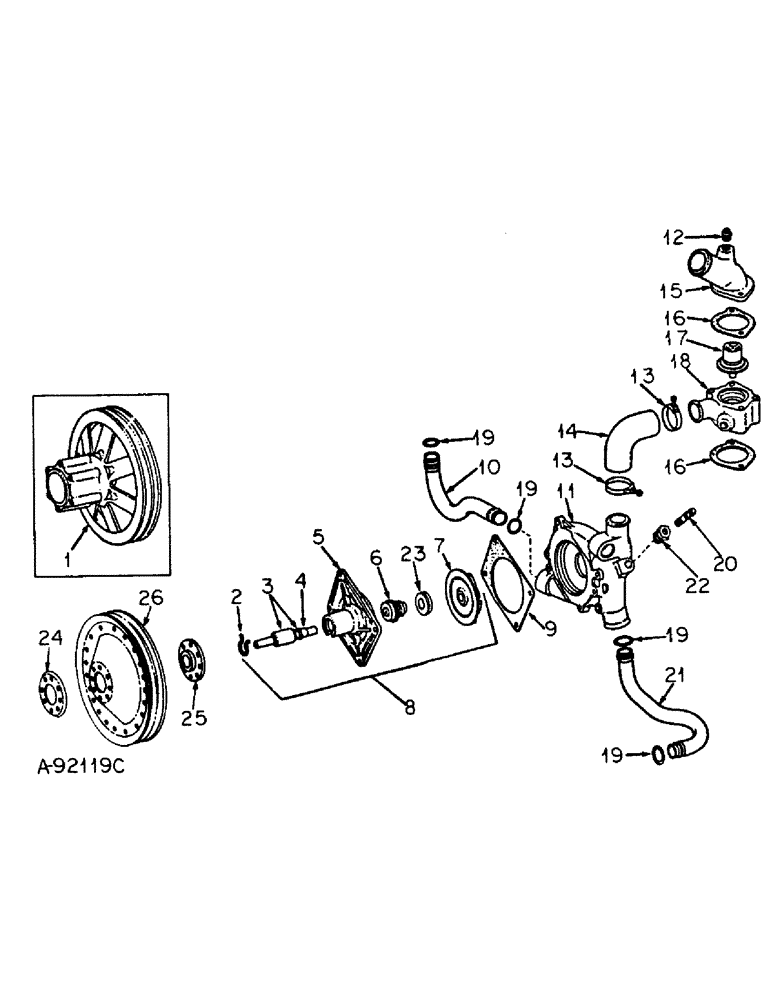

Запчасти Case IH V-345 (B-07) - THERMOSTAT AND WATER PUMP

270918C93

WATER PUMP

PUMP ASSY, water

1шт.

1

403007R1

PULLEY, cast iron, six bolt mounting

1шт.

1

PULLEY, sheet metal, eight bolt mounting, on orders for 531945R1, furnish package, 56673C91

1шт.

2

102069H

RING

retaining, 1/32

1шт.

2

228275R1

SNAP RING,1.188", Int, #118

RING, retaining, 3/64

1шт.

3

403501R91

BEARING

SHAFT AND BEARING W/SLINGER

1шт.

4

151207R1

SLINGER

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING, water pump, not serviced separately

1шт.

6

73296R93

SEAL

ASSY

1шт.

7

417732C1

IMPELLER, on orders 215604R2 furnish impeller 417732R1 and seat assy 421797C1

1шт.

8

403005R92

HOUSING

AND IMPELLER, bearing

1шт.

9

151304R1

GASKET

1шт.

10

151245R91

TUBE

PIPE ASSY, water even bank

1шт.

227627R2

CLAMP

water pipe

1шт.

11

151209R21

BODY ASSY

1шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe

1шт.

13

39177H

CLAMP

hose

2шт.

14

897554R1

HOSE

, Serial Range: housing-pump

1шт.

15

897556R11

ELBOW ASSY, water outlet

1шт.

16

151241R1

GASKET

thermostat

2шт.

17

890096R91

THERMOSTAT

170 deg

1шт.

17

890095R91

CASE

THERMOSTAT, 180 deg

1шт.

18

897517R11

HOUSING ASSY, thermostat

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

356005R1

O-RING,1.109" ID x 0.139" Width

SEAL, ring

4шт.

20

169193R1

PIPE

NIPPLE, oil cooler hose

1шт.

21

216304R93

LINE

PIPE ASSY, water odd bank

1шт.

227627R2

CLAMP

water pipe

1шт.

22

144216

BUSHING,1/2" NPT Male x 3/8" NPT Fem

1/2 x 3/8 zn reducing

2шт.

23

421797C1

SEAT ASSY

1шт.

24

56403C1

CUP, pulley hub reinforcement

1шт.

25

531890R1

HUB

pulley, used w/sheet metal pulley only

1шт.

26

56673C91

PULLEY W/CUP, 56403C1, fan

1шт.
