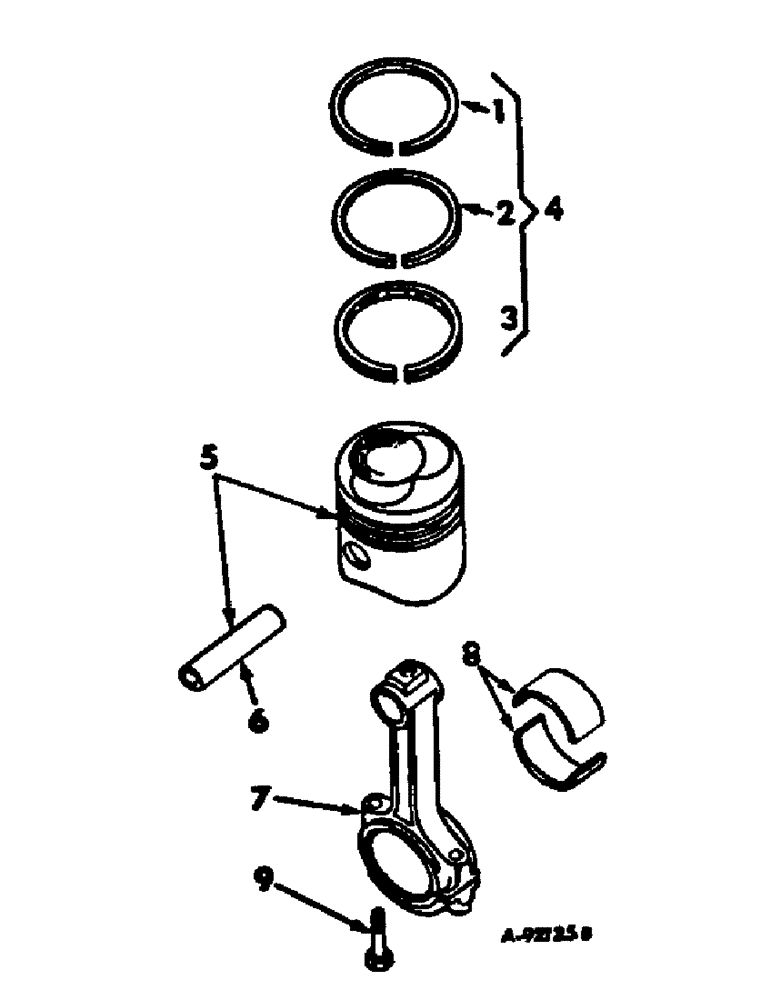

Запчасти Case IH V-345 (B-06) - CONNECTING RODS AND PISTONS

1

NSS

NOT SOLD SEPARAT

RING, compression, top or first groove

8шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove

8шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove

8шт.

4

151867R92

RING, SET

RING SET, piston, consists of two compression and one oil ring, std and .010 O/S

8шт.

4

151869R92

RING, SET

RING SET, piston, consists of two compression and one oil ring, .020 O/S

8шт.

4

151870R92

RING SET, piston, consists of two compression and one oil ring, .030 O/S

8шт.

4

151871R92

RING, SET

RING SET, piston, consists of two compression and one oil ring, .040 O/S

8шт.

5

216160R11

PISTON

ASSY, standard

8шт.

5

216161R11

PISTON ASSY, .010 O/S

8шт.

5

216162R11

PISTON ASSY, .020 O/S

8шт.

5

216163R11

PISTON ASSY, .030 O/S

8шт.

5

216164R11

PISTON ASSY, .040 O/S

8шт.

6

151085R1

PIN, piston

8шт.

7

216114R21

ROD

W/TWO BOLTS, 280318R1 and two wahers, 328278C1

8шт.

8

151043R21

BEARING

ASSY, connecting rod, 2 havles, std

8шт.

8

151907R21

BEARING

ASSY, connecting rod, 2 halves, .010 U/S

8шт.

8

151908R21

BEARING ASSY, connecting rod, 2 halves, .020 U/S

8шт.

8

151909R21

BEARING ASSY, connecting rod, 2 halves, .030 U/S

8шт.

8

151912R92

KIT

BEARING SET, connecting rod, std, consists of eight bearings, 151043R21

1шт.

8

151914R92

KIT

BEARING SET, connecting rod, .010 U/S, consists of eight bearings, 151907R21

1шт.

8

151915R92

BEARING SET, connecting rod, .020 U/S, consists of eight bearings, 151908R21

1шт.

8

151916R92

BEARING SET, connecting rod, .030 U/S, consists of eight bearings, 151909R21

1шт.

9

280318R1

BOLT, connecting rod, replaces 70013R1

16шт.

328278C1

WASHER

16шт.
