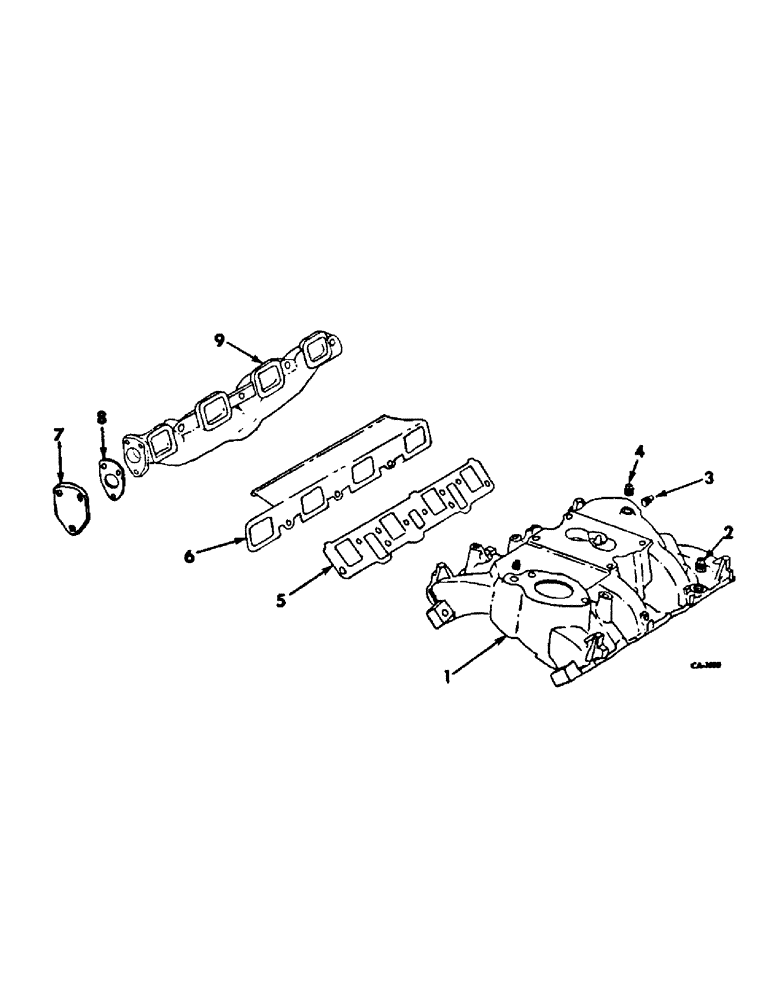

Запчасти Case IH V-345 (B-30) - EXHAUST SYSTEM

1

217948R92

MANIFOLD

ASSY, intake

1шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3/8 NC x 1 hex-hd

8шт.

151225R1

SCREW,Hex, 3/8" - 16 x 1 1/4"

BOLT, 3/8 NC x 1-1/4 hex-hd

4шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 NC x 1-1/2 hex-hd

4шт.

1597Q

WASHER, 3/8 flat

16шт.

681257R1

PLATE

PLUG, 7/8 expansion

2шт.

681258R1

PLATE

PLUG, 1-1/8 expansion

1шт.

2

103879

PLUG, 3/8 NPT pipe

1шт.

3

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

4

103878

PLUG

1/4 sq-hd pipe

1шт.

5

151469R2

MANIFOLD GASKET

intake manifold, gasoline

2шт.

5

230777R1

GASKET, intake manifold, LP Gas

2шт.

6

531844R2

MANIFOLD GASKET

exhaust manifold

1шт.

7

531846R1

COVER, exhaust manifold eng, used w/machines built, Serial Range: prior-1974

2шт.

159689R1

WASHER

WASHER, tab lock

6шт.

531847R1

BOLT

exhaust manifold end cover

6шт.

7

60042C1

SHIELD ASSY, exhaust manifold heat, used w/machines built 1974 and since

2шт.

127738

SCREW, no. 10 x 3/8 C-Z metallic drive round head

4шт.

8

531845R1

SHIM

GASKET, exhaust manifold end

2шт.

9

531745R1

MANIFOLD

exhaust, used w/machines built, Serial Range: prior-1974

2шт.

151225R1

SCREW,Hex, 3/8" - 16 x 1 1/4"

BOLT, 3/8 NC x 1-1/4 hex-hd

2шт.

151364R1

SCREW,Hex, 3/8" - 16 x 2"

BOLT, 3/8-16 x 2 hex-hd cap

4шт.

105580H

BOLT

3/8 NC x 3-1/4 hex-hd

4шт.

159689R1

WASHER

WASHER, tab lock

8шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga, exhaust manifold mtg

2шт.

9

59653C1

MANIFOLD, exhaust, used w/machines built 1974 and since

2шт.

151364R1

SCREW,Hex, 3/8" - 16 x 2"

BOLT, 3/8-16 x 2 hex-hd cap

10шт.

159689R1

WASHER

WASHER, tab lock

8шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga, exhaust manifold mounting

2шт.

118775

WASHER,3/8" x 13/16" x .065"

.406 x .812 x .051 flat PHC

2шт.
