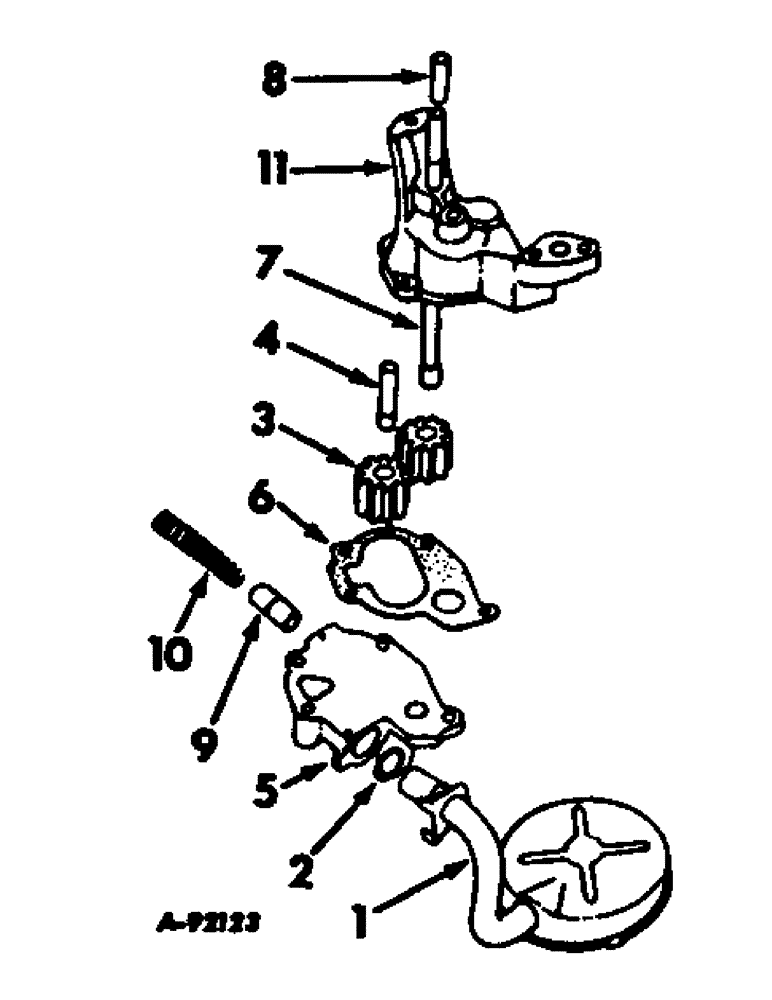

Запчасти Case IH V-345 (B-28) - OIL PUMP

151075R94

PUMP ASSY, oil, consist of ref nos. 3 through 11

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

1

872928R92

SCREEN ASSY

1шт.

2

465597C1

RING

SEAL, oil ring

1шт.

3

151078R1

GEAR, pump drive/idler

2шт.

4

35647H

SHAFT

oil pump idler

1шт.

5

890315R2

COVER ASSY, pump, replaces 151890R92

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

151079R2

GASKET

oil pump

1шт.

7

151077R11

SHAFT ASSY, pump drive

1шт.

8

151084R2

SLEEVE, oil pump shaft

1шт.

9

151081R1

VALVE, relief

1шт.

10

890316R1

SPRING

relief valve

1шт.

151083

WASHER, special

1шт.

137195

PIN, 1/8 x 1-1/4 cot.

1шт.

11

NSS

NOT SOLD SEPARAT

BODY, pump, not serviced separately

1шт.
