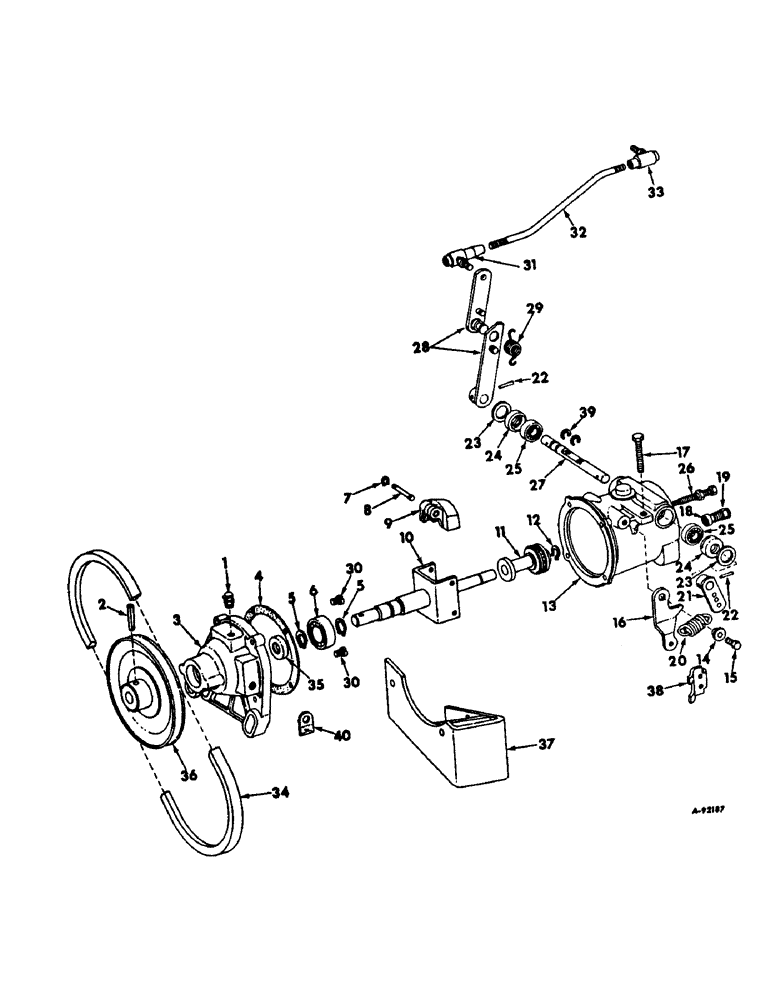

Запчасти Case IH V-345 (B-26) - GOVERNOR AND CONNECTIONS

403010R93

GOVERNOR

ASSY, hoof products, consists of all reference nos. except 31, 32, 33, 34 and 37, optional with 403503R91

1шт.

403503R91

GOVERNOR ASSY, Pierce Governor Co., service parts not available at time of printing, optional with 403010R91

1шт.

181365

BOLT,Hex, 3/8" - 24 x 1 1/8", Gr 5

SCREW, 3/8-24 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

406561R1

WASHER AND LOCATOR

1шт.

1

FOR444613

PLUG

1/8-27 C-Z auto hex-hd pipe, replaces oil filler, 406231R1

2шт.

2

618638R1

PIN,3/16" x 1 1/8", Coiled

pulley to shaft 3/16" x 1 1/8", Coiled

1шт.

3

406239R1

COVER

1шт.

271479

DOOR

SCREW, 12-24 x 3/8 C-Z hex-hd mach

4шт.

406219R1

WASHER, cover to body lock

4шт.

4

406223R1

GASKET

, Serial Range: cover-body

1шт.

5

382627R1

SNAP RING,#59, Ext

Ring, Snap, #59, Ext

2шт.

6

406237R91

BEARING, front main

1шт.

7

626907C1

RING, retaining pivot pin

2шт.

8

406224R1

PIN

flyweight pivot

2шт.

9

406225R1

FLYWEIGHT ASSY

2шт.

10

61549C1

SHAFT ASSY, main, will work for 406226R1 by also ordering pulley, 61550C1

1шт.

11

406227R1

SLEEVE, thrust

1шт.

12

213262R1

SNAP RING,#37, Ext

Ring, Snap, , thrust sleeve #37, Ext

1шт.

13

406232R91

HOUSING ASSY

1шт.

14

406212R1

BUSHING, Serial Range: lever-body

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

155547

WASHER, 1/4 int-tooth lock

1шт.

16

406213R1

LEVER, constant speed

1шт.

17

406211R1

SCREW, speed adjusting

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 hex.

1шт.

18

309209R91

NEEDLE BEARING

rear main

1шт.

19

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8-27 brass auto hex-hd pipe, will work for 406222R1

1шт.

20

527753R1

SPRING, governor

1шт.

21

406238R1

LEVER, sensitivity

1шт.

22

20948R1

PIN,1/8" x 5/8", Coiled

2шт.

23

477242R1

WASHER

13/32 x 1 x 22 ga C-Z

2шт.

24

406215R91

SEAL, rocker shaft oil

2шт.

25

406235R91

BEARING, rocker shaft

2шт.

26

406230R1

SCREW ASSY, bumper

1шт.

27

406216R1

SHAFT, rocker

1шт.

28

406214R91

LEVER AND HUB ASSY

1шт.

29

406217R1

SPRING, torsion

1шт.

30

225576

SCREW, 1/4-28 x 3/8 C-Z slt-fil-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

276835R91

BALL JOINT,1/4" - 28 x 1"

JOINT, 1/4-28 C-Z ball, governor end

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

403504R1

ROD, gov to carburetor, gasoline

1шт.

32

527734R1

ROD, gov to carburetor, LP Gas

1шт.

33

304164R91

JOINT

1/4-28 C-Z snap-in ball, carburetor end

1шт.

34

532031R2

V-BELT,0.38" W x 52.48" L

Governor, will work for 403505R2 0.38" W x 52.48" L

1шт.

35

406236R91

OIL SEAL

main shaft oil

1шт.

36

61550C1

PULLEY, governor drive, will work for 406220R1 by also ordering shaft, 61549C1

1шт.

37

404148R1

BRACKET ASSY, governor mounting

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

38

406229R1

LEVER, rocker

1шт.

406228R1

SCREW W/LOCK WASHER

2шт.

39

406218R1

RETAINER, Serial Range: bearing-shaft

2шт.

406233R1

WASHER, 17/64 x 5/8 x .030 CDP

1шт.

40

406221R1

PLATE, oil level

1шт.
