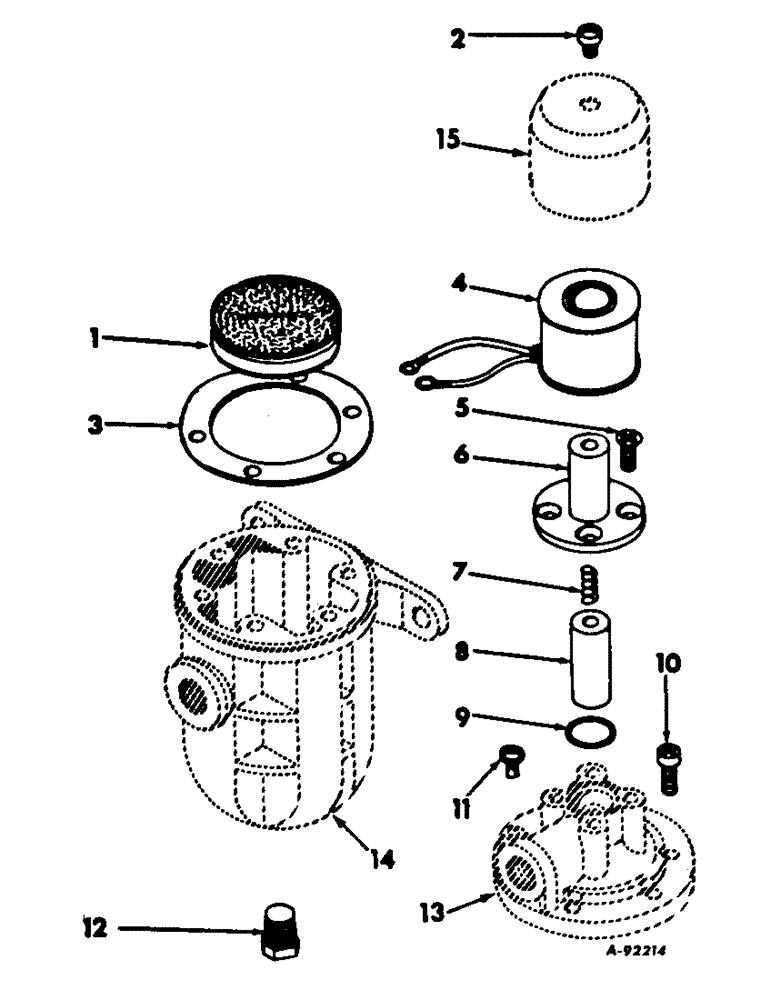

Запчасти Case IH V-345 (B-25) - FUEL FILTER

243698R91

FILTER ASSY, fuel

1шт.

1

166720R91

ELEMENT ASSY, filter

1шт.

2

132023

TENSIONER

SCREW, no. 10 NC x 1/4 fil-hd

1шт.

3

166719R1

GASKET, body

1шт.

4

166725R91

COIL, assy

1шт.

5

155937

SCREW,Cross Flat Hd, #10 - 24 x 1/2"

4шт.

6

868561R1

TUBE, center

1шт.

7

166723R1

SPRING, plunger

1шт.

8

166722R1

PLUNGER

1шт.

9

166721R1

SEAL

1шт.

10

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

6шт.

11

436691

SCREW, no. 8 NC x 1/4 terminal pan-hd

1шт.

12

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8 drain pipe hex-hd

1шт.

13

NSS

NOT SOLD SEPARAT

COVER, coil assy, not serviced separately

1шт.

14

NSS

NOT SOLD SEPARAT

BODY ASSY, fuel filter, not serviced separately

1шт.

14

NSS

NOT SOLD SEPARAT

COVER, body, not serviced separately

1шт.
