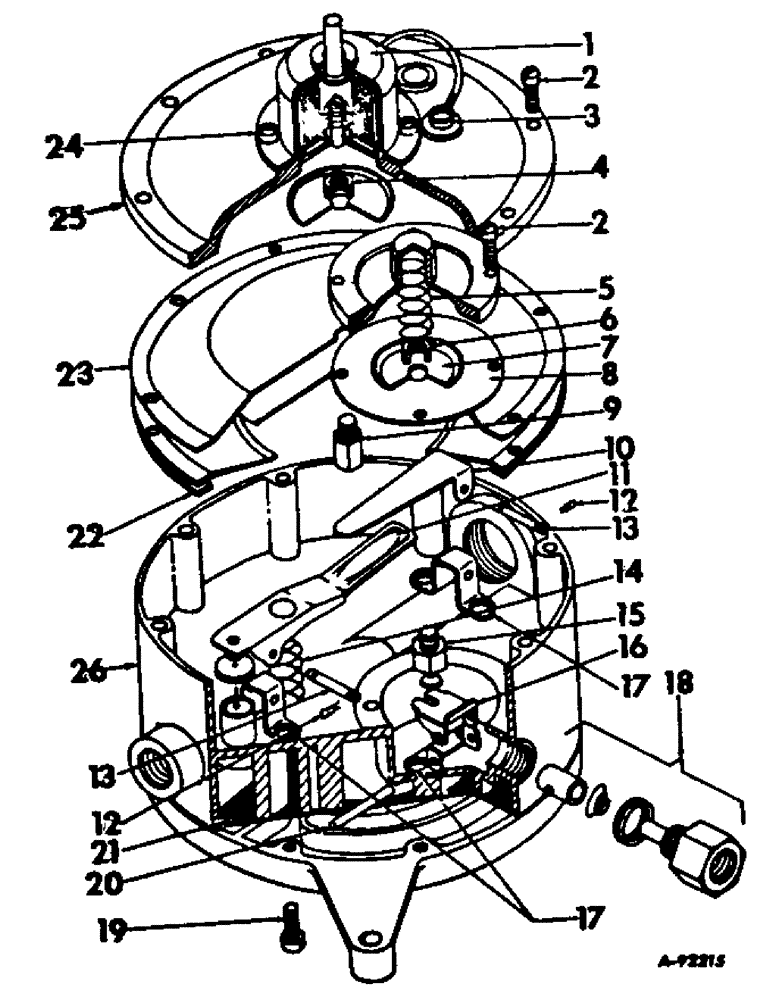

Запчасти Case IH V-345 (B-24) - FUEL REGULATOR, LP GAS

406306R91

REGULATOR, assy

1шт.

1

166717R91

VALVE

SOLENOID, primer

1шт.

2

120687

LOCK SCREW,Sl Fil Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 C-Z slt-fil-hd mach

10шт.

3

436691

SCREW, 8-32 x 1/4 C-Z slt-pan-hd mach

1шт.

4

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

5

166710R1

SPRING, diaphragm

1шт.

6

166709R1

NUT, diaphragm link

1шт.

7

166708R1

PLATE, diaphragm

1шт.

8

166707R1

DIAPHRAGM

1шт.

9

166716R1

BUTTON, diaphragm

1шт.

10

166714R1

LEVER, compound

1шт.

11

166712R91

LEVER, w/seat, low pressure

1шт.

12

148145

CLIP, pin

4шт.

13

166713R1

PIN, lever

2шт.

14

166711R1

SPRING, low pressure lever

1шт.

15

166706R1

LINK, lever

1шт.

16

166704R1

LEVER, valve

1шт.

17

122159

HOUSING

SCREW, no. 8 NC x 1/4 rd-hd

6шт.

18

166703R91

VALVE ASSY, hi-pressure

1шт.

19

132046

SCREW, no. 10 NC fil-hd

9шт.

20

166705R1

PIN, valve lever

1шт.

21

166701R1

GASKET, back

1шт.

22

166702R1

GASKET, diaphragm

1шт.

23

166715R1

DIAPHRAGM

1шт.

24

132023

TENSIONER

SCREW, no. 10 NC x 1/4 fil-hd

2шт.

25

NSS

NOT SOLD SEPARAT

COVER, not serviced separately

1шт.

26

NSS

NOT SOLD SEPARAT

BODY, not serviced separately

1шт.

166718C91

PACKAGE, fuel regulator repair

1шт.
