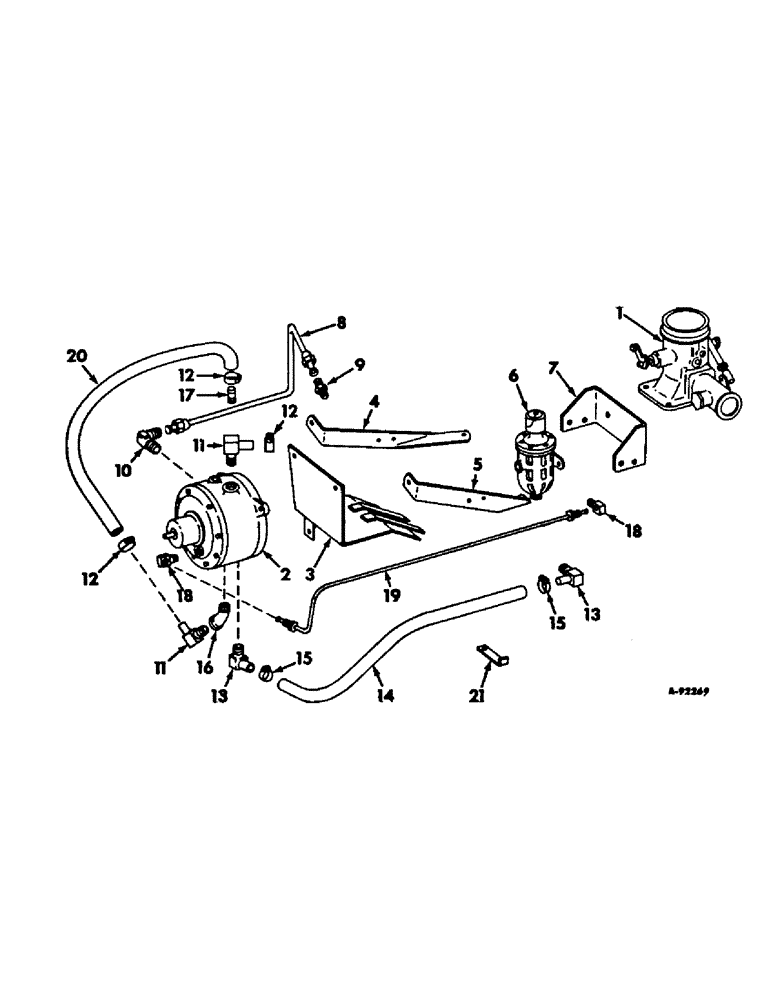

Запчасти Case IH V-345 (B-23) - FUEL REGULATOR AND CONNECTIONS

1

404955R91

CARBURETOR ASSY, LP Gas, for components see list of parts under details of LP Gas carburetor

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

2

406306R91

REGULATOR ASSY, fuel, for components see list of parts under details of LP gas fuel regulator

1шт.

181573

SCREW,Hex, 1/4" - 28 x 1 1/4"

1/4-28 x 1-1/4 znd hex-hd cap

3шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 C-Z hex.

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

3шт.

3

303108C11

PLATE ASSY, LPG converter mounting

1шт.

4

303107C1

BRACKET, converter rear mounting

1шт.

5

303106C1

BRACKET, converter front mtg

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

6

243698R91

FILTER ASSY, fuel, for components see list of parts under details of fuel strainer

1шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 znd hex-hd cap

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/2-28 C-Z hex.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

227551R1

BRACKET, LPG fuel strainer mtg

1шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 znd hex-hd cap

4шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/2-28 C-Z hex.

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

PIPE ASSY, fuel strainer to regulator, use 14 in. of 3/8 OD copper tubing from 50 ft. roll marked, 995063R1, 10-1/2 in. of insulating loom from 100 ft roll marked 995074R1, and 2, 118511R1, nuts

1шт.

9

118750

CONNECTION

CONNECTOR, 1/4-18 brs flared tube

1шт.

10

109563R1

ELBOW

90 deg flared tube

1шт.

11

864456R1

NIPPLE, LUBE

ELBOW, converter coolant 90 deg

2шт.

12

168802H1

HOSE CLAMP

CLAMP, hose

3шт.

13

171816R1

ELBOW, fuel hose 90 deg

1шт.

14

406307R1

HOSE, coverter to carburetor fuel inlet

1шт.

15

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

2шт.

16

144119

ADAPTER

ELBOW, 3/8 znp 45 deg pipe street

1шт.

17

169193R1

PIPE

NIPPLE, converter coolant inlet

1шт.

18

137422

ELBOW

1/8-27 brs 90 deg inverted

1шт.

19

TUBE ASSY, converter to carburetor balance, use 24 in. of 5/16 OD copper tubing from 50 ft. roll marked, 995062R1, and 2, 142427, or, 137398, nuts

1шт.

20

HOSE, converter coolant inlet, use 14 in. of 5/8 ID heater hose from 50 ft. roll marked, 364359C1

1шт.

21

405173R1

BRACKET, ignition cable, long

1шт.
