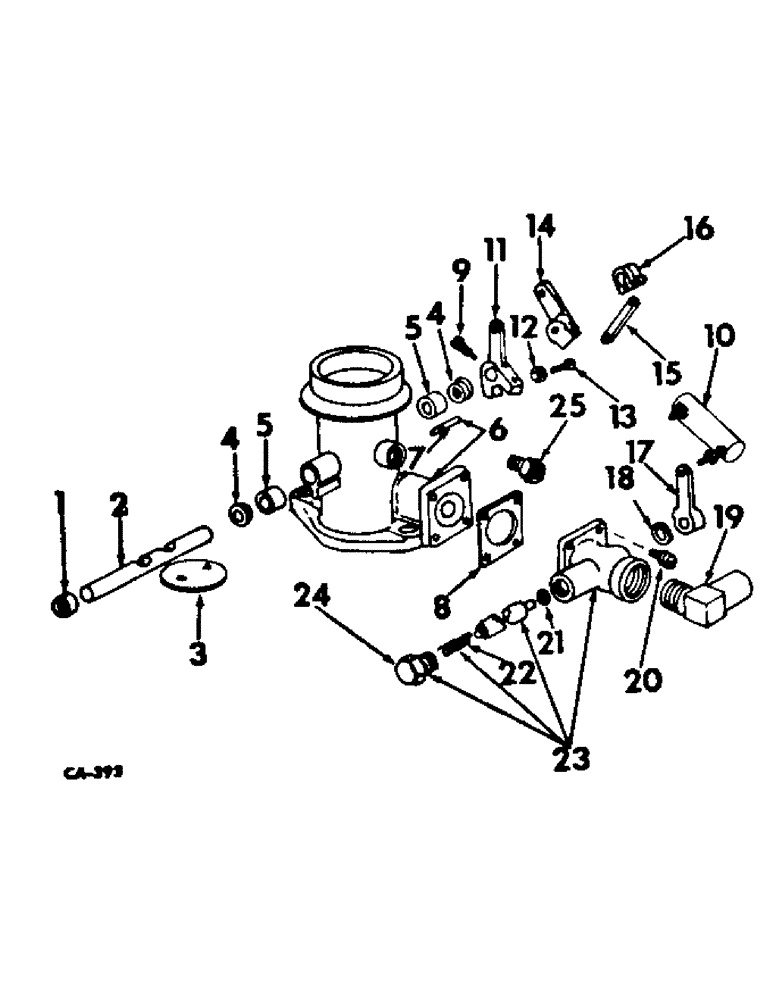

Запчасти Case IH V-345 (B-22) - CARBURETOR

404955R91

CARBURETOR ASSY, LP Gas

1шт.

1

528064R1

RETAINER, throttle shaft seal

1шт.

166699R1

SCREW, pin

1шт.

2

528061R1

SHAFT, throttle

1шт.

155578

SCREW, 8-32 x 3/8 slt rd hd mach

2шт.

3

528063R1

PLATE, throttle 20 deg

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, throttle shaft, not serviced separately, part of gasket package

2шт.

5

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, throttle shaft

2шт.

6

NSS

NOT SOLD SEPARAT

BODY ASSY, throttle, not serviced separately

1шт.

7

17145R1

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Throttle stop 3/16" x 3/4", Slotted

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET, metering nozzle, not serviced separately, part of gasket package

1шт.

9

166699R1

SCREW, pin

1шт.

10

183938R92

LINK ASSY, metering, Serial Range: valve-throttle

1шт.

11

528065R1

VALVE LEVER AND STOP, throttle

1шт.

12

528067R1

NUT, throttle stop screw tension

1шт.

13

528066R1

SCREW, throttle stop

1шт.

14

528068R1

LEVER ASSY, throttle shaft

1шт.

15

528069R1

LEVER, decelerator

1шт.

16

528070R1

CLEVIS ASSY, decelerator lever

1шт.

17

528366R1

LEVER, metering valve

1шт.

166699R1

SCREW, pin

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL, metering valve outer crane packing, not serviced separately, part of gasket package

1шт.

19

171815R1

ELBOW, hose connection

1шт.

20

193445

SCREW W/SPRING LOCK WASHER, 10-24 x 9/16 slt-fil-hd mach

4шт.

21

528073R1

JET, fuel metering

1шт.

22

528072R1

SPRING, metering valve

1шт.

23

528074R91

VALVE ASSY, metering

1шт.

24

183935R1

RETAINER, metering valve

1шт.

25

113935

PLUG, 1/4 brs slt-hdls pipe

1шт.

528108R91

PACKAGE, carburetor gasket

1шт.
