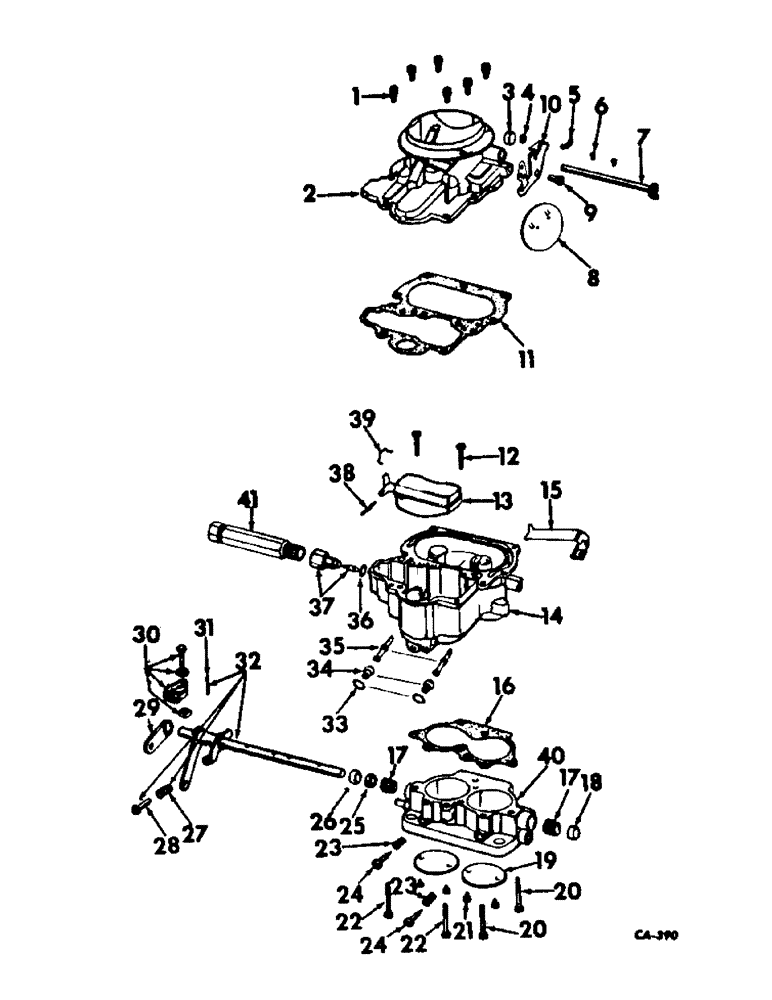

Запчасти Case IH V-345 (B-21) - CARBURETOR

403009R94

CARBURETOR

ASSY, gasoline

1шт.

1

23943R1

SPLIT PIN/SAFETY PIN

SCREW W/SPRING LOCK WASHER, 10-24 x 5/8 C-Z slt-fil-hd mach

6шт.

2

NSS

NOT SOLD SEPARAT

BODY, air intake, not serviced separately

1шт.

3

368358R2

RUBBER SEAL

choke shaft

1шт.

4

529131R1

RETAINER, choke shaft seal

1шт.

5

529132R1

SPRING, choke return

1шт.

6

529129R1

SCREW, choke plate

2шт.

7

529116R1

LEVER AND SHAFT CHOKE

1шт.

8

529117R1

PLATE, choke

1шт.

9

529119R1

SCREW, choke lever

1шт.

10

529118R91

LEVER ASSY, choke w/screw

1шт.

18269R1

SCREW

10-32 x 5/16 C-Z slt hex-hd mach

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET, air horn, not serviced separately, part of gasket package

1шт.

12

529115R1

TUBE ASSY, idle .051

2шт.

13

529112R1

FLOAT AND LEVER

1шт.

14

NSS

NOT SOLD SEPARAT

BOWL, fuel, not serviced separately

1шт.

15

529120R91

BRACKET AND CLIP W/SCREW AND NUT, choke

1шт.

22616R1

SCREW, 8-32 x 5/8 CDP slt-hex-hd mach

1шт.

134536

BOTTOM

NUT, 8-32 C-Z sq mach screw

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET, main body, not serviced separately, part of gasket package

1шт.

17

529104R1

BUSHING, throttle shaft

2шт.

18

392419R1

PLUG, throttle shaft cup

1шт.

19

529109R1

PLATE, throttle

2шт.

20

529102R1

SCREW W/SPRING LOCK WASHER, 12-24 x 1-5/16 C-Z slt-fil-hd mach

2шт.

21

19582R91

SCREW W/SPRING LOCK WASHER, 5-40 x 5/16 C-Z slt-rd-hd mach

4шт.

22

529103R1

SCREW W/SPRING LOCK WASHER, 10-24 x 1-5/16 C-Z slt-fil-hd mach

2шт.

23

529111R1

SPRING, idle adjusting screw

2шт.

24

529110R1

SCREW, idle adjusting

2шт.

25

392418R1

SEAL

throttle shaft

1шт.

26

392389R1

RETAINER, throttle shaft seal

1шт.

27

529108R1

SPRING, throttle stop spring

1шт.

28

529107R1

SCREW, throttle stop

1шт.

29

404720R1

LEVER, floating

1шт.

30

404718R91

STOP ASSY, floating lever

1шт.

31

17164R1

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Throttle lever 3/32" x 7/16", Slotted

1шт.

32

529106R91

SHAFT ASSY, throttle

1шт.

33

547404R1

GASKET, fuel shut-off solenoid, not part of carburetor assy

2шт.

34

529114R1

JET, main metering

2шт.

35

529113R1

NOZZLE, main discharge

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET, float needle valve seat, not serviced separately, part of gasket package

1шт.

37

529128R91

VALVE AND SEAT FLOAT

1шт.

38

529126R1

PIN, float

1шт.

39

529127R1

SPRING, float pin retainer

1шт.

40

529101R92

BODY ASSY, throttle

1шт.

41

531546R1

FILTER

ASSY, fuel

1шт.

18377D

GASKET

strainer

1шт.

529122R92

GASKET KIT

PACKAGE, carburetor gasket

1шт.

529121R92

KIT

PACKAGE, carburetor repair

1шт.
