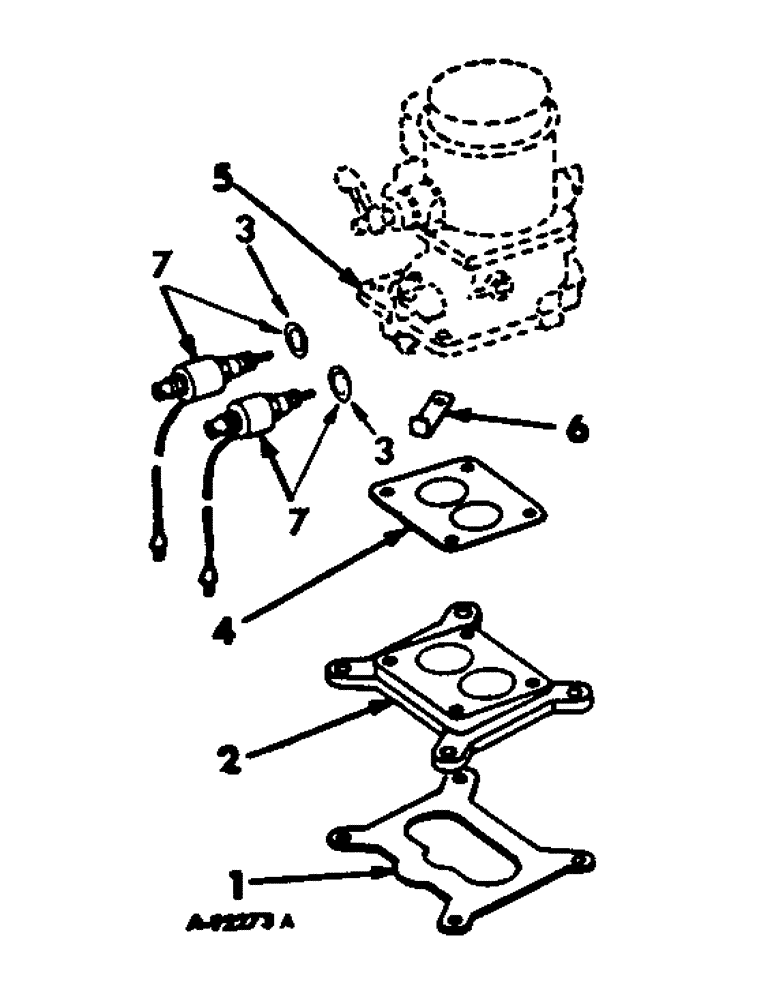

Запчасти Case IH V-345 (B-20) - CARBURETOR AND RELATED PARTS

1

151971R1

GASKET

carburetor to manifold adapter

1шт.

2

403512R1

ADAPTER, Serial Range: carburetor-manifold

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Gasoline engines 5/16"

4шт.

3

547404R1

GASKET, fuel shut-off solenoid

2шт.

4

133627R1

GASKET

carburetor

1шт.

5

CARBURETOR, refer to carburetor listing

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Gasoline engines Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

LP gas engines Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

405173R1

BRACKET, ignition cable

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1/2 hex-hd cap

1шт.

7

547405R1

PACKAGE

solenoid valve service

2шт.
