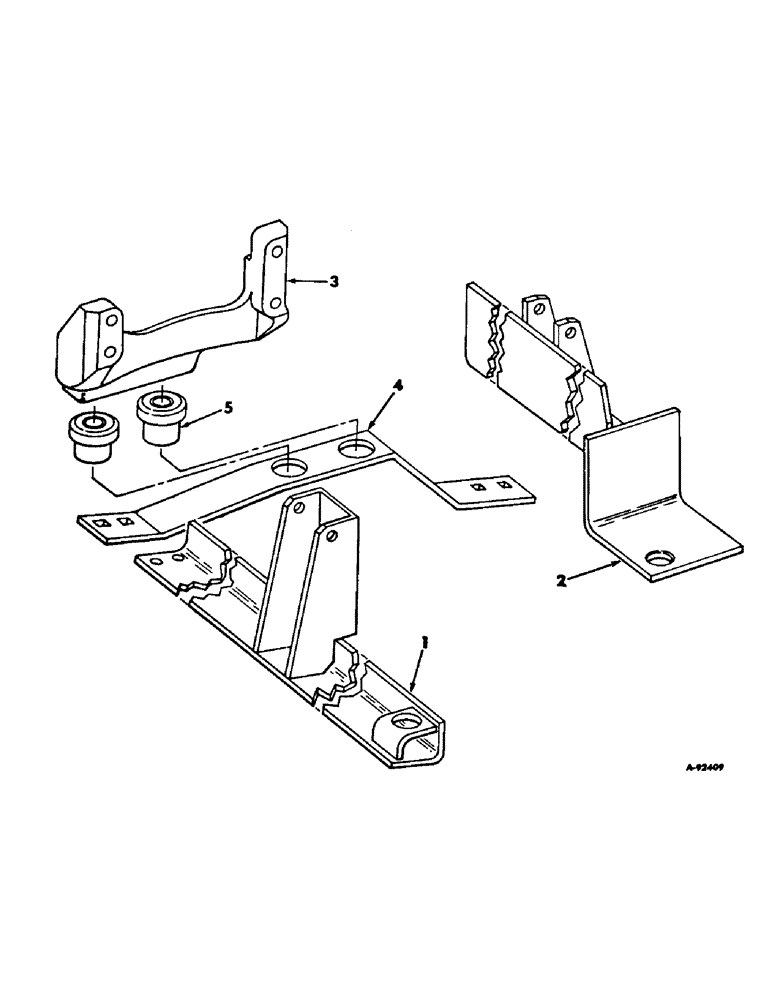

Запчасти Case IH V-345 (B-19) - ENGINE MOUNTING

1

402671R1

RAIL ASSY, engine support left

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap

1шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP hex. nylon insert

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

402673R1

RAIL ASSY, engine support right

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap

1шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP hex. nylon insert

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

215609R1

BRACKET, front engine support

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C-Z hex-hd cap

2шт.

120381

WASHER

3/8 C-Z med lock

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

529861R1

SUPPORT, engine mounting front

1шт.

19071R1

CARRIAGE BOLT,#3, 1/2" - 13 x 1 1/2", Gr 2

BOLT, 1/2-13 x 1-1/2 znd plow repair

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

5

400159R1

BUMPER

MOUNT, front vibration

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120396

WASHER

17/32 x 1-1/16 x .074 C-Z

2шт.

615089R1

WASHER, 17/32 x 1-3/4 x .06

2шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CDP hex., nylon insert

2шт.
