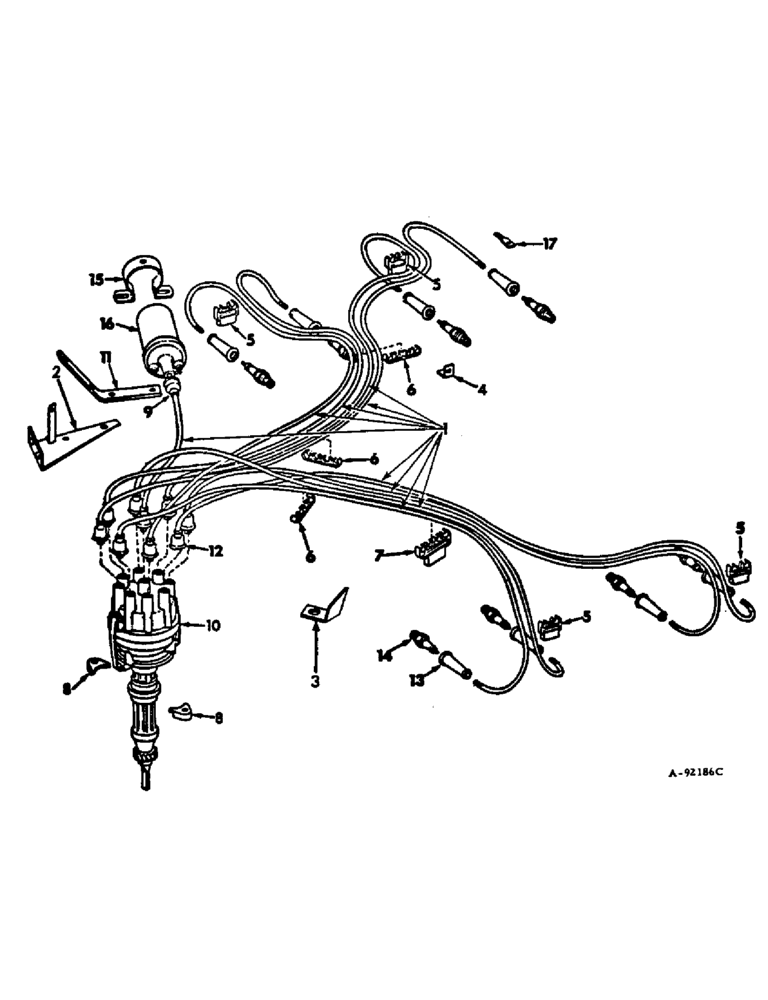

Запчасти Case IH V-345 (B-15) - SPARK PLUGS, COIL AND DISTRIBUTOR

1

403511R93

ELECTRICAL WIRE

PACKAGE, spark plug cable service, used w/machines built, Serial Range: prior-1974

1шт.

1

69868C1

KIT

PACKAGE, spark plug cable service, used w/machines built 1974 and since

1шт.

2

544093R1

BRACKET ASSY, ignition coil mounting

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

544095R1

BRACKET, ignition cable angle

1шт.

4

405430R1

BRACKET, ignition cable, short, LP Gas engines

1шт.

5

369604C1

HOLDER

RETAINER, spark plug cable, 4 used w/gasoline engine, 5 used w/LP Gas

1шт.

6

369602C1

HOLDER

RETAINER, spark plug cable, 3 used w/gasoline engine, 2 used w/LP Gas

1шт.

7

369603C1

HOLDER

RETAINER, spark plug cable

1шт.

8

353937R1

CLIP

CLAMP, distributor hold down

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

372875R1

NIPPLE, LUBE

NIPPLE, ignition coil

1шт.

10

DISTRIBUTOR ASSY, for components see list of parts under details of distributor assy

1шт.

11

151351R1

BRACKET, ignition coil mounting, used w/gasoline engine

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

2шт.

11

406305R1

BRACKET, ignition coil mounting, use w/LP Gas engines

1шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

SCREW, 3/8-16 x 3/4 C-Z hex-hd cap

1шт.

12

251553R1

BOOT

NIPPLE, distributor cap terminal

9шт.

13

371430R1

INSULATOR

spark plug terminal

8шт.

14

187901R91

PLUG

spark, J6, LP Gas, optional w/213859R91

8шт.

14

213859R91

PLUG, spark, AC-C43-com, LP Gas, optional w/187901R91

1шт.

14

RJ6

SPARK PLUG

PLUG W/GASKET, 103225H, spark, light service, champion, optional W/CR 43

8шт.

14

CR43

PLUG W/GASKET, 103225H, spark, light service, AC, optional W/FJ 6

8шт.

14

RJ4

PLUG W/GASKET, 103225H, spark, medium and heavy service, champion

8шт.

103225H

GASKET, spark plug

1шт.

15

NSS

NOT SOLD SEPARAT

CLAMP, ignition coil, not serviced separately, order coil package, 396546R93

1шт.

16

396546R93

KIT

PACKAGE, ignition coil service, consists of coil w/clamp, nipple, 372875R1 and attaching hardware

1шт.

16

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

177056

HUB

SCREW, 10/32 x 1-1/2 C-Z slt-rd-hd tap.

1шт.

181593

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

SCREW, 5/16-24 x 5/8 C-Z hex-hd cap, 2 used w/gasoline engines

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap, 2 used w/LP Gas engines

1шт.

120368

NUT,5/16"-24, G5

Used w/gasoline engines 5/16"-24, G5

1шт.

120376

NUT,5/16"-18, G5

Used w/LP Gas engines 5/16"-18, G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

405429R1

BRACKET, ignition cable-twisted

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , LP Gas engines 5/16"

1шт.
