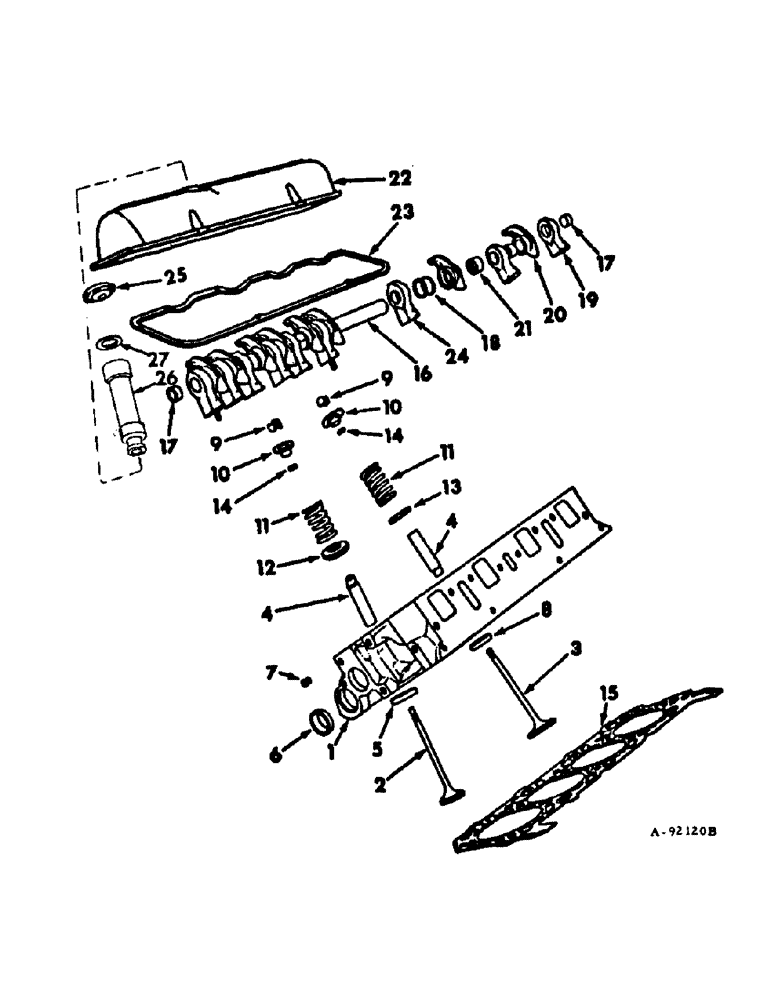

Запчасти Case IH V-345 (B-13) - CYLINDER HEAD AND RELATED PARTS

1

216376R93

HEAD W/VALVES, cylinder, gasoline

1шт.

Consists of (1) head assy 216369R93, (32) lock 41339D, (16) retainer 151167R3, (16) seal 111024R1, (16) spring 223717R11, (8) rotator 443128C2, (8) seat 151173R2, (8) seat 151550R1, (8) seat 205655R1, (8) valve 151443R3, (8) valve 151269R2

1шт.

1

216369R93

HEAD ASSY, cylinder, gasoline, consists of (1) head (NSS), (16) guide (NSS), (2) plug 445684, (6) plug 379277C1

2шт.

1

243068R93

HEAD W/VALVES, cylinder, LP gas

2шт.

Consists of (1) head 243066R93, (32) lock 41339D, (16) retainer 151167R3, (16) seal 111024R1, (16) spring 223717R11, (8) rotator 443128C2, (8) seat 151173R2, (8) seat (NSS), (8) seat 243059R1, (8) valve 151443R3, (8) valve 151269R2

1шт.

1

243066R93

HEAD ASSY, cylinder, LP gas, consists of (1) head (NSS), (16) guide, (NSS), (2) plug 445684, (6) plug 379277C1

2шт.

151179R1

BOLT

1/2-13 NC x 4-1/2 hex-hd

10шт.

223975R1

BOLT

1/2-13 NC x 2-7/8 hex-hd

8шт.

321219C1

BOLT, 1/2-13 NC x 4 hex-hd

2шт.

151341R1

WASHER

cyl head

20шт.

23375V

STUD, gen mounting bracket

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

215583R1

WASHER

flat

1шт.

2

151443R3

VALVE, CHECK

VALVE, exhaust

8шт.

3

151269R2

VALVE

intake

8шт.

4

151798R1

PILOT VALVE

GUIDE, intake valve

8шт.

4

874913R2

PILOT VALVE

GUIDE, exhaust valve

8шт.

5

151550R1

RING, exhaust valve seat standard, gasoline

8шт.

5

151551R1

RING, exhaust valve seat .015, gasoline

8шт.

5

151552R1

RING, exhaust valve seat .030, gasoline

8шт.

5

379093C1

RING, exhaust valve seat .002 O/S, LP gas

8шт.

5

379094C1

RING, exhaust valve seat .015 O/S, LP gas

8шт.

5

379095C1

RING, exhaust valve seat .030 O/S, LP gas

8шт.

6

379277C1

PLUG

core

6шт.

7

445684

PLUG

1/8 NPT sq-hd pipe

2шт.

8

205655R1

RING, intake valve seat, std, gasoline

8шт.

8

205656R1

RING, intake valve seat, .030 O/S, gasoline

8шт.

8

243059R1

RING, intake valve seat, std, LP gas

8шт.

8

243060R1

RING, intake valve seat, .002 O/S, LP gas

8шт.

8

243061R1

RING, intake valve seat, .015 O/S, LP gas

8шт.

8

243062R1

RING, intake valve seat, .030 O/S, LP gas

8шт.

9

41339D

KEY

LOCK, retainer

32шт.

10

151167R3

SEAT

RETAINER, valve spring

16шт.

11

223717R11

SEAL

SPRING, valve assy

16шт.

12

443128C2

SEAT

ROTATOR, exhaust valve

8шт.

13

151173R2

SEAT

intake valve spring

8шт.

14

111024R1

SEAL

valve stem

16шт.

15

464572C1

GASKET, cylinder head, will work for 151454R4

2шт.

16

151180R11

DRIVE, ANGLE

SHAFT ASSY, rocker arm

2шт.

17

169071R1

PLUG

oil gallery

4шт.

18

151186R1

SCRAPER RING

SPACER, rocker arm

6шт.

19

969568R1

BRACKET

rocker arm shaft

12шт.

308121C1

SCREW

BOLT, 5/16-18 x 3-1/4

12шт.

404997C1

WASHER, plain

12шт.

20

151183R13

ARM

ASSY, intake rocker, optional w/arm assy 225825R91

8шт.

20

225825R91

ARM

ASSY, intake rocker, optional w/arm assy 151183R13

8шт.

20

151185R13

ARM

ASSY, exhaust rocker, optional w/arm assy 225826R91

8шт.

20

225826R91

ARM

ASSY, exhaust rocker, optional w/arm assy 151185R13

8шт.

21

151967R3

BUSHING

rocker arm

16шт.

22

151192R21

COVER, cylinder head assy, combines w/engine serial no. 796939 and below

2шт.

22

379226C3

COVER, cylinder head assy left, combines w/engine serial no. 796940 and above

1шт.

22

379228C3

COVER, cylinder head assy right, combines w/engine serial no. 796940 and above

1шт.

155408

SCREW, 5/16-18 x 1/2 C-Z cr-rec-rd hd mach

12шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 CI auto sq-hd pipe

2шт.

528014R1

GASKET

cylinder head cover screw

12шт.

23

GASKET, cylinder head cover, order gasket package, 537168R91

2шт.

24

151181R1

HANGER

BRACKET, rocker arm shaft

6шт.

308121C1

SCREW

BOLT, 5/16-18 x 3-1/4

6шт.

404997C1

WASHER, plain

6шт.

25

86900R91

CAP

oil filler, replaces 379318C1, combines w/engine serial no. 796940 and above

1шт.

26

384715C1

PIPE ASSY, oil filler, used w/machines built 1974 and since

1шт.

27

87351R1

GASKET

oil filler cap, used w/machines built 1974 and since

1шт.
