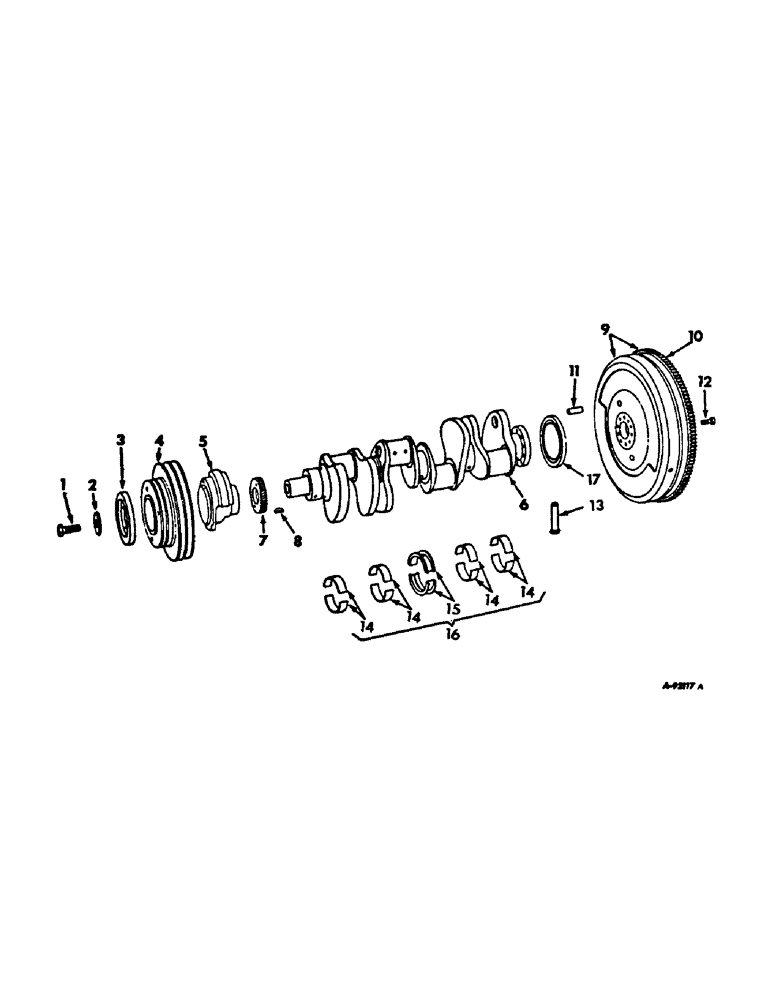

Запчасти Case IH V-345 (B-12) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

271583

SUPPORT

HH 5/8-18 x 1-1/2 hex-hd cap

1шт.

2

151124R1

WASHER, flat special

1шт.

3

151418R92

DAMPER

crankshaft vibration

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

4шт.

4

401184R1

PULLEY, crankshaft

1шт.

5

151123R1

HUB, crankshaft pulley

1шт.

6

242879R92

CRANKSHAFT

AND BEARING PACKAGE, std

1шт.

6

997041R92

CRANKSHAFT AND BEARING PKG U/S

1шт.

7

GEAR, crankshaft, order timing gear set 151885R92

1шт.

8

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

1шт.

9

401181R11

FLYWHEEL W/RING GEAR

1шт.

10

400114R1

GEAR, flywheel ring

1шт.

11

19242R1

LOCK PIN,7/16" x 1 1/4", Slotted

DOWEL, roll pin

1шт.

12

401182R1

BOLT, flywheel mounting

9шт.

13

863756R1

SEAL

rear bearing cap

2шт.

14

151840R93

BRACKET

BEARING ASSY, crankshaft standard

4шт.

14

151842R93

BRACKET

BEARING ASSY, crankshaft .010 U/S

4шт.

14

151843R93

BEARING

ASSY, crankshaft .020 U/S

4шт.

14

151844R93

BEARING

ASSY, crankshaft .030 U/S

4шт.

15

151847R92

BRACKET

BEARING ASSY, crankshaft standard

1шт.

15

151849R92

BRACKET

BEARING ASSY, crankshaft .010 U/S

1шт.

15

151851R92

BEARING

ASSY, crankshaft .020 U/S

1шт.

15

151851R92

BEARING

ASSY, crankshaft .030 U/S

1шт.

16

151854R94

KIT

BEARING PACKAGE, crankshaft standard

1шт.

16

151856R94

KIT

BEARING PACKAGE, crankshaft .010 U/S

1шт.

16

151857R94

BEARING PACKAGE, crankshaft .020 U/S

1шт.

16

151858R94

BEARING PACKAGE, crankshaft .030 U/S

1шт.

17

273587C91

SEAL

oil crankshaft rear

1шт.

151885R92

GEAR-SET

SET, timing gear, consists of camshaft gear and crankshaft gear

1шт.
