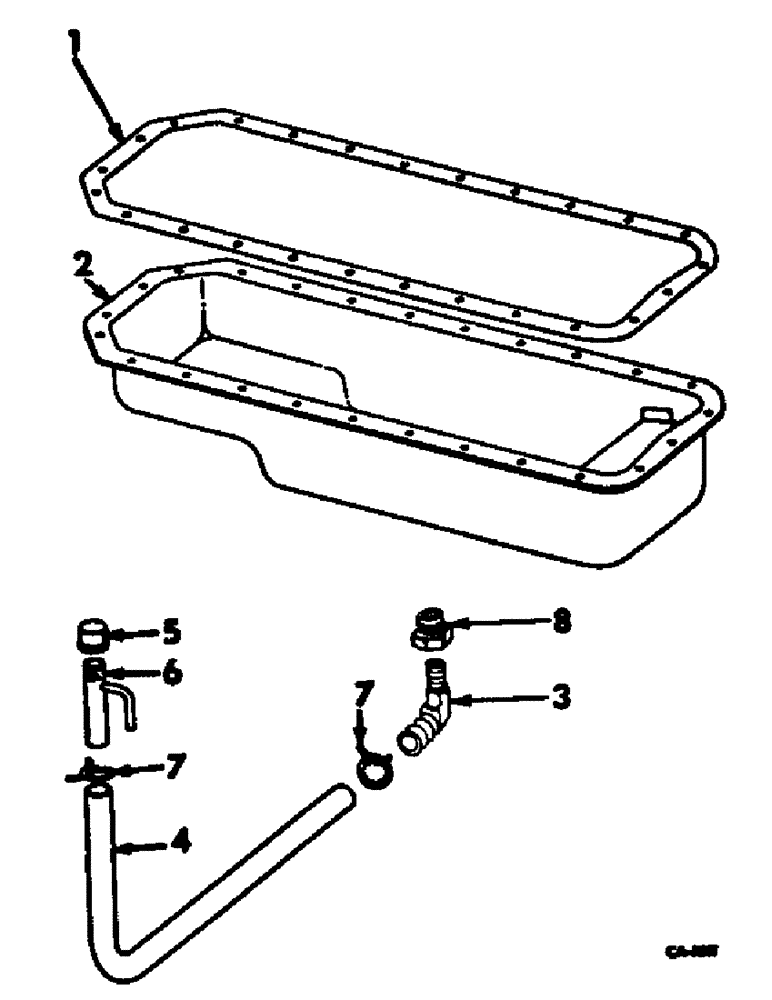

Запчасти Case IH V-345 (B-10) - OIL PAN AND GASKET

1

151067R3

GASKET

oil pan

1шт.

2

535908R11

PAN ASSY, oil, 5 qt, replaces 229625R12

1шт.

282245C1

SCREW

BOLT, mounting

16шт.

285356C1

SCREW

pan nylock

2шт.

3

864456R1

NIPPLE, LUBE

NIPPLE, 3/8 90 deg oil drain hose

1шт.

4

165202C1

HOSE,0.63" ID x 50.00"

Oil Drain 0.63" ID x 50.00"

1шт.

5

144164

O-RING

3/8 znp malleable iron pipe

1шт.

6

165203C91

FITTING

ASSY, oil drain

1шт.

7

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

8

165419C1

PLUG

oil drain

1шт.
