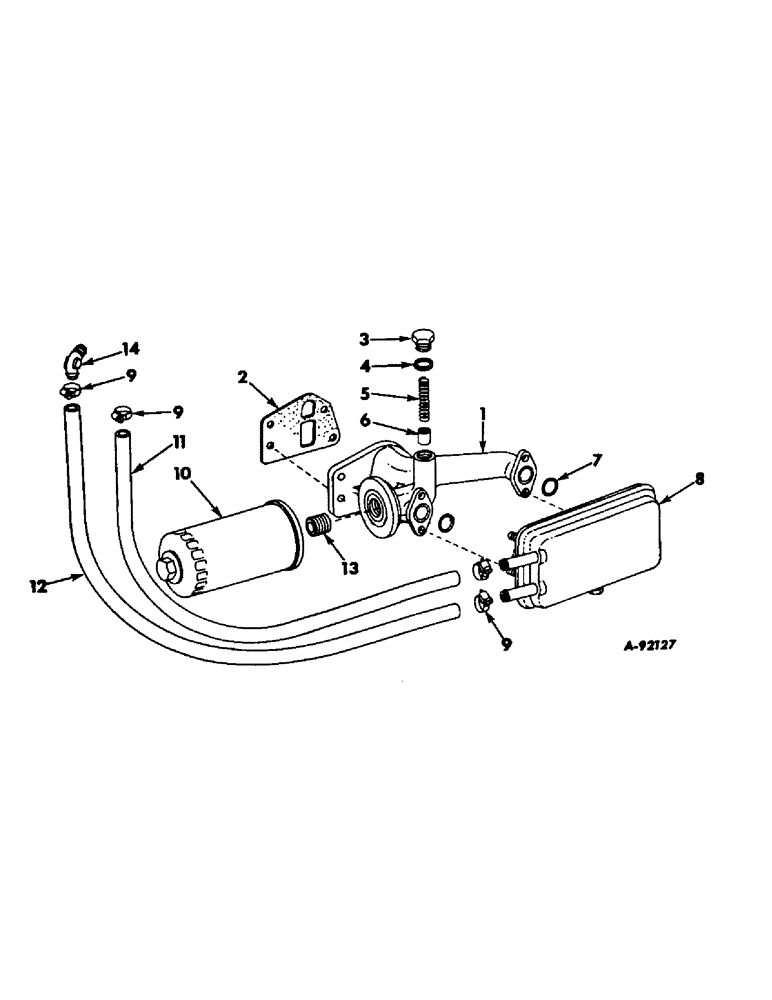

Запчасти Case IH V-304 (A-26) - OIL COOLER AND FILTER

1

401185R11

BASE ASSY, oil filter and cooler, consists of ref nos. 3, 4, 5, 6 and 13

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap

3шт.

303473R1

NUT

STUD, 3/8-16 x 1-3/4

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

2

401186R1

GASKET

oil filter and cooler base

1шт.

3

251402R1

PLUG

relief valve

1шт.

4

251403R1

GASKET

relief valve

1шт.

5

279163R1

SPRING

oil pressure relief valve

1шт.

6

251400R1

VALVE

oil pressure relief

1шт.

7

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

2шт.

8

279212R91

COOLER ASSY.

COOLER ASSY, engine oil

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

9

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose

4шт.

10

398080R2

ENGINE OIL FILTER

FILTER ASSY, spin-on oil

1шт.

11

543805R1

HOSE, engine oil cooler

1шт.

12

543915R1

HOSE, engine oil cooler

1шт.

13

402922R1

STUD, oil filter mounting

1шт.

14

864449R1

ELBOW

45 deg oil cooler hose

1шт.
