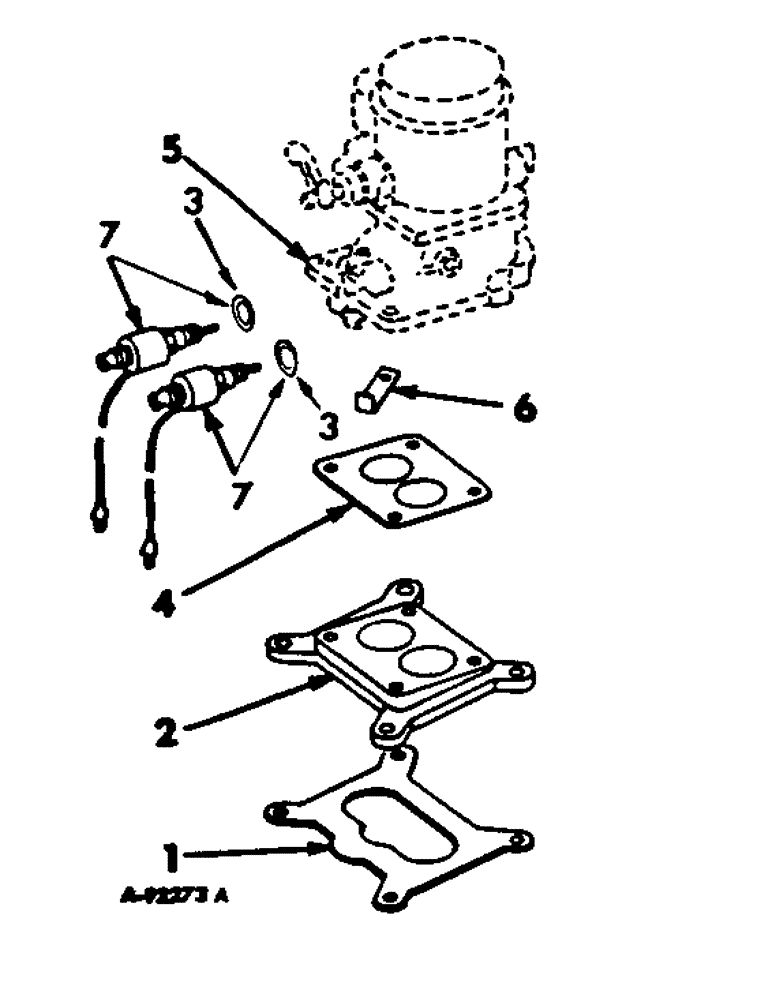

Запчасти Case IH V-304 (A-20) - CARBURETOR AND RELATED PARTS

1

151971R1

GASKET

carburetor to manifold adapter

1шт.

2

403512R1

ADAPTER, Serial Range: carburetor-manifold

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

547404R1

GASKET, fuel shut-off solenoid

2шт.

4

133627R1

GASKET

carburetor

1шт.

5

CARBURETOR, refer to carburetor listing

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

405173R1

BRACKET, ignition cable

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

7

547405R1

PACKAGE

solenoid valve service

1шт.
