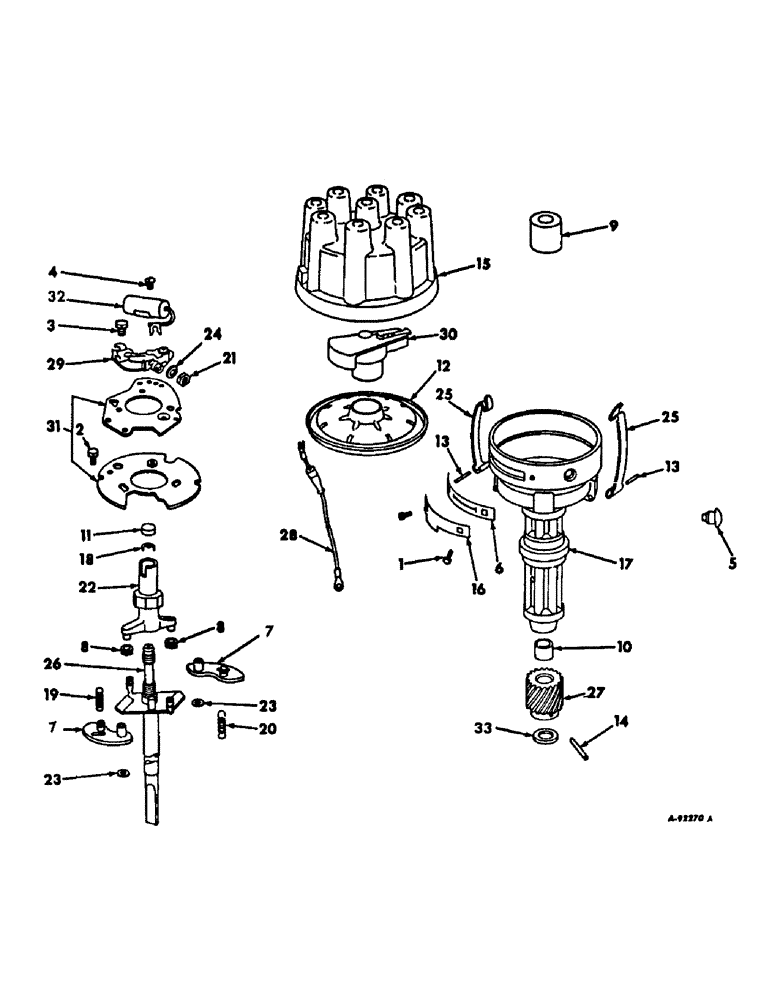

Запчасти Case IH V-304 (A-17) - DISTRIBUTOR

404944R91

DISTRIBUTOR ASSY, complete

1шт.

1

406044R1

SCREW, cover plate

2шт.

2

377194C1

SCREW, breaker plate

2шт.

3

877305R1

SCREW,#8 - 32 x 0.23"

arm and bracket, replaces 406045R1

2шт.

4

406735R1

SCREW, condenser

1шт.

5

406736R1

PLUG, passage

1шт.

6

328064C1

GASKET, cover plate

1шт.

7

396519C1

WEIGHT, post and bushing assy, will work for bushing, 269782C1 and weight arm, 406789R1

1шт.

8

269783C1

BUSHING

weight advance

2шт.

9

291152C1

BUSHING

upper

1шт.

10

269806C1

BUSHING

lower, replaces 406781R1

1шт.

11

877303R1

WICK

shaft

1шт.

12

406782R1

COVER

ASSY, dust

1шт.

13

19336R1

LOCK PIN,1/8" x 11/16", Slotted

Pin, 1/8" x 11/16", Slotted

2шт.

14

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

15

406783R1

CAP

ASSY, distributor

1шт.

16

406784R1

COVER PLATE

1шт.

17

406785R1

BASE AND BUSHING ASSY

1шт.

18

877302R1

RETAINER

cam

1шт.

19

336854C1

SPRING

primary weight

1шт.

20

291158C1

SPRING

secondary

1шт.

21

134530

NUT,Hex, #6 - 32

1шт.

22

362880C1

CAM

ASSY

1шт.

23

269797C1

WASHER

1шт.

24

406786R1

WASHER, stud

1шт.

25

269798C1

SPRING, distributor cap

2шт.

26

361758C1

SHAFT

ASSY, distributor

1шт.

27

269801C1

GEAR

drive

1шт.

28

528349R1

LEAD, primary, replaces 361766C1

1шт.

29

361764C1

CONTACT

POINT SET, distributor

1шт.

30

406787R1

ROTOR

AND SHIELD ASSY

1шт.

31

406788R1

PLATE ASSY

1шт.

32

360700C1

CAPACITOR

CONDENSER ASSY

1шт.

33

206581R1

GASKET

distributor, not part of assy

1шт.
