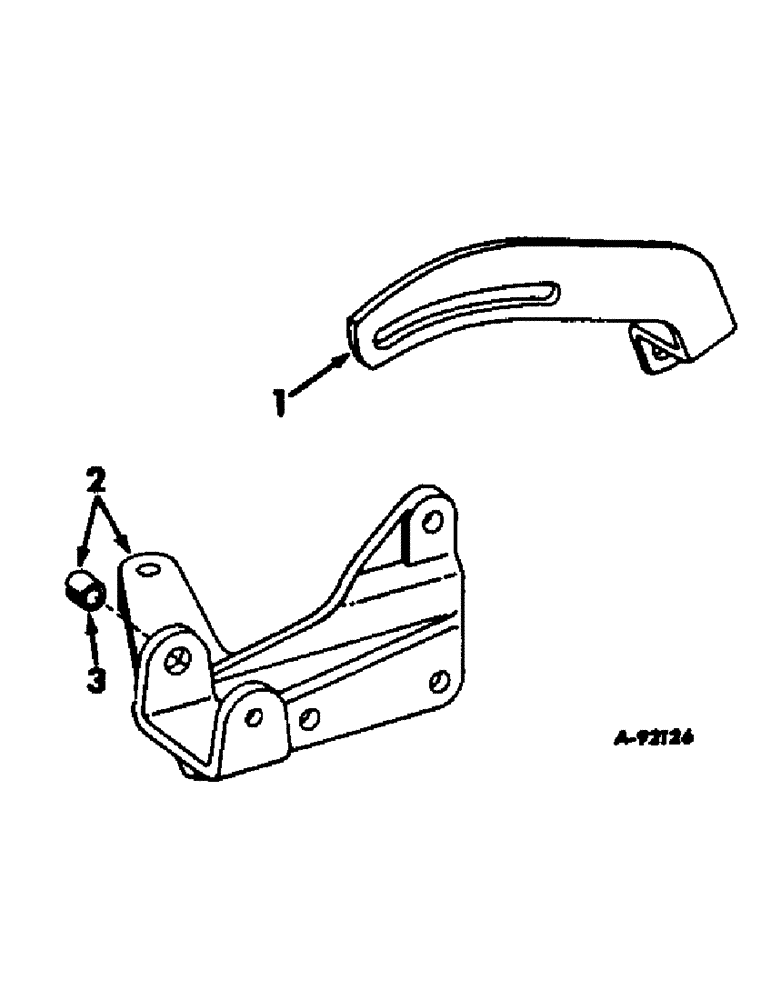

Запчасти Case IH V-304 (A-16) - ALTERNATOR-GENERATOR MOUNTING BRACKETS

1

969377R1

STRIP

STRAP, alternator adjusting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

200458C1

CAP WASHER

flat

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 C-Z hex-hd cap

1шт.

2

920284R21

BRACKET ASSY, alternator-generator mtg

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap

2шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

924987R1

BUSHING

1шт.
