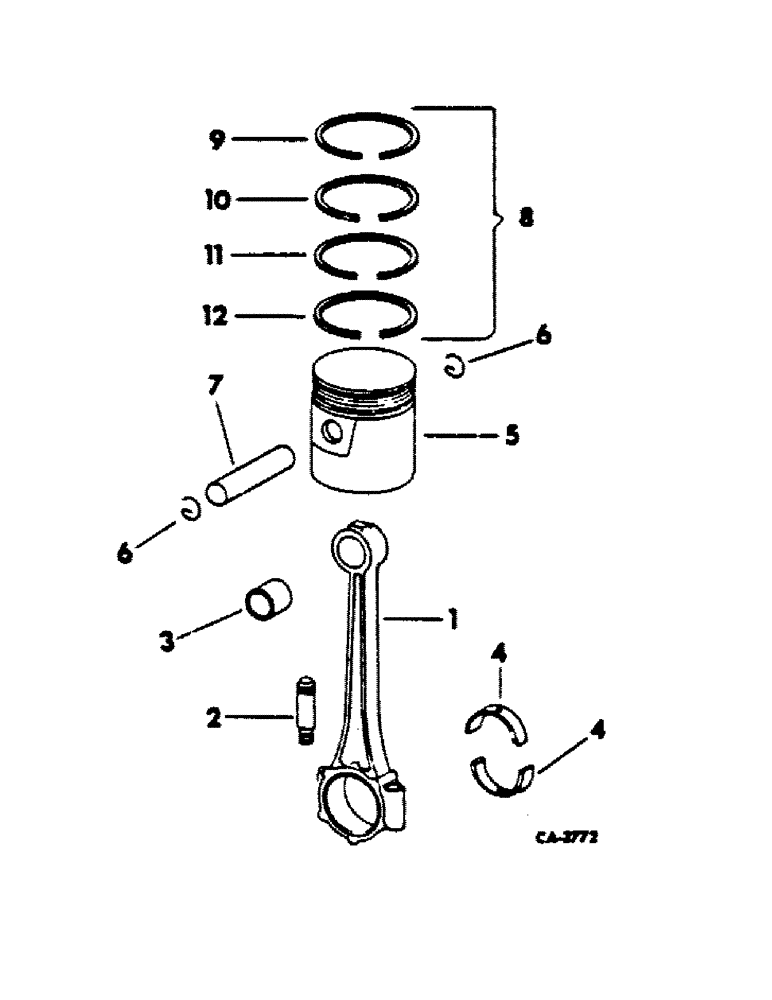

Запчасти Case IH DV4D (L-05) - CONNECTING RODS AND PISTONS

1

70510C91

ROD ASSY, connecting

4шт.

2

71026C1

BOLT

8шт.

NLS

NO LONGER SERVICED

NUT, 3/8-24 PHC hex. lock

8шт.

3

71027C1

BUSHING, piston pin

4шт.

4

71028C1

BEARING ASSY, connecting rod, .001 U/S

1шт.

4

71029C1

BEARING ASSY, connecting rod, .002 U/S

1шт.

4

71030C1

BEARING ASSY, connecting rod, .010 U/S

1шт.

4

71031C1

BEARING ASSY, connecting rod, .020 U/S

1шт.

5

70511C1

PISTON, std

4шт.

5

71032C1

PISTON, .010 O/S

4шт.

5

71033C1

PISTON, .020 O/S

4шт.

5

71034C1

PISTON, .030 O/S

4шт.

6

70512C1

RING, retaining

8шт.

7

70513C1

PIN, piston, std

4шт.

7

71035C1

PIN, piston, .005 O/S

4шт.

8

70514C1

SET, piston ring, std

1шт.

8

70515C1

SET, piston ring, .010 O/S

1шт.

8

70516C1

SET, piston ring, .020 O/S

1шт.

8

70517C1

SET, piston ring, .030 O/S

1шт.

9

NSS

NOT SOLD SEPARAT

RING, piston compression, first, not serviced separately, order ref no. 8

4шт.

10

NSS

NOT SOLD SEPARAT

RING, piston compression, second, not serviced separately, order ref no. 8

4шт.

11

NSS

NOT SOLD SEPARAT

RING, piston compression, third, not serviced separately, order ref no. 8

4шт.

12

NSS

NOT SOLD SEPARAT

RING, oil expander, not serviced separately, order ref no. 8

4шт.
