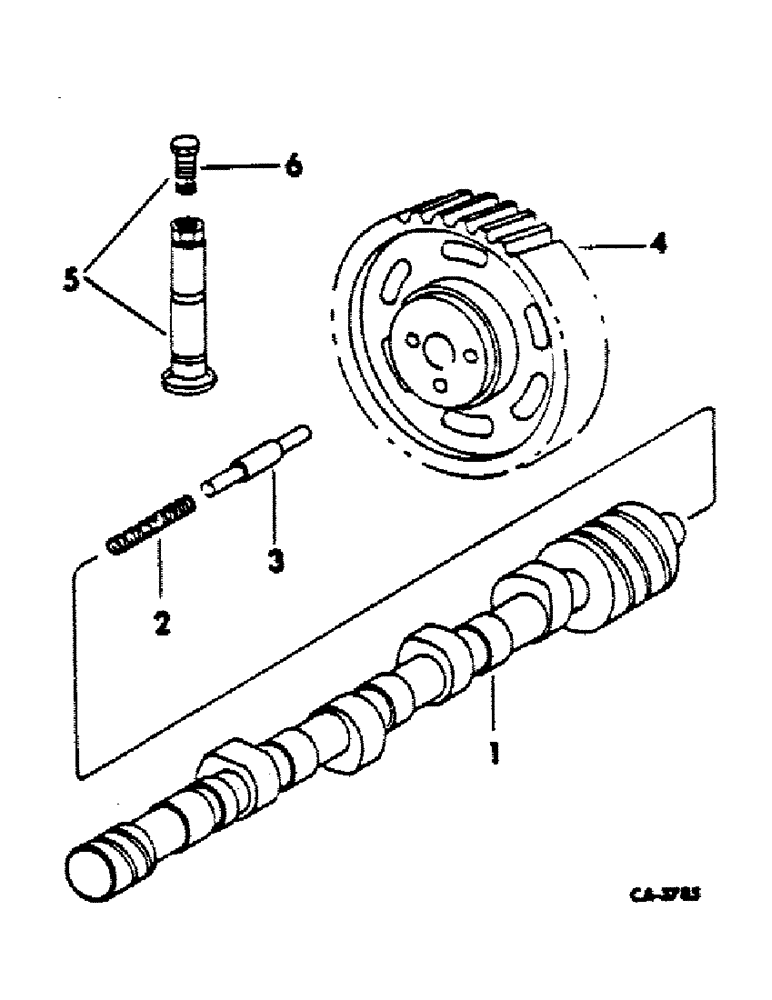

Запчасти Case IH DV4D (L-04) - CAMSHAFT, CAMSHAFT GEAR AND RELATED PARTS

1

70507C1

SHAFT, cam

1шт.

2

69468C1

SPRING, cam thrust plunger PM108

1шт.

3

69469C1

PLUNGER, cam thrust

1шт.

4

70508C1

GEAR, camshaft

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

3шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, 5/16 znd external tooth lock

3шт.

5

70509C1

TAPPET, w/screw 69471C1, valve

8шт.

6

69471C1

SCREW, valve tappet adj

8шт.
