Запчасти Case IH DV4D (L-18) - FUEL PUMP

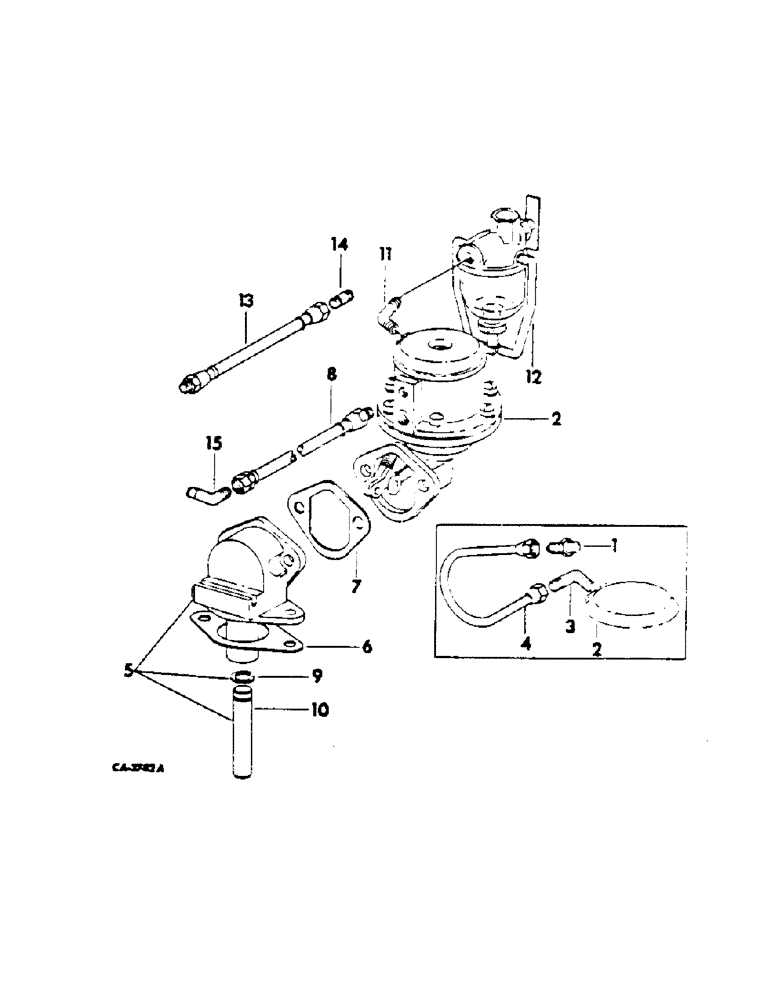

Схема запчастей Case IH DV4D - (L-18) - FUEL PUMP
5
3
13
2
6
1
14
8
7
4
2
15
10
11
12
9

Артикул

Название

Примечание

Количество

1

118748

CONNECTOR, ELEC

FITTING, carburetor

1шт.

2

69031C91

PUMP ASSY, fuel

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 and hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

(Not used this application)

1шт.

4

(Not used this application)

1шт.

5

71715C91

DRIVE ASSY, fuel pump adapter

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

NSS

NOT SOLD SEPARAT

GASKET, fuel pump, not serviced separately, order gasket package 70506C91

1шт.

7

71005C1

GASKET, fuel pump adapter

1шт.

8

(Not used this application)

1шт.

9

NSS

NOT SOLD SEPARAT

CLIP, plunger retainer, not serviced separately

1шт.

10

NSS

NOT SOLD SEPARAT

PLUNGER, fuel pump drive, not serviced separately

1шт.

11

(Not used this application)

1шт.

12

NSS

NOT SOLD SEPARAT

STRAINER, fuel, not serviced separately

1шт.

13

71059C1

TUBE, pump to carburetor 17" Length

1шт.

14

NSS

NOT SOLD SEPARAT

NIPPLE, fuel strainer mounting, not serviced separately

1шт.

15

(Not used this application)

1шт.

70035C91

PACKAGE, fuel pump repair

1шт.

71009C1

KIT

PACKAGE, fuel strainer repair

1шт.

Выбрано товаров: 21
