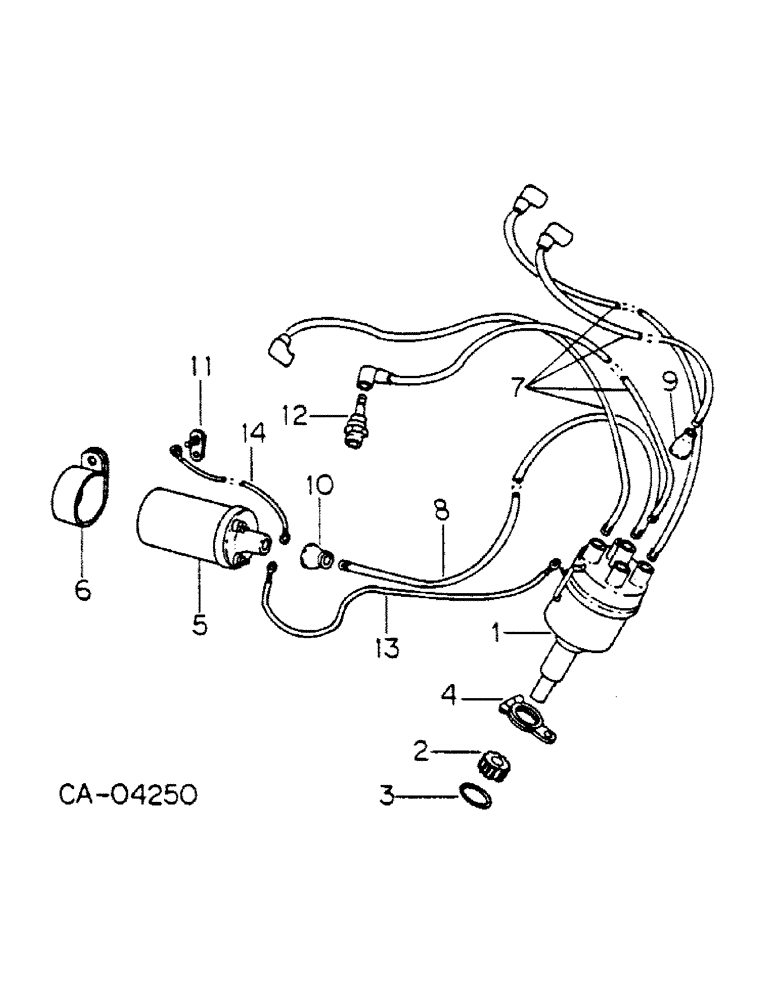

Запчасти Case IH DV4D (L-14) - DISTRIBUTOR

1

70549C91

DISTRIBUTOR ASSY

1шт.

2

70550C1

GEAR, distributor drive

1шт.

3

254954R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

distributor to housing

1шт.

4

70999C1

CLAMP ASSY, distributor

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 znd hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

71000C1

COIL

ignition, will work for 71054C1

1шт.

6

70551C1

CLAMP, coil

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

71055C1

SET, ignition cable

1шт.

8

71057C1

WIRE, Serial Range: distributor-coil

1шт.

9

69643C1

NIPPLE, ignition cable

5шт.

10

70552C1

NIPPLE, coil cable

1шт.

11

71056C1

SWITCH ASSY, hi-temp safety

1шт.

12

D16J

SPARK PLUG

PLUG, spark, Champion

4шт.

12

C86

PLUG, spark, AC

4шт.

13

71405C1

WIRE, Serial Range: coil-distributor

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE, coil to hi-temp safety switch, not serviced separately

1шт.
