Запчасти Case IH DV4D (L-12) - CYLINDER HEAD AND RELATED PARTS

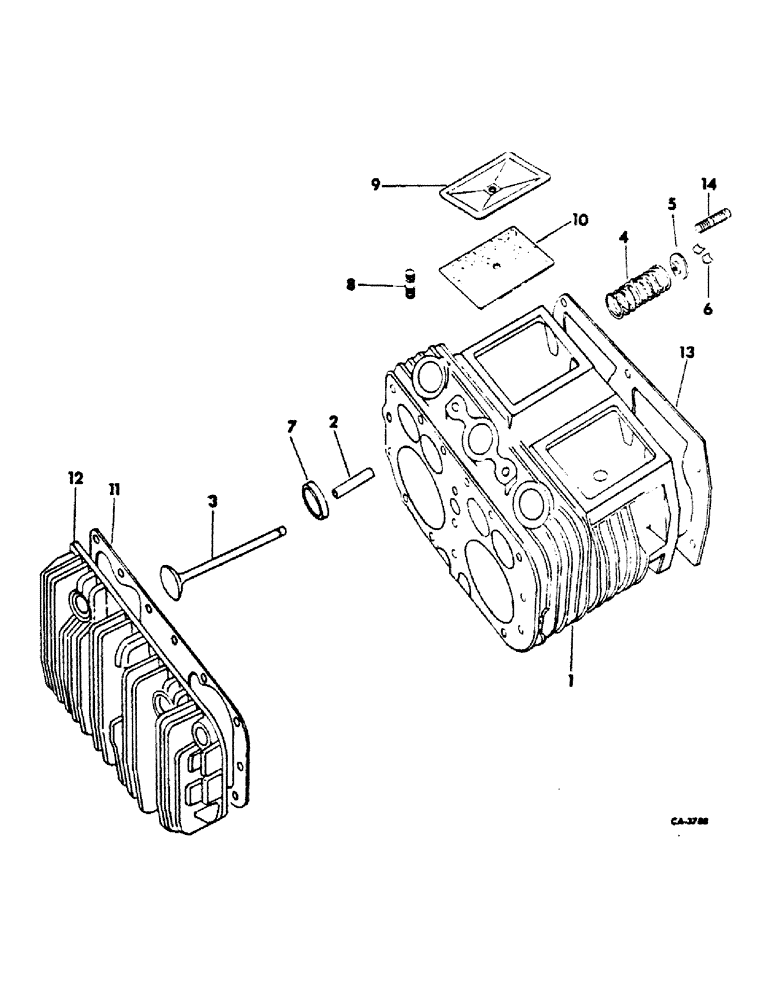

Схема запчастей Case IH DV4D - (L-12) - CYLINDER HEAD AND RELATED PARTS
1
11
6
13
8
14
5
12
3
4
7
2
10
9

Артикул

Название

Примечание

Количество

1

70538C91

HEAD ASSY, cylinder

2шт.

Consists of (1) head (NSS), (4) guide 71041C1, (2) valve 71042C1, (2) valve 71043C1, (2) spring 71044C1, (2) spring 71045C1, (2) seat 69496C1, (2) seat 69636C1 (4) lock 69497C1, (2) insert 71046C1, (2) insert 71047C1, (2) stud 69487C1, (2) cover 71048C1, (2) screw 180083, (2) washer 115308

1шт.

2

71041C1

GUIDE, valve stem

8шт.

3

71042C1

VALVE, inlet

4шт.

3

71043C1

VALVE, exhaust

4шт.

4

71044C1

SPRING, inlet valve

4шт.

4

71045C1

SPRING, exhaust valve

4шт.

5

69496C1

SEAT, inlet valve spring

4шт.

5

69636C1

SEAT, valve rotator spring

4шт.

6

69497C1

LOCK, valve spring seat

8шт.

7

71046C1

INSERT, inlet valve seat

4шт.

7

71047C1

INSERT, exhaust valve seat

4шт.

8

69487C1

STUD, manifold to cylinder block

4шт.

115308

WASHER,.344" x 11/16" x .065"

11/32 x 11/16 x .051 CDP.

4шт.

9

71048C1

COVER, valve inspection

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

4шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 znd ext tooth lock

12шт.

LEC271506

SHIM

7/16-20 znd hex.

12шт.

10

NSS

NOT SOLD SEPARAT

GASKET, valve inspection cover plate, not serviced separately, order gasket package, 70506C91

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET, cylinder head, not serviced separately, order gasket package, 70508C91

1шт.

12

70548C1

HEAD, cylinder

2шт.

24841

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

33шт.

23458

SHIM

SCREW, 3/8-16 x 2 znd hex-hd cap

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .051 znd

34шт.

13

NSS

NOT SOLD SEPARAT

GASKET, cylinder base, not serviced separately, order gasket package, 70506C91

1шт.

14

71038C1

STUD, cylinder block to crankcase, 1/2-13 x 1/2-20 x 1-7/8

12шт.

125947

STUD

1/8 zn slt-hdls pipe

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

135629

GATHERING CHAIN

1/2 znd ext-tooth lock

2шт.

120371

NUT,1/2"-20, G5

12шт.

Выбрано товаров: 30
