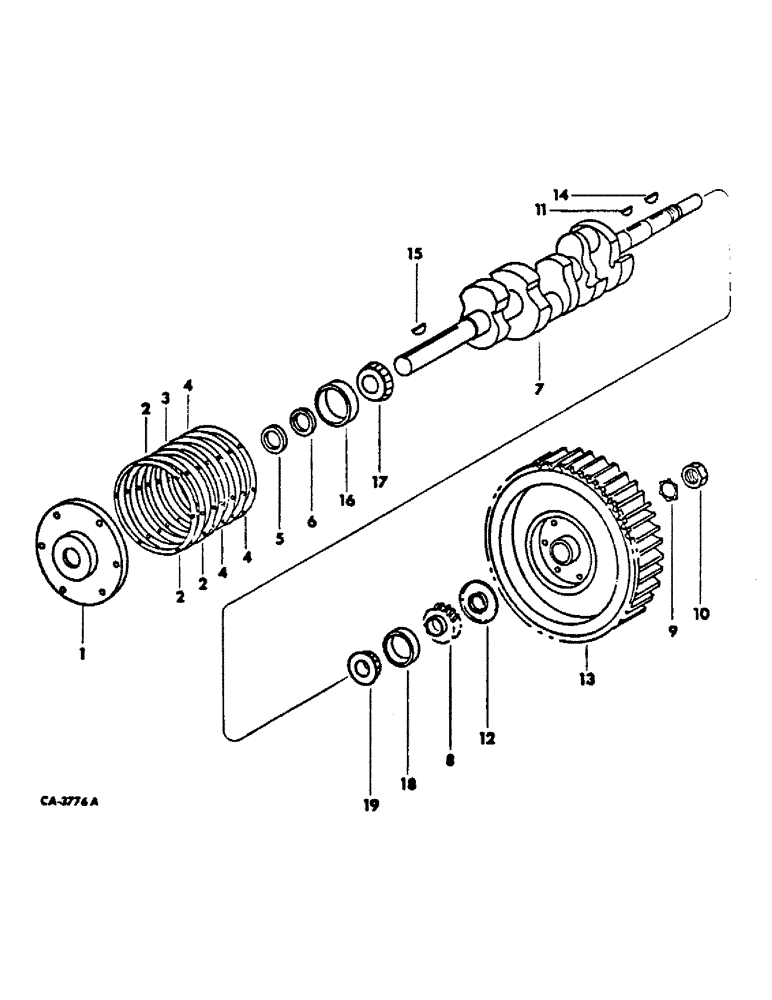

Запчасти Case IH DV4D (L-10) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

70536C91

PLATE ASSY, main bearing, consists of (1) plate (NSS), (1) seal 361025R91

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET, bearing plate, .006, not serviced separately, order gasket package, 70506C91

3шт.

3

70537C1

SHIM, main bearing plate

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET, bearing plate, .003, not serviced separately, order gasket package, 70506C91

3шт.

5

(Not used this application)

1шт.

6

361025R91

OIL RESERVOIR

SEAL, oil

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap type 8

6шт.

120381

WASHER

3/8 znd light lock

6шт.

7

70546C91

CRANKSHAFT ASSY, consists of (1) crankshaft (NSS), (1) gear 71051C1, (2) bearing 71404C91, (2) bearing 19985H, (1) key 124553, (1) slinger

1шт.

8

71051C1

GEAR, crankshaft

1шт.

9

71052C1

LOCKWASHER, flywheel

1шт.

10

71053C1

NUT, flywheel

1шт.

11

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

SLINGER, crankshaft oil, part number not available at time of printing

1шт.

13

70547C91

FLYWHEEL, w/ring gear, assy

1шт.

14

126-148

WOODRUFF KEY,#29, 3/8" x 2 1/8", HT

KEY, 3/8 x 2-1/8 Woodruff 29

1шт.

15

(Not used this application)

1шт.

16

19985H

TAPERED BEARING,2.125" ID x 4.25" OD x 1.093"

BEARING, cup

1шт.

17

71404C91

BEARING, ROLLER

BEARING ASSY, cone

1шт.

18

19985H

TAPERED BEARING,2.125" ID x 4.25" OD x 1.093"

BEARING, cup

1шт.

19

71404C91

BEARING, ROLLER

BEARING ASSY, cone

1шт.
