Запчасти Case IH DV4D (L-09) - CRANKCASE FRONT COVER AND IDLER GEAR

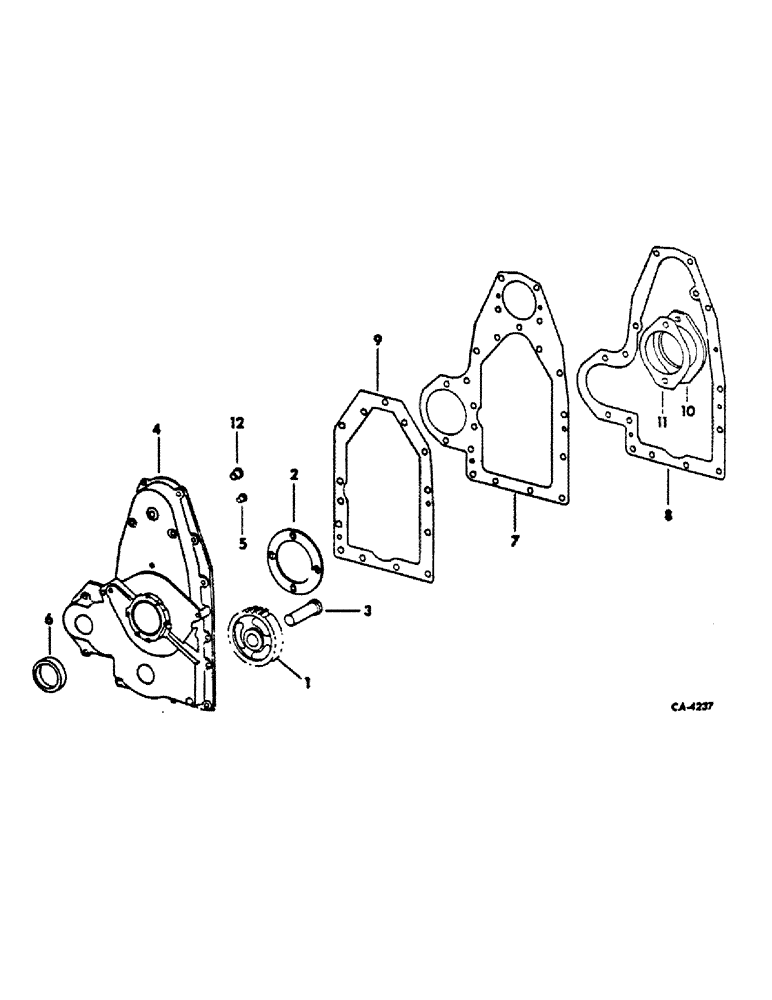

Схема запчастей Case IH DV4D - (L-09) - CRANKCASE FRONT COVER AND IDLER GEAR
1
2
11
5
12
6
7
9
4
8
10
3

Артикул

Название

Примечание

Количество

1

70557C1

GEAR, idler

1шт.

2

70535C1

PLATE, flywheel end bearing

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

69629C1

STUD, idler

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16-18 x 3/8 zn hex-soc-hd cup point

1шт.

4

70539C91

COVER ASSY, gear, consists of (1) button 69470C1, (1) seal 380922R91, (1) cover (NSS), (1) plug 20972R1, (1) plug 71049C1, (1) bushing 70541C1

1шт.

70540C1

PIN, gear, Serial Range: cover-case

2шт.

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 C-Z auto sq-hd pipe

1шт.

71049C1

PLUG

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 znd hex-hd cap

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

5

69470C1

BUTTON, camshaft thrust

1шт.

6

380922R91

OIL SEAL,42.42mm ID x 69.95mm OD x 12.7mm Thk

oil

1шт.

7

70542C1

SPACER, gear cover

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

115308

WASHER,.344" x 11/16" x .065"

11/32 x 11/16 x .051 COP.

2шт.

120376

NUT,5/16"-18, G5

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET, gear cover, not serviced separately, order gasket package, 70506C91

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, crankcase, not serviced separately, order gasket package, 70506C91

1шт.

10

70543C1

COVER, magneto flange

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

NSS

NOT SOLD SEPARAT

GASKET, not serviced separately, order gasket package, 70506C91

1шт.

12

70541C1

BUSHING

1шт.

Выбрано товаров: 26
