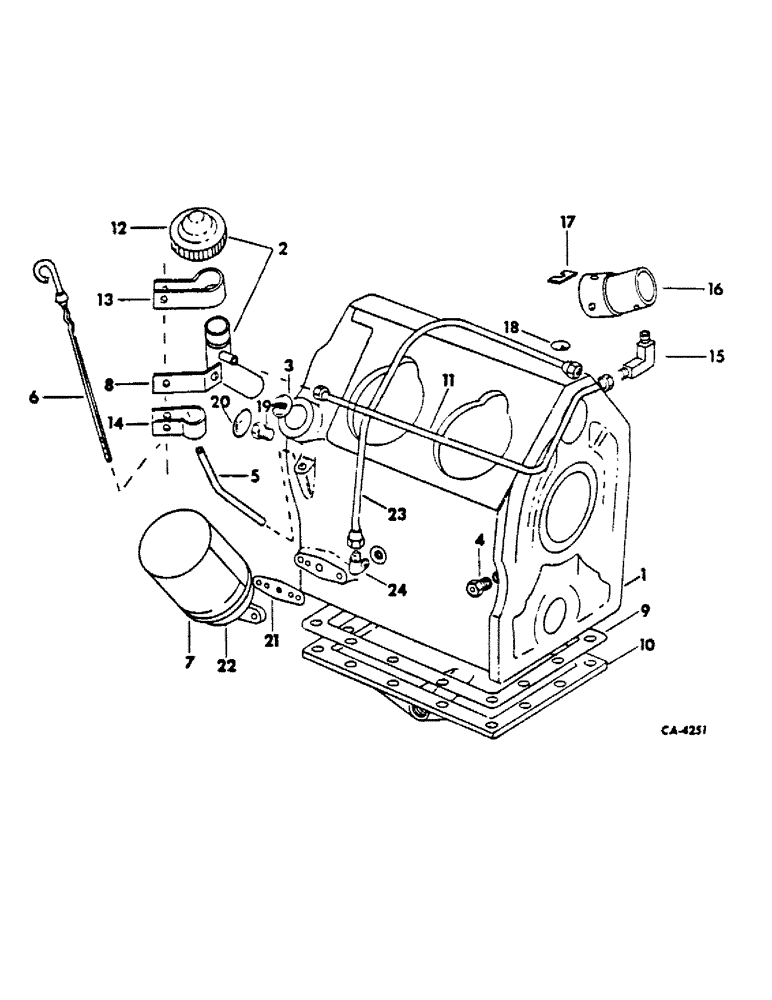

Запчасти Case IH DV4D (L-07) - CRANKCASE AND RELATED PARTS

1

70528C91

CRANKCASE ASSY, consists of (1) crankcase (NSS), (1) tube & cap 71712C91, (12) stud 71038C1, (8) plug 125947, (1) plug, (1) screen 69489C1, (4) nozzle 70529C91, (2) stud 71039C1, (2) stud 71040C1, (2) stud 69663C1, (2) plug 172529, (1) plug 172570

1шт.

71039C1

STUD, 1/4-20 x 1/4-28 x 7/8

2шт.

NSS

NOT SOLD SEPARAT

SCREW, oil pump lock, not serviced separately

1шт.

2

71712C91

TUBE AND CAP, oil filler

1шт.

3

69489C1

SCREEN, oil filler

1шт.

4

70529C91

NOZZLE, oil spray

4шт.

5

70530R1

TUBE, dipstick

1шт.

6

70531C1

GAUGE, oil level

1шт.

7

70121C1

KIT

PACKAGE, oil filter cartridge, consists of (4) gaskets (NSS), (4) cartridges (NSS)

1шт.

8

70534C1

BRACKET, oil filler tube support

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/8 x 3/4 x .051 znd

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, crankcase bottom cover, not serviced separately, order gasket package, 70506C91

1шт.

10

70544C1

PLATE, crankcase bottom cover

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

11

71050C1

TUBE, breather

1шт.

12

70321C1

CAP

oil filler

1шт.

13

70533C1

CLAMP, oil filler tube

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

70532C1

CLAMP, dipstick tube

1шт.

15

70026C1

ELBOW ASSY, breather

1шт.

16

70545C1

BRACKET, air, Serial Range: cleaner-carburetor

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto. zn sq-hd pipe

1шт.

17

69504C1

GASKET, air cleaner bracket

1шт.

18

172529

PLUG

5/8 expansion

2шт.

19

69488C1

PLUG, 7/16-14

4шт.

20

172570

PLUG,Exp, 1 3/8"

1-3/8 expansion

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

21

NSS

NOT SOLD SEPARAT

GASKET, oil filter mounting, not serviced separately, order gasket package, 70506C91

1шт.

22

70122C1

BASE ASSY, oil filter

1шт.

71040C1

SCREW, 5/16-18 x 5/16-24 x 1-7/16

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120368

NUT,5/16"-24, G5

2шт.

23

71067C1

TUBE, crankcase to governor 0.25" Diameter, 18.25" Length

1шт.

24

69505C1

ELBOW, oil line

1шт.

25

71603C1

KIT, tilt angle breather, used to reduce engine smoking when operating on inclines, consists of (1) breather cap (NSS), (1) capscrew (NSS), (1) gasket (NSS), (1) plate valve tappet inspection, no. 2 cylinder (NSS)

1шт.
