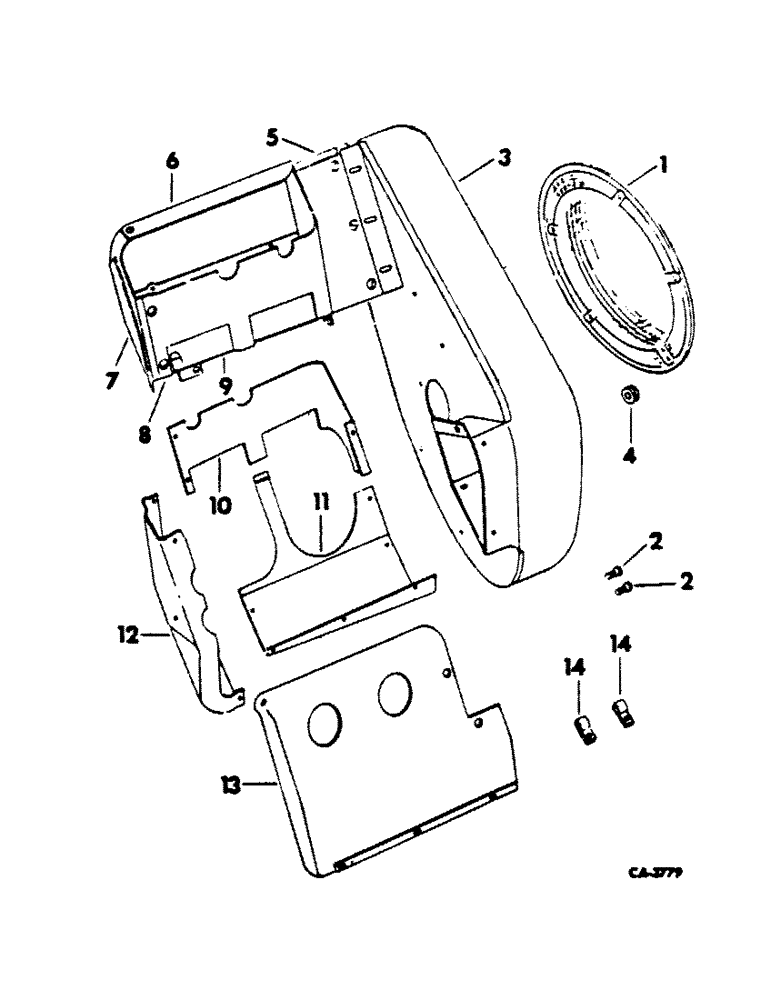

Запчасти Case IH DG4D (K-06) - AIR SHROUDING

1

69481C1

SCREEN, rotating

1шт.

22238R1

SCREW, 1/4-20 x 3/4 nylon pellet

5шт.

2

69662C1

SCREW, 5/16-18 x 1/2 w/1/8 thick-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

69480C1

SHROUD ASSY, flywheel

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

21025R1

SCREW, 1/4-20 x 3/8 zn hex-hd mach

23шт.

172431

SCREW,Hex, 1/4" - 20 x 3/4"

1/4-20 x 3/4 C-Z hex-hd tap

3шт.

171026

SCREW, 1/4-20 x 1/2 C-Z hex-hd tap

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

35шт.

4

69482C1

WASHER, rubber faces

5шт.

5

69483C1

COVER, side

1шт.

6

69621C1

SHROUD, RH cyl head

1шт.

7

69622C1

COVER, RH rear shroud

1шт.

8

69484C1

DEFLECTOR, RH cyl heat

1шт.

9

69623C1

SHROUD, RH lower cyl

1шт.

10

69485C1

DEFLECTOR, LH cyl heat

1шт.

11

69624C1

SHROUD, LH lower cyl

1шт.

12

69625C1

COVER, LH rear shroud

1шт.

13

69014C1

SHROUD, LH cyl head, 3200A loaders

1шт.

13

70992C1

SHROUD, LH cyl head, 3200B loaders

1шт.

14

69486C1

CLIP, spark plug cable

2шт.
