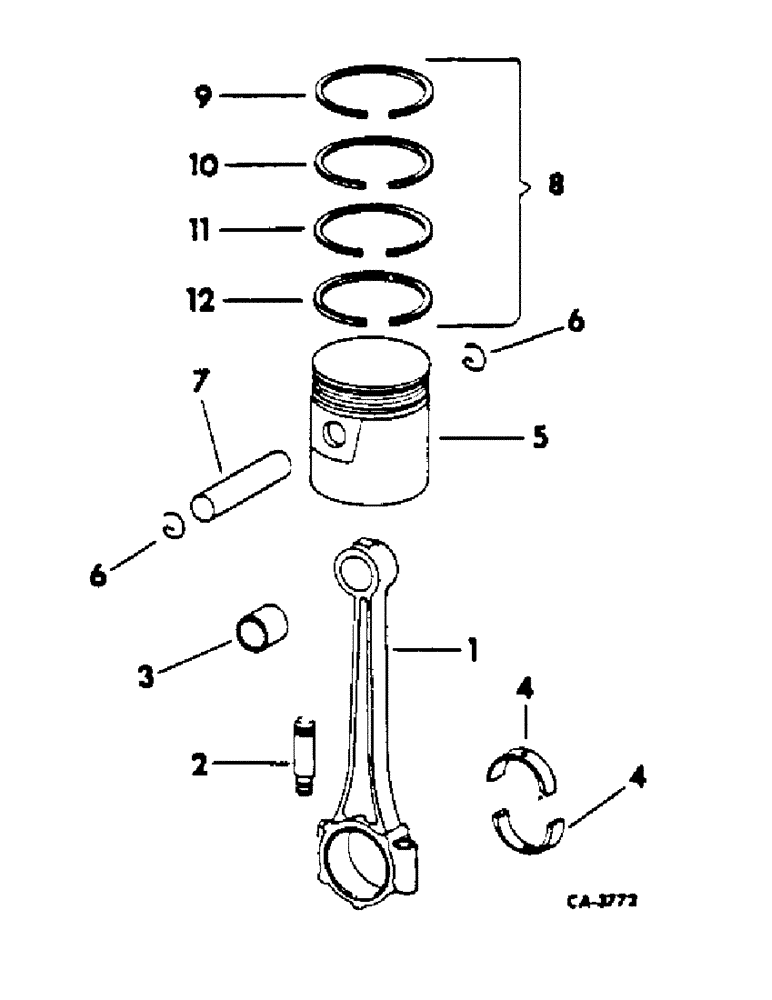

Запчасти Case IH DG4D (K-05) - CONNECTING RODS AND PISTONS

1

69004C91

ROD ASSY, connecting, inclused ref nos 2 and 3

4шт.

2

69472C1

BOLT

8шт.

232-4615

LOCK NUT,5/16"-24, GC

NUT, 5/16-24 PHC hex. lock PD246

8шт.

3

69474C1

BUSHING, piston pin

4шт.

4

69005C1

BEARING ASSY, connecting rod, std

4шт.

4

69511C1

BEARING ASSY, connecting rod, .001 U/S

4шт.

4

69512C1

BEARING ASSY, connecting rod, .002 U/S

4шт.

4

69513C1

BEARING ASSY, connecting rod, .010 U/S

4шт.

4

69514C1

BEARING ASSY, connecting rod, .020 U/S

4шт.

5

69475C1

PISTON, std

4шт.

5

69477C1

PISTON, .010 O/S

4шт.

5

69478C1

PISTON, .020 O/S

4шт.

5

69479C1

PISTON, .030 O/S

4шт.

6

69620C1

RING, retaining

8шт.

7

831320R1

PIN, piston, std

4шт.

7

69007C1

PIN, piston, .010 O/S

4шт.

8

69010C1

SET, piston ring, std

1шт.

8

69011C1

SET, piston ring, .010 O/S

1шт.

8

69012C1

SET, piston ring, .020 O/S

1шт.

8

69013C1

SET, piston ring, .030 O/S

1шт.

9

NSS

NOT SOLD SEPARAT

RING, piston compression, first, not serviced separately, order ref no. 8

4шт.

10

NSS

NOT SOLD SEPARAT

RING, piston compression, second, not serviced separately, order ref no. 8

4шт.

11

NSS

NOT SOLD SEPARAT

RING, piston compression, third, not serviced separately, order ref no. 8

4шт.

12

NSS

NOT SOLD SEPARAT

RING, oil expander, not serviced separately, order ref no. 8

4шт.
