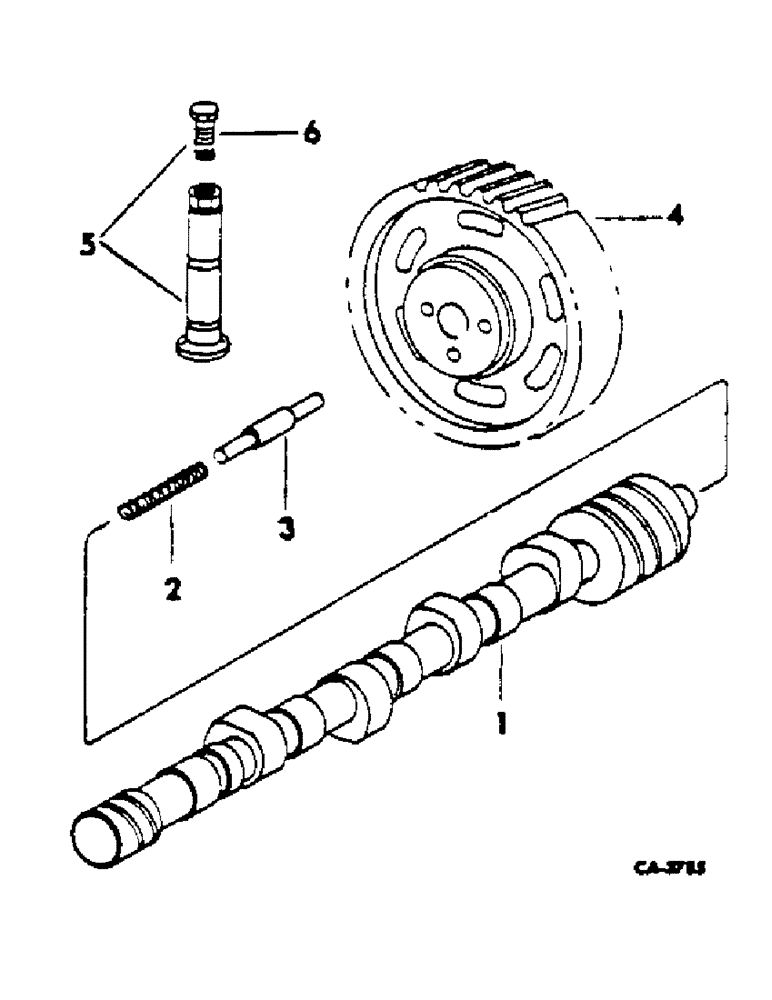

Запчасти Case IH DG4D (K-04) - CAMSHAFT, CAMSHAFT GEAR AND RELATED PARTS

1

69001C1

SHAFT, cam

1шт.

2

69468C1

SPRING, cam thrust plunger PM108

1шт.

3

69469C1

PLUNGER, cam thrust

1шт.

4

69002C1

GEAR, camshaft

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

69003C1

TAPPET, w/screw 69471C1, valve

8шт.

6

69471C1

SCREW, valve tappet adj

8шт.
