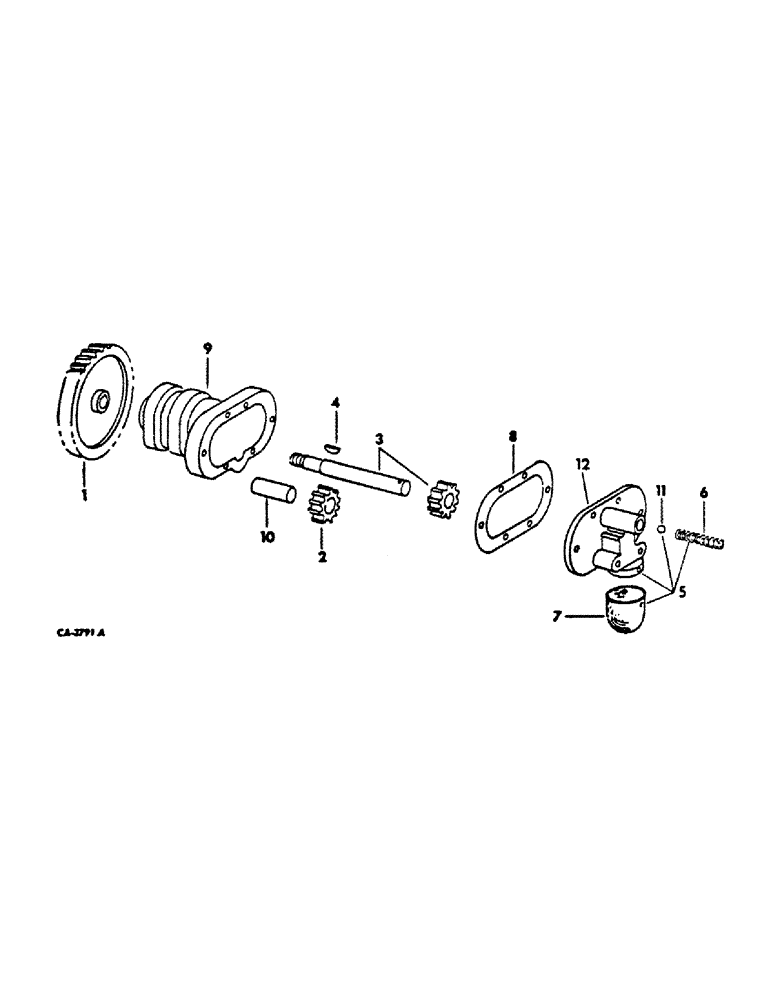

Запчасти Case IH DG4D (K-26) - OIL PUMP

69035C91

PUMP ASSY, oil

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

10-32 x 1/2 zn slt-rd-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

10-32 x 1-1/4 znd slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

71023C1

SCREW, oil pump lock, 3200B loaders

1шт.

1

69036C1

GEAR, oil pump

1шт.

2

69037C1

GEAR, driven

1шт.

3

69038C1

DRIVE SHAFT, w/driver gear assy

1шт.

112009

PIN,1/4" x 3/4"

1/8 x 3/4 sq end str

1шт.

4

106958

KEY

1/16 x 1/2 Woodruff 1 PL37

1шт.

5

69660C91

COVER ASSY, oil pump

1шт.

6

69509C1

SPRING, oil pump relief valve

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

7

69661C1

SCREEN, oil pump

1шт.

8

69510C1

GASKET, oil pump

1шт.

9

NSS

NOT SOLD SEPARAT

BODY, not serviced separately, order pump assy

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, stub, not serviced separately, order pump assy

1шт.

11

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

1шт.

12

NSS

NOT SOLD SEPARAT

COVER, not serviced separately, order cover assy. 69660C91

1шт.
