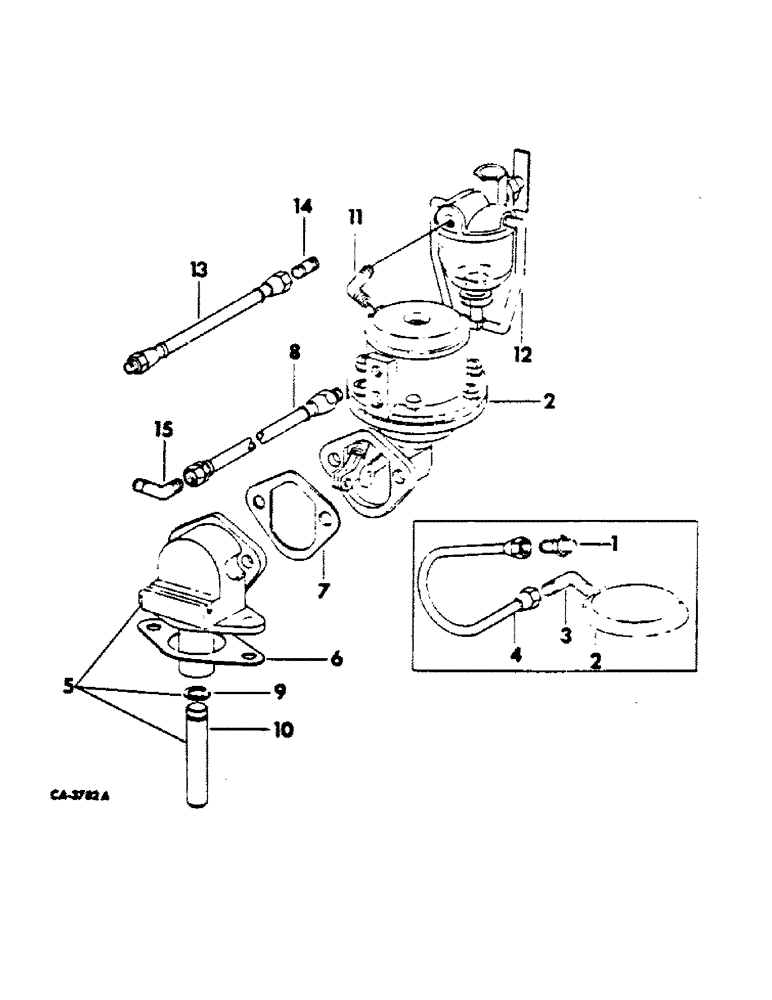

Запчасти Case IH DG4D (K-22) - FUEL PUMP

1

118748

CONNECTOR, ELEC

FITTING, carburetor, 3200A loaders

1шт.

2

69031C91

PUMP ASSY, fuel

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 and hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

69505C1

ELBOW, fuel line, 3200A loaders

1шт.

4

70034C1

TUBE, pump to carburetor, 3200A loaders 1" OD, 7" Length

1шт.

5

70036C91

ADAPTER ASSY, fuel pump

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

NSS

NOT SOLD SEPARAT

GASKET, fuel pump, not serviced separately, order gasket package

1шт.

7

71005C1

GASKET, fuel pump adapter

1шт.

8

71006C1

TUBE, pump to carburetor, 3200B loaders

1шт.

9

CLIP, plunger retainer, part number not available at time of printing

1шт.

10

PLUNGER, fuel pump drive, part number not available at time of printing

1шт.

11

71007C1

ELBOW, fuel strainer mounting, 3200B loaders

1шт.

12

71008C1

STRAINER ASSY, fuel

1шт.

13

Not used this application

1шт.

14

Not used this application

1шт.

15

69505C1

ELBOW, fuel line, 3200B loaders

1шт.

70035C91

PACKAGE, fuel pump repair

1шт.

71009C1

KIT

PACKAGE, fuel strainer repair, 3200B loaders

1шт.
