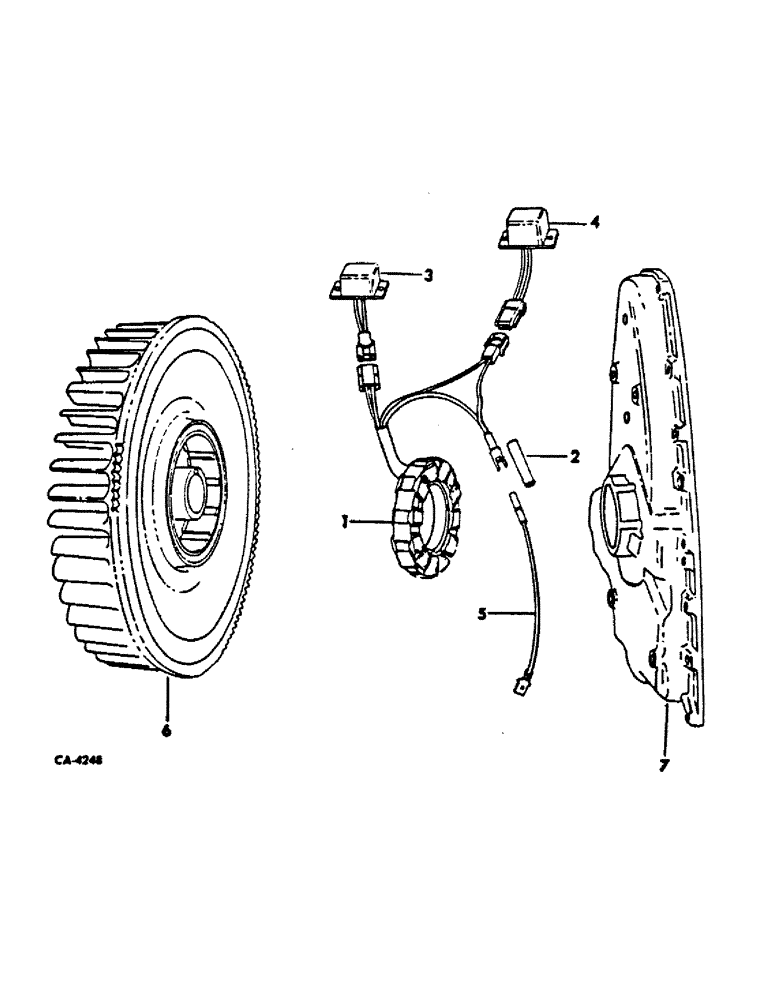

Запчасти Case IH DG4D (K-20) - FLYWHEEL ALTERNATOR, 3200B LOADERS

1

69648C1

STATOR ASSY, 30 amp alternator

1шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

2шт.

23526R1

SCREW, 10-32 x 1 CAD hex-soc-hd cap

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

2

70031C1

INSULATOR

2шт.

3

69649C1

RECTIFIER ASSY, 3 prong

1шт.

4

69650C1

REGULATOR

ASSY

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

10-32 x 1/2 zn slt-rd-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

5

71002C1

CABLE ASSY

1шт.

6

69025C91

FLYWHEEL, w/ring gear, assy

1шт.

7

69022C91

COVER ASSY, gear

1шт.
