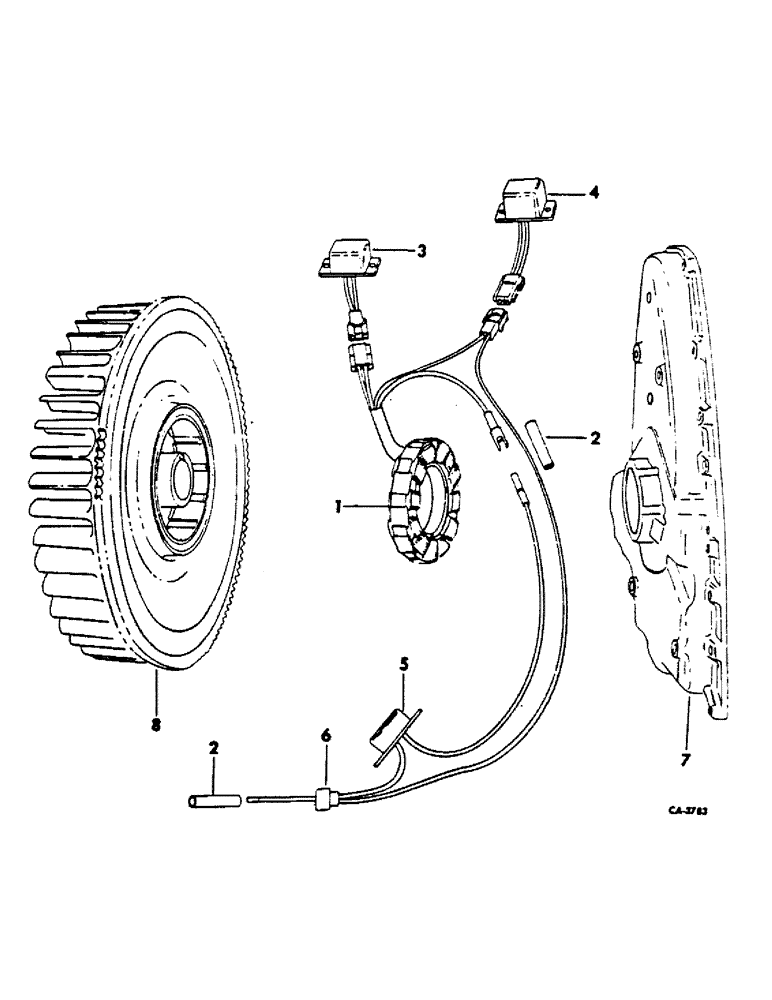

Запчасти Case IH DG4D (K-19) - FLYWHEEL ALTERNATOR, 3200A LOADERS

1

69648C1

STATOR ASSY, 30 amp. alternator, also order rectifier, 69649C1 on engines w/serial no. 5188287 and below

1шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

2шт.

23526R1

SCREW, 10-32 x 1 cad hex-soc-hd cap

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

2

70031C1

INSULATOR

2шт.

3

71604C1

RECTIFIER

ASSY, 2 prong, engines w/serial no. 5188287 and below

1шт.

3

69649C1

RECTIFIER ASSY, 3 prong, engines w/serial no. 5188288 and above

1шт.

4

69650C1

REGULATOR

ASSY

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

10-32 x 1/2 zn slt-rd-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

5

70938C1

PACKAGE, isolation diode, includes ref nos 2 and 6

1шт.

445512

SCREW, 8-15 x 3/8 C-Z hex-hd tap

2шт.

6

377630C1

CONNECTOR, ELEC

CONNECTOR, wire, will work for 70033C1

1шт.

7

69022C91

COVER ASSY, gear

1шт.

8

69025C91

FLYWHEEL, w/ring gear, assy

1шт.
