Запчасти Case IH DG4D (K-17) - DISTRIBUTOR, SPARK PLUGS AND CABLES, 3200B LOADERS

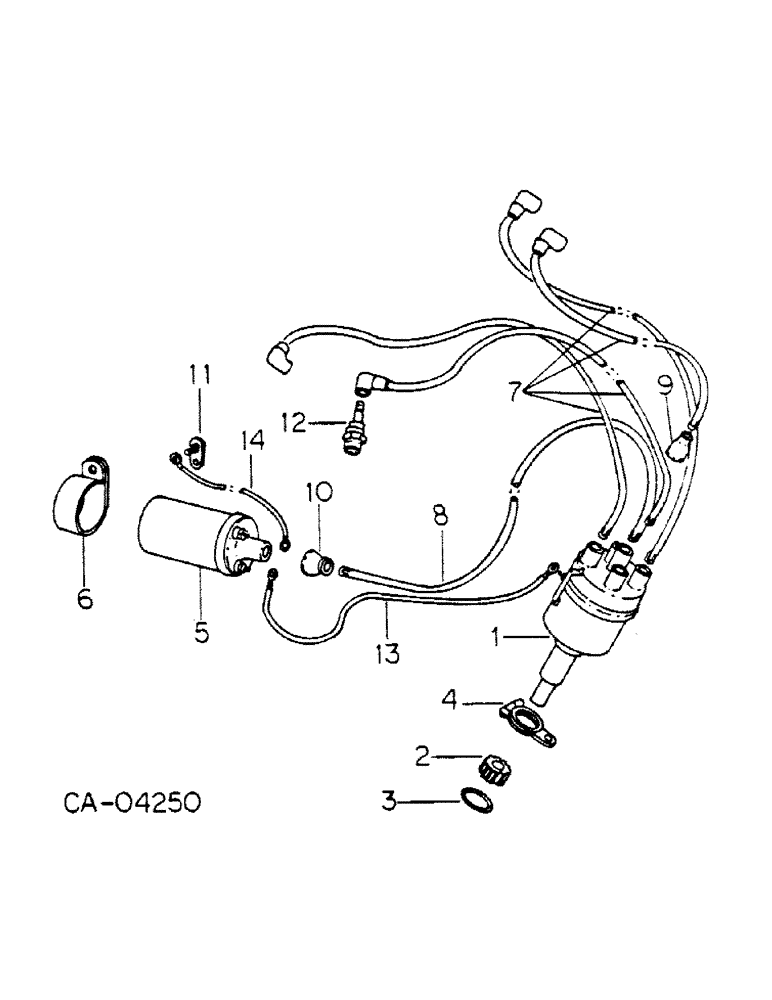

Схема запчастей Case IH DG4D - (K-17) - DISTRIBUTOR, SPARK PLUGS AND CABLES, 3200B LOADERS
8
1
11
13
10
12
4
2
6
7
9
3
14
5

Артикул

Название

Примечание

Количество

1

70559C91

DISTRIBUTOR ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR, not serviced separately

1шт.

3

254954R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

distributor to housing

1шт.

4

70999C1

CLAMP ASSY, distributor

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 znd hex-hd cap

1шт.

5

71000C1

COIL

ignition

1шт.

6

71001C1

CLAMP, coil

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

126816

SCREW, 1/4-20 x 3/4 hex-soc-hd cap

1шт.

7

70998C1

CABLE

SET, ignition cable, includes reg no. 8

1шт.

8

71056C1

WIRE, Serial Range: distributor-coil

1шт.

9

69643C1

NIPPLE, distributor

5шт.

10

70552C1

NIPPLE, coil

1шт.

11

69645C1

SWITCH, hi-temp safety

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

1шт.

454873

BOLT

SCREW, 5/16-18 x 1-3/4 znd hex-hd cap type 8

1шт.

12

D16J

SPARK PLUG

PLUG, spark, Champion

4шт.

12

C86

PLUG, spark, AC

4шт.

13

71714C1

WIRE, Serial Range: coil-distributor

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE, coil to hi-temp safety switch, not serviced separately

1шт.

Выбрано товаров: 21
