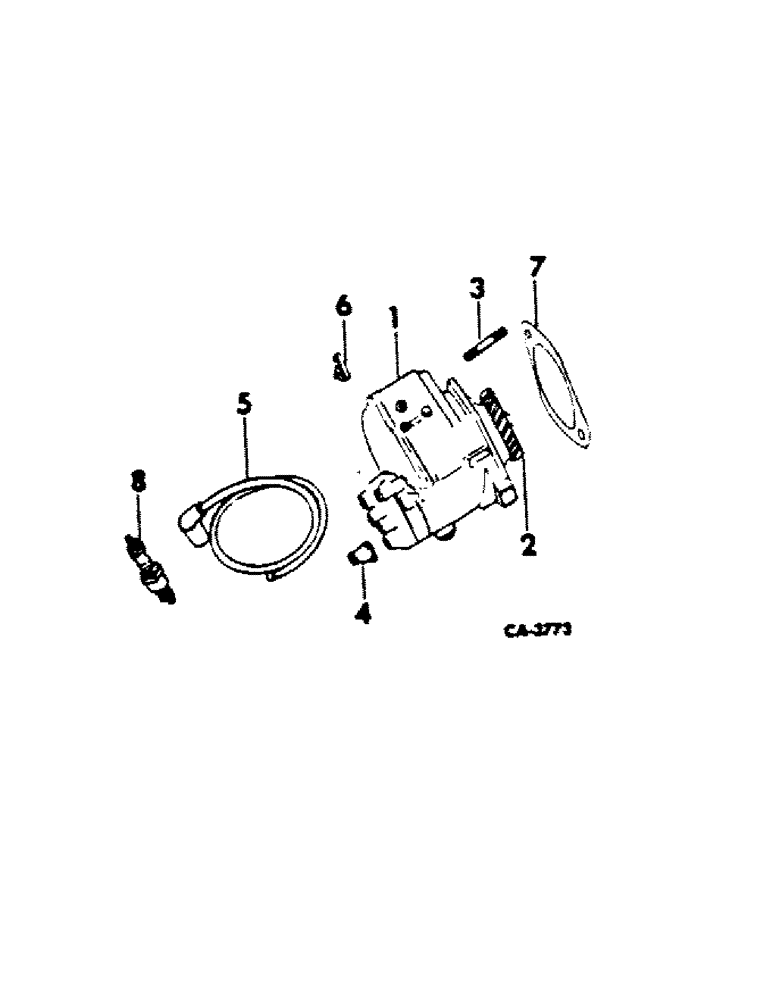

Запчасти Case IH DG4D (K-16) - MAGNETO, SPARK PLUGS AND CABLES, 3200A LOADERS

1

70028C91

MAGNETO ASSY

1шт.

120369

NUT,3/8"-24, G5

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 znd hex-hd cap

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

69027C1

GEAR, magneto

1шт.

3

69664C1

STUD, magneto mtg

1шт.

4

69643C1

NIPPLE, magneto

4шт.

5

69644C1

SET, ignition cable

1шт.

6

69645C1

SWITCH, hi-temp safety

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

1шт.

454873

BOLT

SCREW, 5/16-18 x 1-3/4 znd hex-hd cap type 8

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET, magneto, not serviced separately, order gasket package

1шт.

8

D16J

SPARK PLUG

PLUG, spark, Champion

4шт.

8

C86

PLUG, spark, AC

4шт.

70029C91

KIT

PACKAGE, points and condenser

1шт.

70030C91

PACKAGE, magneto overhaul

1шт.
