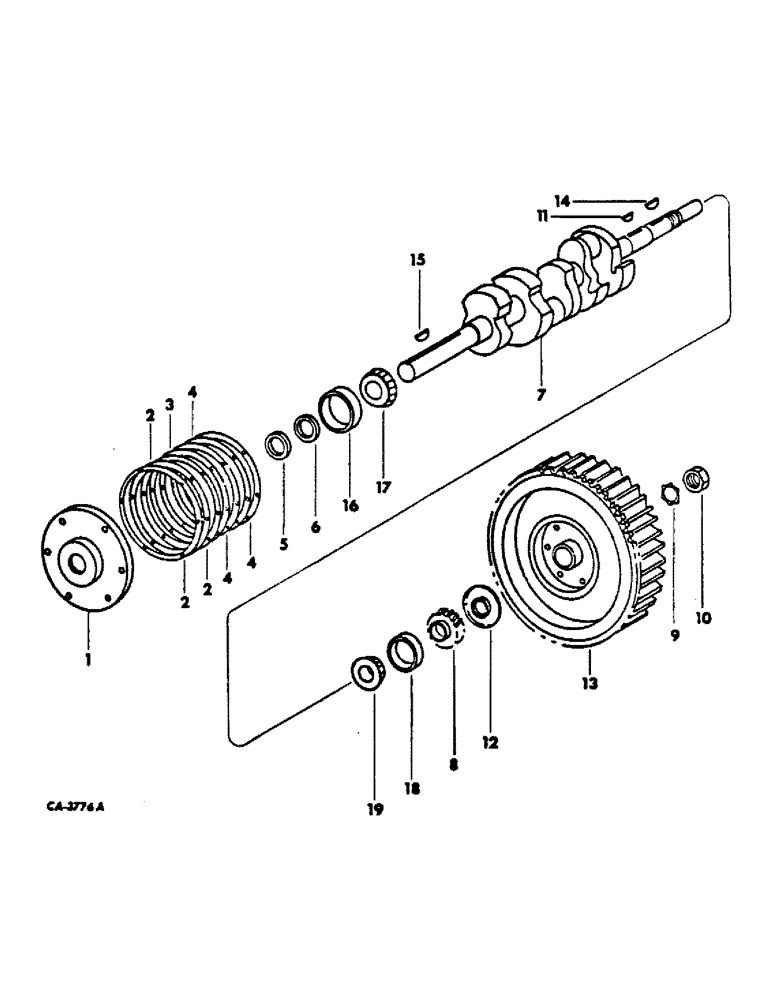

Запчасти Case IH DG4D (K-13) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

69018C91

PLATE ASSY, main bearing, 3200A loaders, consists of (1) plate (NSS), (1) seal 69634C1, (1) retainer 69635C1

1шт.

1

70993C91

PLATE ASSY, main bearing, 3200B loaders, consists of (1) plate (NSS), (1) seal

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET, bearing plate, .006, not serviced separately, order gasket package

3шт.

3

69492C1

SHIM, main bearing plate, .013

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET, bearing plate, .003, not serviced separately, order gasket package

3шт.

5

69634C1

SEAL, cork oil, 3200A loaders

1шт.

6

69635C1

RETAINER, oil seal, 3200A loaders

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap type 8

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

69023C91

CRANKSHAFT ASSY, 3200A loaders, consists of (1) crankshaft (NSS), (1) cone 69024C1, (1) cone 853755R91, (1) cup 69545C1, (1) cone 10218V, (1) cup 20659DA, (1) key 124548

1шт.

7

70997C91

CRANKSHAFT ASSY, 3200B loaders, consists of (1) crankshaft (NSS), (1) gear 69024C1, (1) cone 853755R91, (1) cup 69545C1, (1) cone 10218V, (1) cup 20659DA, (1) key 124548

1шт.

8

69024C1

GEAR, crankshaft

1шт.

9

69642C1

LOCKWASHER, flywheel

1шт.

10

70027C1

NUT, flywheel

1шт.

11

124548

WOODRUFF KEY,#8, 5/32" x 3/4", HT

KEY, 5/2 x 3/4 Woodruff 8

1шт.

12

69641C1

SLINGER, crankshaft oil

1шт.

13

69025C91

FLYWHEEL, w/ring gear, assy

1шт.

14

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 Woodruff 23

1шт.

15

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

3200B loaders #18, 1/4" x 1 1/8", HT

1шт.

16

69545C1

BEARING, cup

1шт.

17

853755R91

BEARING ASSY, cone

1шт.

18

20659DA

CUP ASSY.

BEARING, cup

1шт.

19

10218V

BEARING ASSY, cone

1шт.
