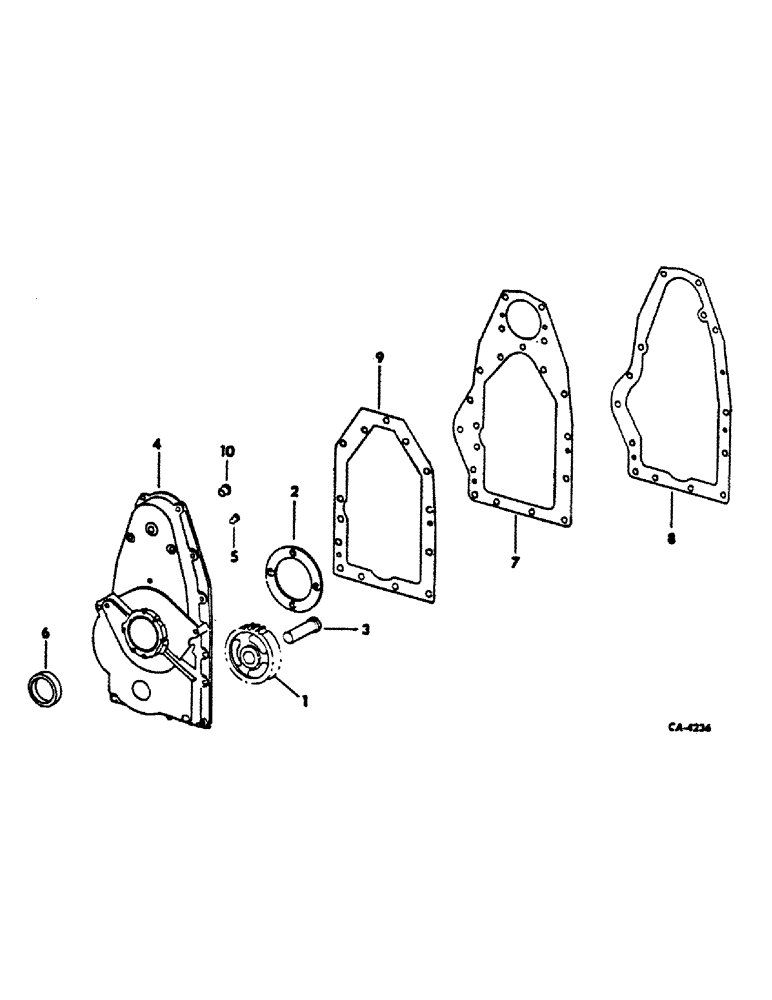

Запчасти Case IH DG4D (K-12) - CRANKCASE, FRONT COVER AND IDLER GEAR, 3200B LOADERS

1

69017C1

FILTER

GEAR, idler

1шт.

2

69491C1

PLATE, flywheel end brg

1шт.

25938R1

SCREW, 5/16-18 x 3/4 cad slt-flt-hd mach

4шт.

134512

LATCH,8.28mm ID x 15.21mm OD

5/16 znd csk tooth lock

4шт.

3

69629C1

STUD, idler

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16-18 x 3/8 zn hex-soc-hs cup point

1шт.

4

70994C1

COVER ASSY, gear, consists of (1) cover (NSS), (1) button 69470C1, (1) seal 69500C1, (1) bushing 533010R1

1шт.

70540C1

PIN, dowel

2шт.

5

69470C1

BUTTON, camshaft thrust

1шт.

6

69500C1

SEAL, oil

1шт.

7

SPACER, gear cover, part number not available at time of printing

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18-1 znd hex-hd cap

1шт.

115308

WASHER,.344" x 11/16" x .065"

11/32 x 11/16 x .051 CDP

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

NSS

NOT SOLD SEPARAT

GASKET, gear cover, not serviced separately, order gasket package

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, crankcase, not serviced separately, order gasket package

1шт.

10

533010R1

BUSHING

1шт.
