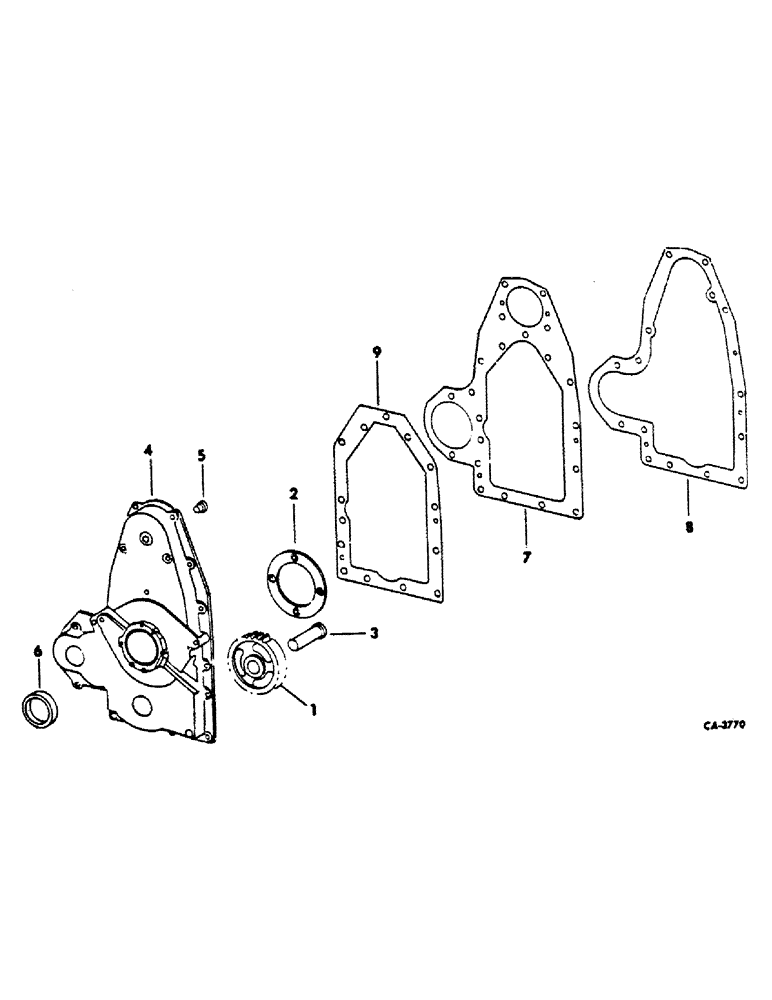

Запчасти Case IH DG4D (K-11) - CRANKCASE, FRONT COVER AND IDLE GEAR, 3200A LOADERS

1

69017C1

FILTER

GEAR, idler

1шт.

2

69491C1

PLATE, flywheel end brg

1шт.

25938R1

SCREW, 5/16-18 x 3/4 cad slt-flt-hd mach

4шт.

134512

LATCH,8.28mm ID x 15.21mm OD

5/16 znd csk tooth lock

4шт.

3

69629C1

STUD, idler

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16-18 x 3/8 zn hex-soc-hd cup point

1шт.

4

69022C91

COVER ASSY, gear, consists of (1) cover (NSS), (1) button 69470C1, (1) seal 69500C1, (1) shaft 69651C1, (1) plug 20972R1

1шт.

5

69470C1

BUTTON, camshaft thrust

1шт.

6

69500C1

SEAL, oil

1шт.

7

69501C1

SPACER, gear cover

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

NSS

NOT SOLD SEPARAT

GASKET, gear cover, not serviced separately, order gasket package

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, crankcase, not serviced separately, order gasket package

1шт.
