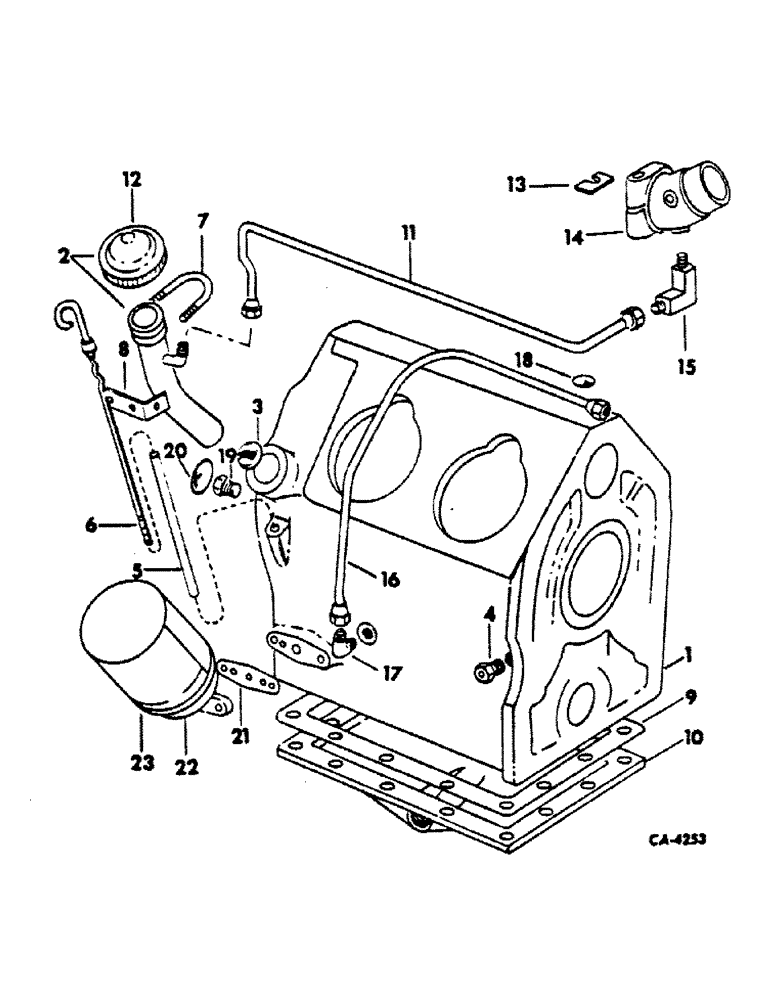

Запчасти Case IH DG4D (K-09) - CRANKCASE AND RELATED PARTS, 3200B LOADERS

1

69015C91

CRANKCASE ASSY

1шт.

For service replacement on 3200B loaders, also order oil filler tube and cap assy, 70995C1 which replaces one furnished with crankcase assy, consists of (1) tube & cap 69016C91, (12) stud 69487C1, (1) screw 69489C1, (4) nozzle 69490C1, (1) tube 69626C1, (1) gauge 69627C1, (2) plug 172529, (1) plug 172570, (2) screw 180079

1шт.

2

70995C1

TUBE AND CAP, oil filler

1шт.

3

69489C1

SCREEN, oil filler

1шт.

4

69490C1

NOZZLE, oil spray

4шт.

5

69626C1

TUBE, dipstick 0.375" OD, 11.187" Length

1шт.

6

69627C1

GAUGE, oil level

1шт.

7

70025C1

U-BOLT, oil filler tube

1шт.

8

69628C1

BRACKET, oil filler tube support

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 znd

2шт.

26093R1

SCREW, 1/4-20 x 1 PHC slt pan-hd tap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, crankcase bottom cover, not serviced separately, order gasket package

1шт.

10

69502C1

PLATE, crankcase bottom cover

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

11

70996C1

TUBE ASSY, breather

1шт.

12

70321C1

CAP

oil filler

1шт.

13

69504C1

GASKET, air cleaner bracket

1шт.

14

70545C1

BRACKET, air, Serial Range: cleaner-carburetor

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 C-Z auto sq-hd pipe

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

15

70026C1

ELBOW ASSY, breather

1шт.

16

TUBE, crankcase to governor, part number not available at time of printing

1шт.

17

69505C1

ELBOW, oil line

1шт.

18

172529

PLUG

5/8 expansion

2шт.

19

69488C1

PLUG, 7/16-14

4шт.

20

172570

PLUG,Exp, 1 3/8"

1-3/8 expansion

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

21

NSS

NOT SOLD SEPARAT

GASKET, oil filter mounting, not serviced separately, order gasket package

1шт.

22

70122C1

BASE ASSY, oil filter

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

70121C1

KIT

PACKAGE, oil filter cartridge, consists of (4) gasket (NSS), (4) cartridge (NSS)

1шт.

71602C1

KIT, tilt angle breather, used to reduce engine smoking when operating on inclines, consists of (1) breather cap (NSS), (1) washer (NSS), (1) gasket (NSS), (1) plate, valve tappet inspection, no. 4 cylinder (NSS), (1) capscrew (NSS)

1шт.
