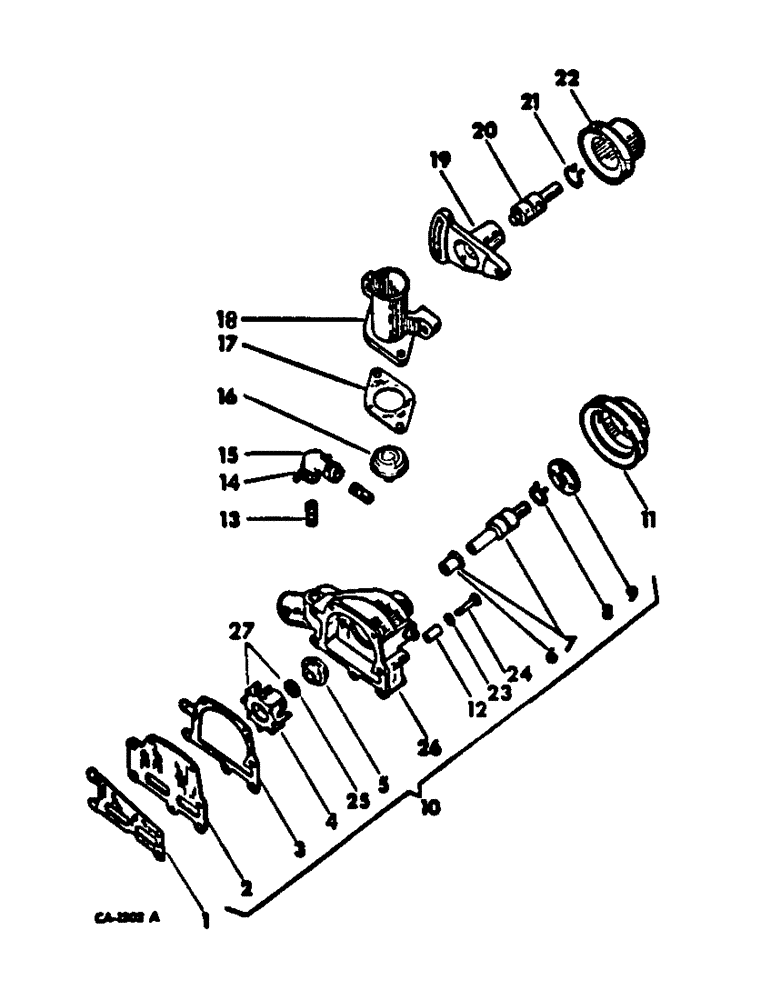

Запчасти Case IH C-301 (E-08) - THERMOSTAT AND WATER PUMP

1

69676R1

GASKET

GASKET, water pump

1шт.

2

69675R1

PLATE

PLATE, water pump

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW, 1/4-20 x 1/2 slt-rd-hd mach

3шт.

3

69674R1

GASKET

GASKET, water pump plate

1шт.

4

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, also order water pump seal, 73296R93 and seat 684432C1

1шт.

5

73296R93

SEAL

SEAL, water pump

1шт.

6

71351R1

SLINGER

SLINGER, water pump, used with water pump 601816C92

1шт.

6

151207R1

SLINGER

SLINGER, water pump, used with water pump 395402R96 and 534270R91

1шт.

7

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT AND BEARING W/SLINGER ASSY, water pump, used with water pump 601816C92

1шт.

7

403501R91

BEARING

SHAFT AND BEARING W/SLINGER ASSY, water pump, used with water pump 395402R96, and 534270R91

1шт.

8

102069H

RING

RING, retaining, used w/water pump casting number 169204R2

1шт.

8

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , used with water pump casting number 169204R3 1.188", Int, #118

1шт.

9

368501R2

HUB CAP

HUB, pulley, used with water pump 601816C92

1шт.

9

227719R2

HUB, pulley, used with water pump 534270R91

1шт.

Note: Presson Pully Eliminates Need for #9 Hub.

1шт.

10

601816C92

PUMP

PUMP ASSEMBLY, water, all machines except 616 and 622 cotton pickers and 715 combines with engine serial no. 14133 and above, c

1шт.

Consists of (1) body (NSS), (3) plug 438159, (1) plug 444660, (1) gasket 69674R1, (1) slinger 71351R1, (1) plug 444786, (1) hub 368501R2, (1) impeller 387931R1, (1) plate 69675R1, (1) seal 73296R93, (1) seat 684432C1, (3) screw 113955, (1) ring 327316R1, (1) shaft and brg assy 376602R91

1шт.

10

749170C91

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

1928129C1

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe

1шт.

10

534270R91

PUMP

PUMP ASSY, water, 715 combines with engine serial no. 14133 and above

1шт.

Ref: #10 With Water Pump 534270R91 Use P/N 461260C1 Hub (8 Holes) 6-June-96

1шт.

Consists of (1) slinger 151207R1, (1) plug 445673, (1) plug 438159, (1) impeller 387931R1, (1) seal 73296R93, (1) seat 684432C1, (1) shaft and brg assy 403501R91, (1) plate 69675R1, (1) plate 69675R1, (3) screw 113955, (1) gasket 69674R1

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

395402R96

PUMP

PUMP ASSEMBLY, water, 616 and 622 cotton pickers

1шт.

Consists of (1) washer 259207R1, (1) body (NSS), (1) screw 186283, (1) spacer 371108R1, (1) impeller 387931R1, (1) seal 73296R93, (1) seat 684432C1, (1) shaft and brg assy 403501R91, (1) retainer 102069H, (1) pulley 372724R1, (1) plate 69675R1, (3) screw 113955, (1) gasket 69674R1

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 automotive sq-hd pipe, LP gas

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

11

395814R1

PULLEY

PULLEY, water pump, used with water pump 601816C92, optional w/395815R2

1шт.

11

395815R2

PULLEY

PULLEY, water pump, used with water pump 601816C92, optional w/395814R1

1шт.

372724R1

PULLEY

USED WITH WATER PUMP 395402R96, used with water pump 395402R94

1шт.

11

151523R2

PULLEY

PULLEY, fan and water pump, used with water pump 534270R91

1шт.

12

371108R1

SPACER,3/8" Pipe x .844"

SPACER, alternator brace, used with water pump 395402R96

1шт.

13

169193R1

PIPE

NIPPLE, water by-pass, gasoline

2шт.

14

240369R91

SPARE PART CLAMP, hose, gasoline

2шт.

15

169192R1

HOSE

ELBOW, water by-pass, gasoline

1шт.

16

108120R92

THERMOSTAT

THERMOSTAT, 167-172 degree opening

1шт.

17

368505R1

GASKET

GASKET, water outlet

1шт.

18

368504R1

OUTLET

OUTLET, water, all machines except 616 and 622 cotton pickers

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

19

368508R1

ADJUSTER

HEIGHT ADJUSTER, fan pulley, all machines except 453, 715 combines

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

WASHER, 1/2 x 1-1/4 x .083

2шт.

20

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

SHAFT AND BEARING ASSEMBLY, all machines except 453 and 715 combines

1шт.

21

395816R1

RING

RING, retaining, used w/water pump casting number 169204R2

1шт.

21

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , used with water pump casting number 169204R3 1.188", Int, #118

1шт.

22

378609R1

PULLEY

PULLEY, fan, 856 and 2856 tractors

1шт.

22

406605R1

SPARE PART PULLEY, fan, 826 and 2826 tractors

1шт.

23

259207R1

WASHER

WASHER, flat, used with water pump 395402R94

1шт.

24

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap, used with water pump 395402R94

1шт.

25

265164C91

PACKING RING

SEAT, water pump, optional w/684432C1

1шт.

25

684432C1

SEAT/SLOT

SEAT, water pump, optional w/265164C91

1шт.

26

BODY ASSY, water pump, order pump assy, used with water pump 601816C92

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 C1 auto sq-hd pipe

2шт.

27

PACKAGE, water pump seal, furnish seat 684432C1 and seal assy 73296R93

1шт.

687644C91

SEAL ASSY, water pump, optional w/73296R93

1шт.

73296R93

SEAL

SEAL ASSY, water pump, optional w/687644C91

1шт.

374544R94

KIT

PACKAGE, water pump service, used with water pump 601816C92, and 395402R96

1шт.

534274R91

PACKAGE

PACKAGE, water pump service, used with water pump 534270R91

1шт.
