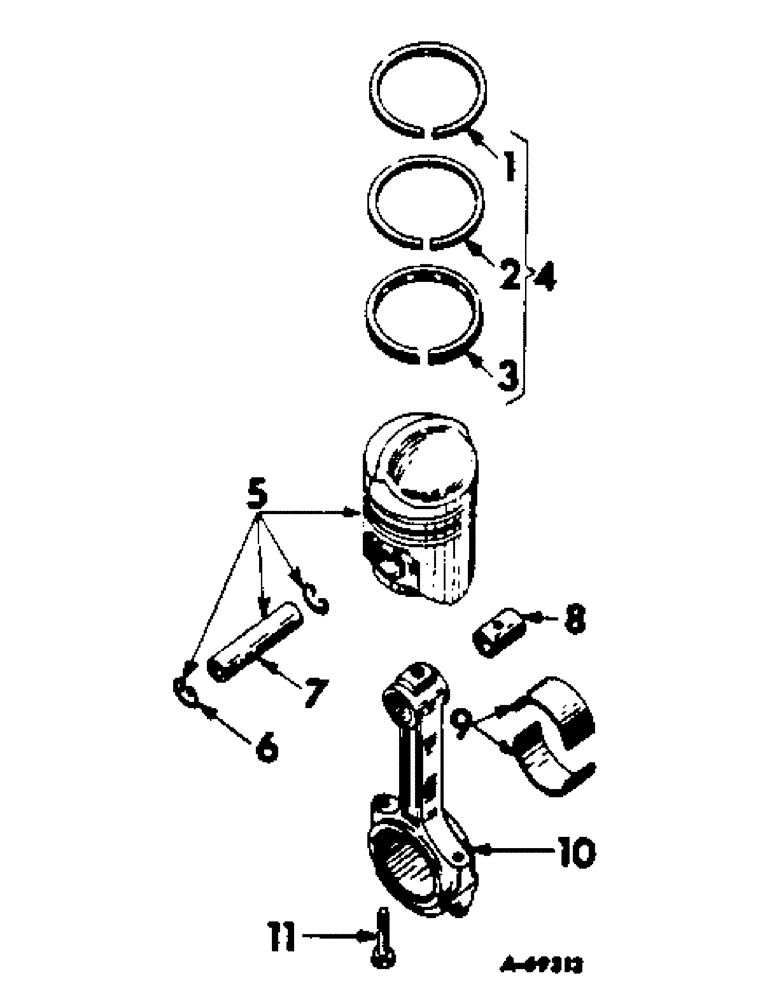

Запчасти Case IH C-301 (E-07) - CONNECTING RODS AND PISTONS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

6шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

6шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring set

6шт.

4

539371R1

PISTON RING SET

RING SET, piston, consists of two compression and one oil regulating ring, std and .010 O/S, all machines except 616 and 622 cotton pickers

6шт.

4

538385R1

PISTON RING SET

RING SET, piston, consists of two compression & one oil regulating ring, std and .010 O/S, 616 and 622 cotton picker

6шт.

4

539372R1

RING, PISTON

RING SET, piston, consists of two compression and one coil regulating ring, .020 O/S

6шт.

4

539373R1

SET

RING SET, piston, consists of two compression and one oil regulating ring, .030 O/S

6шт.

4

539374R1

SET

RING SET, piston, consists of two compression and one oil regulating ring, .040 O/S

6шт.

5

392833R92

PISTON

ASSY, std, gasoline or LP gas

6шт.

5

392834R92

PISTON

ASSY, .010 O/S, gasoline or LP gas

6шт.

5

392835R92

PISTON

ASSY, .020 O/S, gasoline or LP gas

6шт.

5

392836R92

PISTON

ASSY, .030 O/S, gasoline or LP gas

6шт.

5

392837R92

PISTON

ASSY, .040 O/S, gasoline or LP gas

6шт.

5

392843R92

PISTON

ASSY, std, high altitude, used w/Farmall and International 826 and 856 tractors

6шт.

5

392844R92

PISTON ASSY, .010 O/S, high altitude, used w/Farmall and International 826 and 856 tractors

6шт.

5

392845R92

PISTON

ASSY, .020 O/S, high altitude, used w/Farmall and International 826 and 856 tractors

6шт.

5

392846R92

PISTON

ASSY, .030 O/S, high altitude, used w/Farmall and International 826 and 856 tractors

6шт.

5

392847R92

PISTON

ASSY, .040 O/S, high altitude, used w/Farmall and International 826 and 856 tractors

6шт.

6

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

7

278271R1

PISTON PIN

PIN, piston, std

6шт.

7

278326R1

PIN

piston, .005 oversize

6шт.

8

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

6шт.

9

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

9

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

9

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

9

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

10

367406R21

ROD

W/TWO BOLTS, 280318C1 and bushing, 364913R1, connecting

6шт.

11

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod

12шт.
