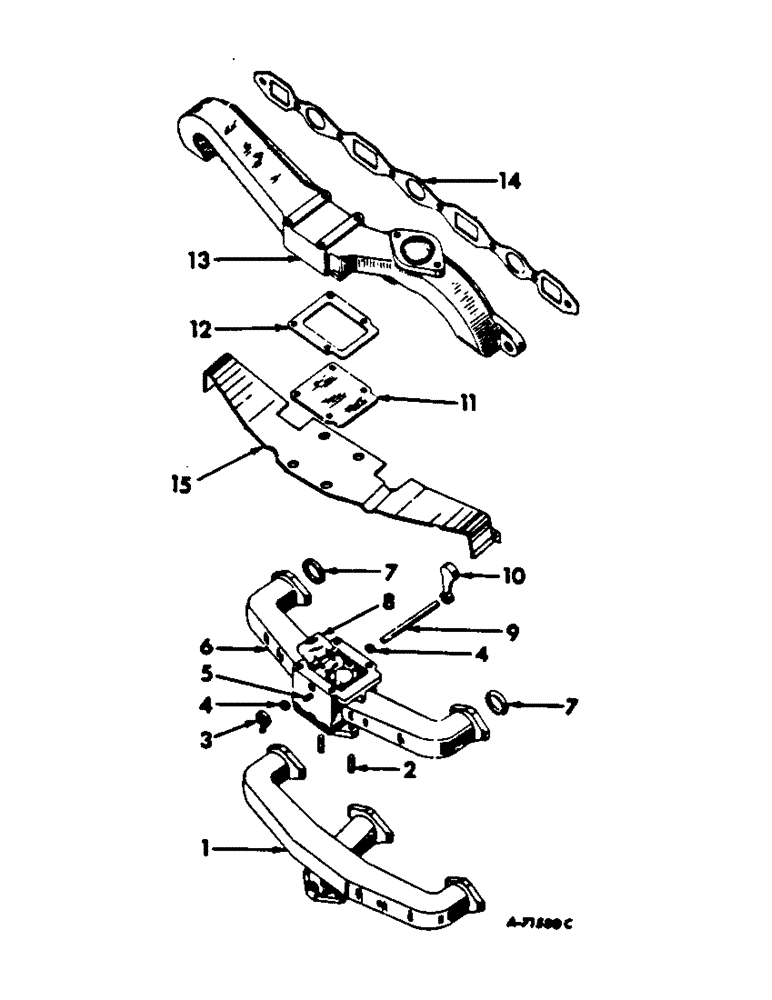

Запчасти Case IH C-301 (E-47) - INTAKE AND EXHAUST SYSTEM

1

383377R11

MANIFOLD ASSY, intake, LP gas

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pipe

1шт.

2

12215D

STUD

carburetor, gasoline

2шт.

103026

NUT,3/8"-24, G5

2шт.

2

351678R1

STUD

carburetor, LP gas

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

37-1316

DOWEL,3/16" x 1"

PIN, 3/16 x 1 dowel (replaces 141159)

1шт.

6

383705R11

MANIFOLD

ASSY, intake, gasoline engines, all machines except 453 and 715 combines

1шт.

Consists of (1) manifold (NSS), (1) plug 444574, (1) pin 141159, (2) bushing 69443R1, (1) shaft 82959R1, (1) valve 85700R1, (1) weight 85699R1, (1) spring 82958R2, (2) stud 12215D

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/8-27 auto-sq-hd pipe

1шт.

6

367261R11

MANIFOLD

ASSY, intake, gasoline engines, 453 and 715 combines, consists of (1) manifold (NSS), (1) plug 444574, (1) pin 141159, (2) bushing 69443R1, (1) shaft 82959R1, (1) valve 85700R1, (1) weight 85699R1, (1) spring 82958R2, (2) stud 12215D

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/8-27 auto sq-hd pipe

1шт.

7

138733R1

CONTROL

PILOT, intake manifold

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

COVER, exhaust manifold, LP gas

1шт.

102635

NUT,3/8"-16, G5

4шт.

114503

JAM NUT,Jam, 3/8"-16, G5

4шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8-16 x 3-3/8 hex-hd cap

4шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

384290R21

MANIFOLD

ASSY, exhaust, all machines except 616 and 622 cotton pickers, 453 and 715 combines

1шт.

13

395411R1

MANIFOLD

ASSY, exhaust, 616 and 622 cotton pickers, 453 and 715 combines

1шт.

399447R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

BOLT, exhaust manifold

2шт.

399446R1

BOLT,Hex, 3/8" - 16 x 1 1/4"

BOLT, exhaust manifold

6шт.

400877R1

WASHER

manifold bolt

8шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

14

400878R1

GASKET

intake and exhaust manifold

1шт.

15

384509R21

SHIELD ASSY, intake manifold heat, LP gas

1шт.
