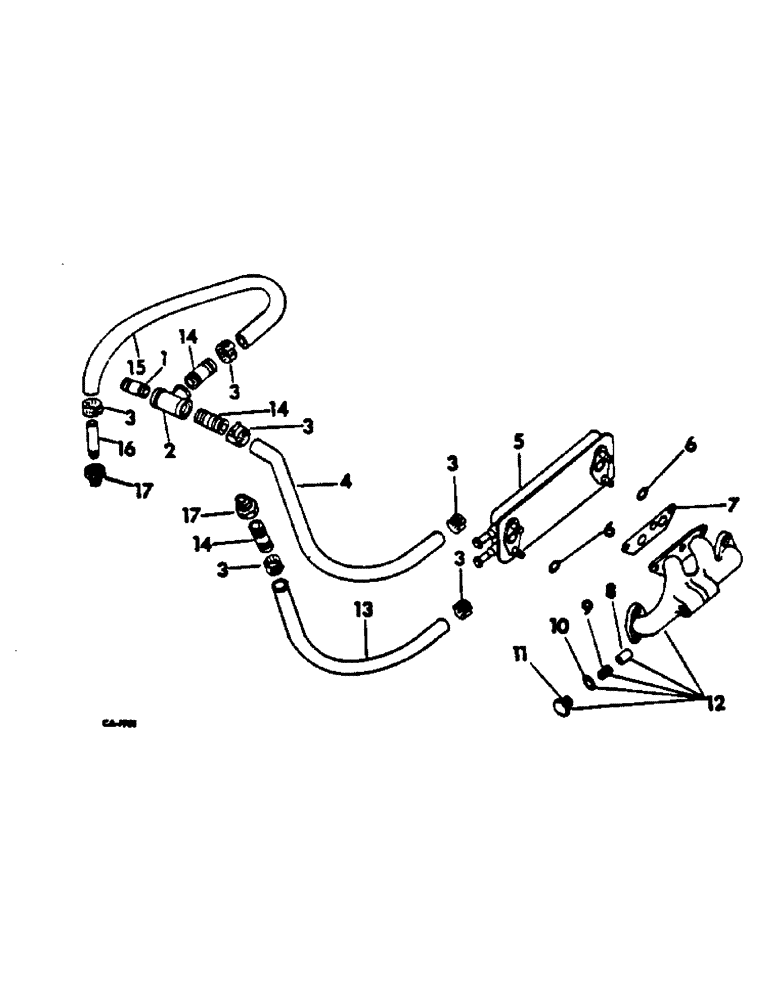

Запчасти Case IH C-301 (E-46) - ENGINE OIL COOLER, 616 AND 622 COTTON PICKERS

1

21031R1

NIPPLE, 3/8 x 3/4 pipe, used w/gasoline engines

1шт.

2

120280

TEE,3/8" NPT, Fem

3/8 pipe, used w/gasoline engines

1шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose, 4 used w/LP gas engines, 6 used w/gasoline engies

1шт.

4

HOSE, oil cooler, use 28 in. of 5/8 ID heater hose from a bulk roll marked 364359C1

1шт.

5

279212R91

COOLER ASSY.

COOLER, engine oil, optional with 338905R91

1шт.

5

338905R91

COOLER

engine oil, optional with 279212R91

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, oil cooler to manifold

2шт.

7

349038R1

GASKET

oil cooler manifold

1шт.

8

251400R1

VALVE

oil cooler relief

1шт.

9

279163R1

SPRING

oil cooler relief valve

1шт.

10

251403R1

GASKET

relief valve plug

1шт.

11

251402R1

PLUG

relief valve

1шт.

12

279160R11

MANIFOLD ASSY, engine oil cooler

1шт.

13

HOSE, oil cooler, used w/gasoline engines, use 28 in. of 5/8 ID heater hose from a bulk roll marked 364359C1

1шт.

13

HOSE, oil cooler, used w/LP gas engines, use 44 in. of 5/8 ID heater hose from a bulk roll marked 364359C1

1шт.

14

169193R1

PIPE

NIPPLE, oil cooler hose, 1 used w/LP gas engines, 3 used w/ gasoline engines

1шт.

15

HOSE, by-pass, used w/gasoline engines, use 16 in. of 5/8 ID heater hose from a bulk roll marked 364359C1

1шт.

16

397853R2

NIPPLE, 3/8 x 2 pipe

1шт.

17

144046

REDUCER FITTING,1/2" NPT Male x 3/8" NPT Fem

ADAPTER, 1/2-3/8 stl reducing pipe

2шт.
