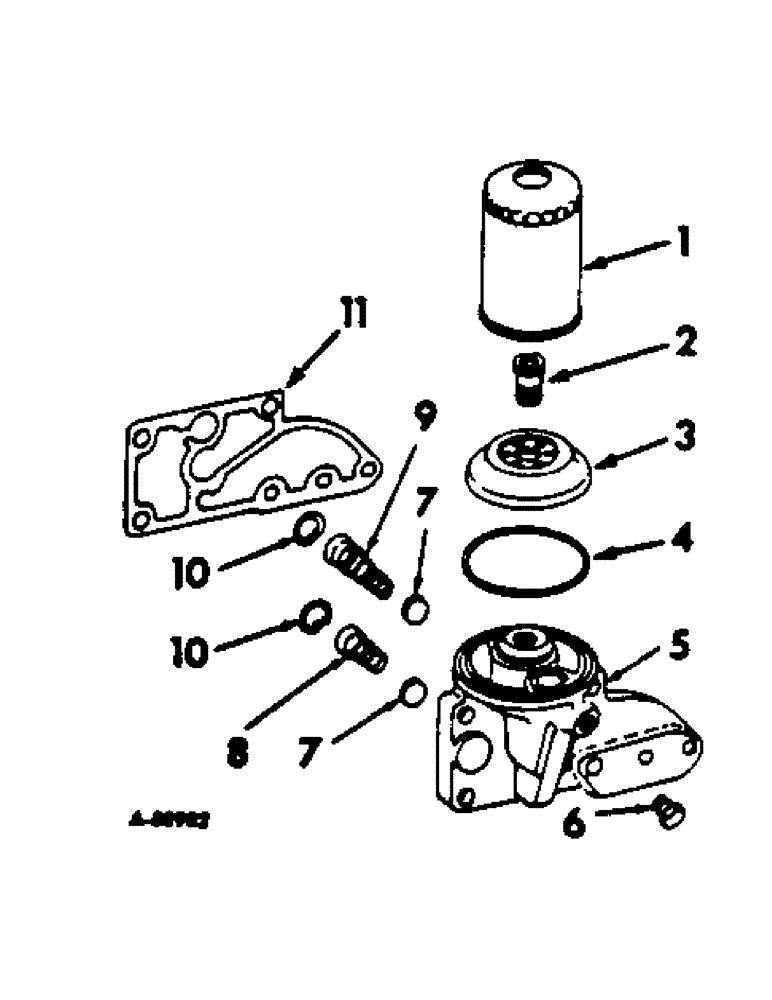

Запчасти Case IH C-301 (E-43) - LUBRICATING OIL FILTER, SPIN-ON TYPE, 616 AND 622 COTTON PICKERS W/O OIL COOLER

397864R91

FILTER

ASSY, oil, less Ref. 11, order filter assy, 534178R91 and gasket 534196R1

1шт.

1

398080R2

ENGINE OIL FILTER

ELEMENT, oil filter, replaces 397868R1

1шт.

2

397867R1

ADAPTER

BOLT, oil filter element adapter

1шт.

3

397866R1

ADAPTER

spin-on oil filter elements

1шт.

4

304854R1

RING

GASKET, oil filter case

1шт.

5

384523R12

BASE

ASSY, oil filter, order filter assy, 534178R91 and gasket 534196R1

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/1L-14 x 1-1/4 hex-hd cap

3шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 1-1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

397299R1

PLUG

filter base

1шт.

7

534180R1

VALVE

oil filter base, replaces 384528R2

2шт.

8

384526R2

VALVE SPRING

SPRING, pressure regulating

1шт.

9

384527R1

SPRING

element by-pass

1шт.

10

303322R1

SNAP RING,1.00", Int, #100

2шт.

11

384537R2

GASKET

oil filter base

1шт.
