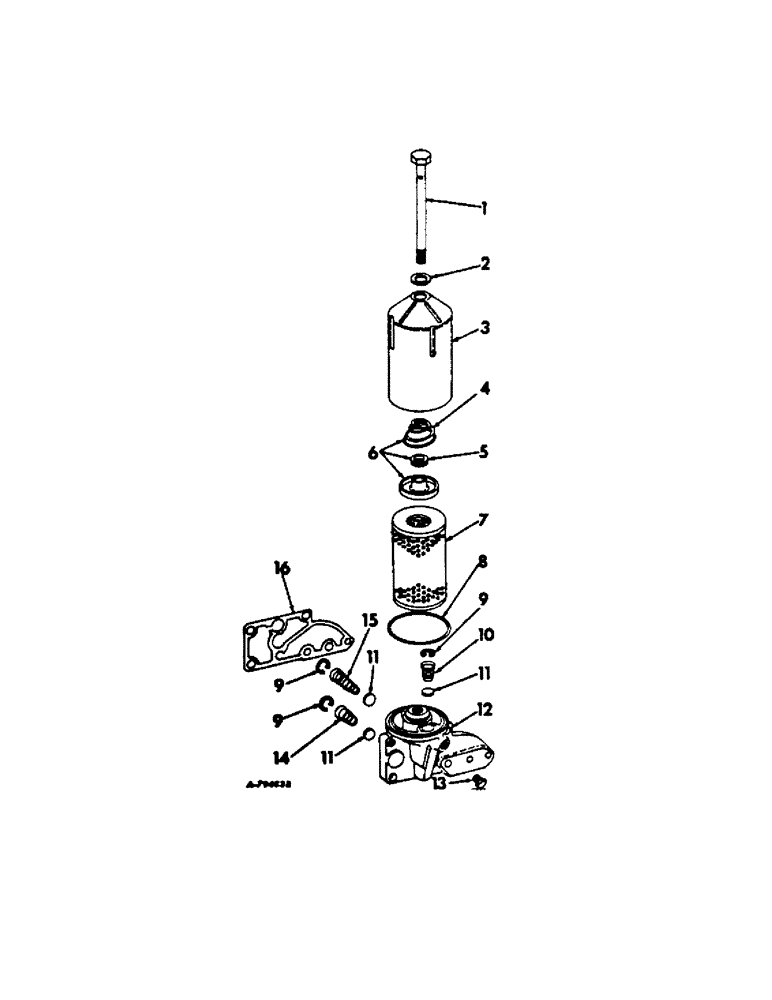

Запчасти Case IH C-301 (E-42[A]) - LUBRICATING OIL FILTER, CARTRIDGE TYPE, 826, 856, 2826 AND 2856 TRACTORS

384522R92

FILTER

ASSY, oil, less Ref. 16, order filter assy, 534178R91 and gasket 534196R1

1шт.

1

384530R11

TUBE ASSY, oil filter center 7.4" Length

1шт.

2

384532R1

GASKET

center tube

1шт.

3

384529R1

CASE

oil filter

1шт.

4

384536R1

SPRING, element hold-down

1шт.

5

384535R1

WASHER

GROMMET, element retaining washer

1шт.

6

384533R91

RETAINER

ASSY, element

1шт.

7

279994R91

ELEMENT

oil filter

1шт.

8

304854R1

RING

GASKET, oil filter case

1шт.

9

303322R1

SNAP RING,1.00", Int, #100

3шт.

10

384525R1

SPRING

check valve

1шт.

11

534180R1

VALVE

oil filter base, replaces 384528R2

3шт.

12

384523R12

BASE

ASSY, oil filter, order filter assy, 534178R91 and gasket, 534196R1

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

397299R1

PLUG

oil filter base

1шт.

14

384526R2

VALVE SPRING

SPRING, pressure regulating

1шт.

15

384527R1

SPRING

element by-pass

1шт.

16

384537R2

GASKET

oil filter base

1шт.

538837R1

PACKAGE, spin-on oil filter conversion, consists of (1) adapter 397866R1, (1) bolt 397867R1, (1) reducing, bushing 538969R1, (1) gasket 304854R1

1шт.
