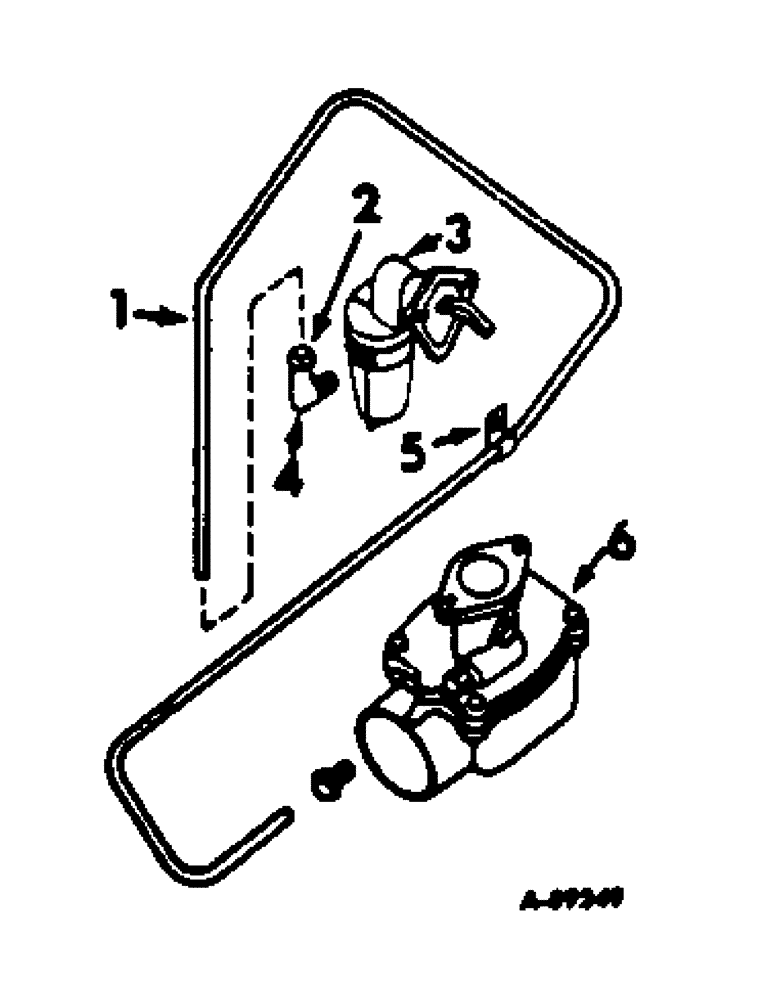

Запчасти Case IH C-301 (E-38) - FUEL PUMP AND CONNECTIONS, GASOLINE ENGINES

1

TUBE, fuel pump to carburetor, use 45 inches of 5/16 OD cdp tubing from a 50 ft. roll marked 995062R1 and 2 nuts 142427

1шт.

2

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flard tube

2шт.

3

84838R94

PUMP

ASSY, fuel, for components see list of parts under fuel pump

1шт.

4

137422

ELBOW

1/8-27 90 deg flared tube

1шт.

5

263555R1

CLIP, fuel pipe

1шт.

16445D

FELT, fuel pipe clip

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

1шт.

6

CARBURETOR, for components see list of parts under details of carburetor

1шт.
