Запчасти Case IH C-301 (E-37) - LP GAS FUEL REGULATOR

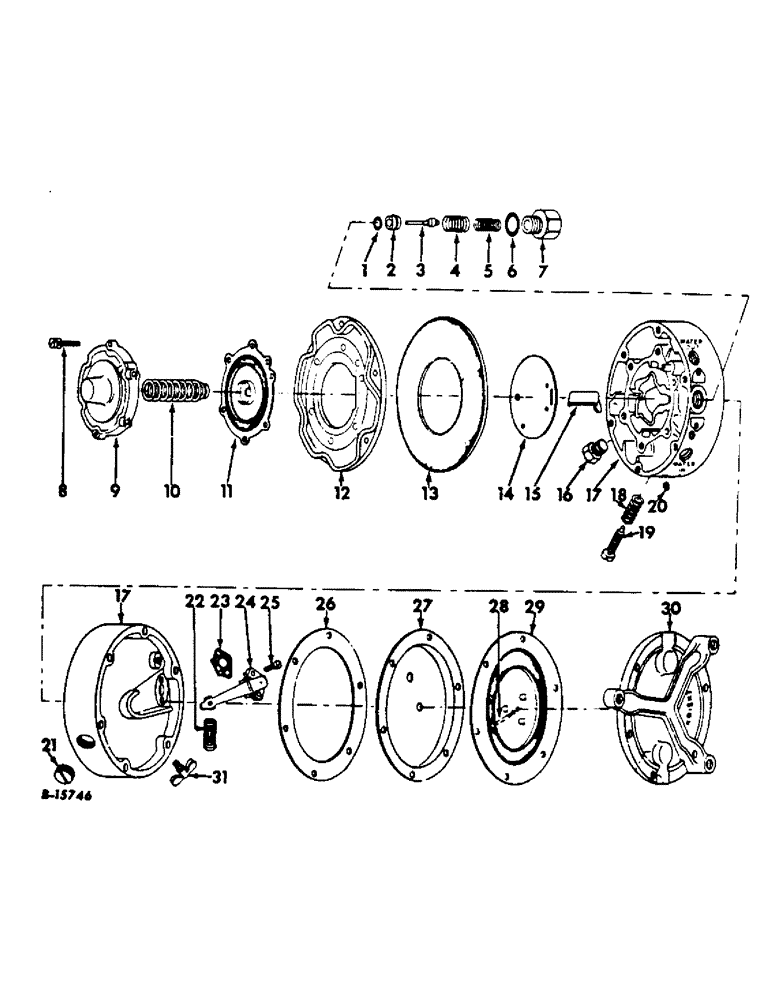

Схема запчастей Case IH C-301 - (E-37) - LP GAS FUEL REGULATOR
19
5
1
15
7
11
20
12
27
8
2
21
29
17
23
26
16
25
18
28
14
6
31
22
30
13
24
10
4
3
9
17

Артикул

Название

Примечание

Количество

392731R92

REGULATOR ASSY, LP gas fuel

1шт.

1

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, High pressure valve seat

1шт.

2

SEAT ASSY, high pressure valve, on orders for seat furnish 545554R91

1шт.

3

VALVE, high pressure, on orders for valve furnish 545554R91

1шт.

4

277356R1

SPRING, high pressure valve seat retainer

1шт.

5

277355R1

SPRING, high pressure valve

1шт.

6

397310R1

GASKET, high pressure valve spring connector

1шт.

7

397309R1

CONNECTOR, high pressure valve spring

1шт.

8

132138

SCREW, 10-32 x 7/8 C-Z slt-fil-hd mach

6шт.

131183

WASHER, no. 10 C-Z light lock

6шт.

9

394668R1

COVER ASSY, vaporized

1шт.

132138

SCREW, 10-32 x 7/8 C-Z slt-fil-hd mach

6шт.

131183

WASHER, no. 10 C-Z light lock

6шт.

10

397303R1

SPRING, high pressure

1шт.

11

277370R91

DIAPHRAGM ASSY, high pressure

1шт.

12

397304R1

COVER, high pressure diaphram

1шт.

174939

SCREW, 10-32 x 9/16 C-Z slt-fil-hd mach

6шт.

131183

WASHER, no. 10 C-Z light lock

6шт.

13

397305R1

GASKET, vaporizer cover

1шт.

14

397306R1

PLATE, vaporizer partition

1шт.

147754

SCREW, vaporizer partition

1шт.

15

397307R1

LEVER, high pressure valve

1шт.

16

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8-27 hd pipe

2шт.

17

NSS

NOT SOLD SEPARAT

BODY ASSY, regulator, not serviced separately, order regulator assy, 392731R92

1шт.

18

14526D

SPRING, idle adjusting screw retainer

1шт.

19

37179D

SCREW, idle adjusting

1шт.

20

397308R1

SCREW, B-bleed, #65

1шт.

21

115712

PLUG,Slotted, 1/2" NPT

1/2 sltd headless

1шт.

22

64420D

SPRING, low pressure valve

1шт.

23

397314R1

GASKET, low pressure valve

1шт.

24

397312R1

VALVE ASSY, low pressure

1шт.

25

397313R1

SCREW, & lock washer, low pressure valve

2шт.

26

359604R1

GASKET, low pressure partition plate

1шт.

27

359603R1

PLATE, low pressure partition

1шт.

28

277366R1

PIN, diaphragm push

1шт.

29

397315R1

DIAPHRAGM & PUSH PIN ASSY, low pressure

1шт.

30

397316R1

PLATE, support

1шт.

132138

SCREW, 10-32 x 7/8 C-Z slt-fil-hd

6шт.

131183

WASHER, no. 10 C-Z light lock

6шт.

31

114981

VALVE

COCK, drain 1/8 pipe thd

1шт.

397317R91

PACKAGE, fuel regulator overhaul

1шт.

545554R91

PACKAGE, high pressure valve and seat

1шт.
